Allen Brothers Size 19 Long Car
Allen Brothers Size 19 Long Car

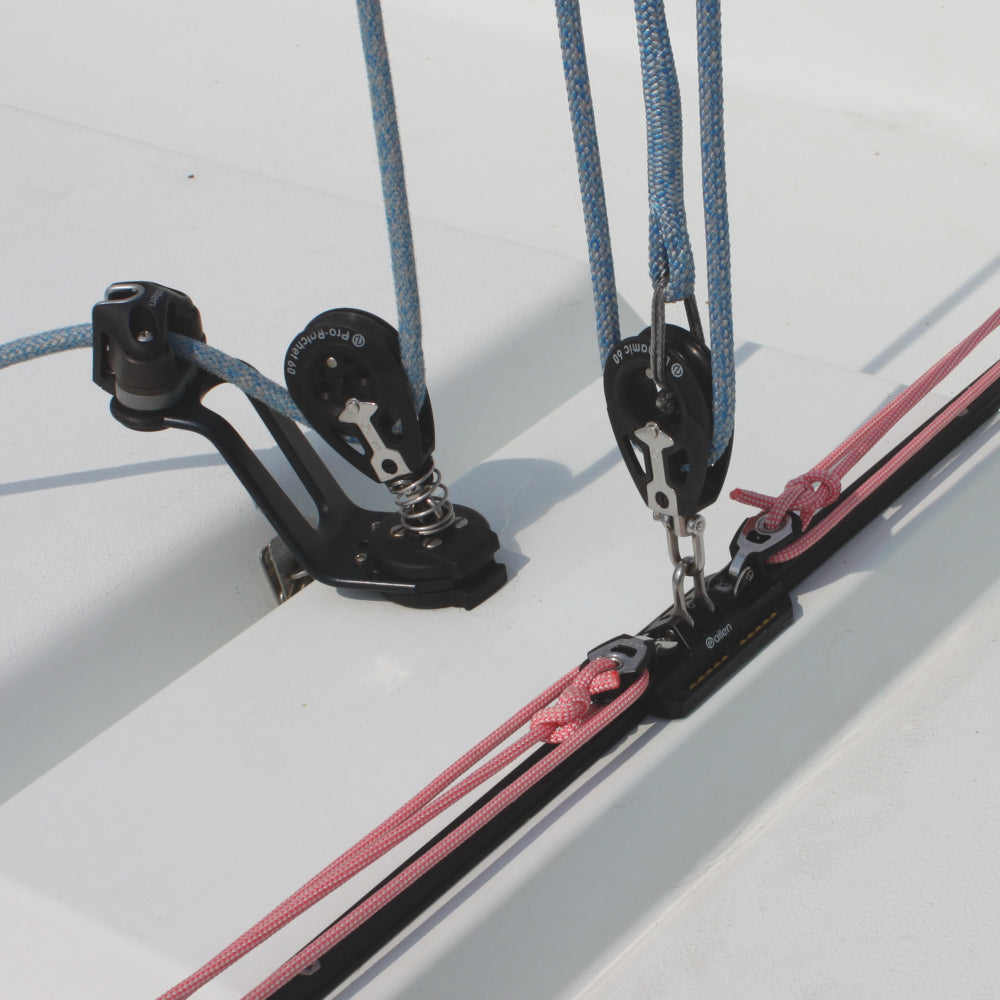

The Size 19 Long Car is designed to handle higher working loads compared to the standard-length version, making it the perfect solution for demanding applications such as keelboat mainsheet or jib sheet systems.
Enhanced Load Distribution
The extended body of the Size 19 Long Car distributes the load across a greater number of recirculating Torlon ball bearings. This improved load distribution reduces stress on individual bearings, allowing the car to roll more smoothly and efficiently, even under heavy loads.
Features
- Removable flip-flop shackle for attachment of blocks or lines.
- Two pre-installed 30mm dynamic cheek blocks to create car control systems.
Maximum Working Load (MWL)
The Maximum Working Load (MWL) represents the highest load at which the traveller car can roll or slide smoothly without causing damage to the bearings. While the car is capable of withstanding higher static loads, it is not advisable to move it under such conditions, as this may compromise the integrity of the bearings.
Technical Description
| Accessories | A2036 |
| Configuration | Car |
| Breaking Load | 1600 kg |
| Height | 50 mm |
| Maximum Work Load | 260 kg |
| Width | 50 mm |
| Length | 153.4 mm |
| Weight | 231 g |
Allen Brothers Size 19 Long Car
The Size 19 Long Car is designed to handle higher working loads compared to the standard-length version, making it the perfect solution for demanding applications such as keelboat mainsheet or jib sheet systems.
Enhanced Load Distribution
The extended body of the Size 19 Long Car distributes the load across a greater number of recirculating Torlon ball bearings. This improved load distribution reduces stress on individual bearings, allowing the car to roll more smoothly and efficiently, even under heavy loads.
Features
- Removable flip-flop shackle for attachment of blocks or lines.
- Two pre-installed 30mm dynamic cheek blocks to create car control systems.
Maximum Working Load (MWL)
The Maximum Working Load (MWL) represents the highest load at which the traveller car can roll or slide smoothly without causing damage to the bearings. While the car is capable of withstanding higher static loads, it is not advisable to move it under such conditions, as this may compromise the integrity of the bearings.
Technical Description
| Accessories | A2036 |
| Configuration | Car |
| Breaking Load | 1600 kg |
| Height | 50 mm |
| Maximum Work Load | 260 kg |
| Width | 50 mm |
| Length | 153.4 mm |
| Weight | 231 g |
