Antal 100mm OPF Single Foot Block
Not available for expedite shipping.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Enjoy free shipping on qualifying orders of $145 or more delivered within the 48 contiguous United States. Alaska, Hawaii, Puerto Rico, and other U.S. territories are excluded.
Delivery for qualifying free-shipping orders takes 8 to 10 business days.
Free shipping does not apply to:
- Orders containing only clearance items
- Customized special orders made to your detailed requirements
- Sails and boats
- Long tracks, spinnaker poles, whisker poles, and large tubes
- Oversized or heavy items, including items that require less-than-truckload (LTL) freight shipping
Standard Shipping
- UPS and FedEx Ground: Delivery usually takes 2 to 5 business days for in-stock orders.
- USPS: Allow an additional 3 business days beyond the standard shipping time.
- Saturday delivery: UPS and FedEx deliver on Saturdays only for overnight shipments sent on Friday. Additional charges may apply.
Oversized Items and Freight Shipping
Oversized items, such as whisker poles, spinnaker poles, and tracks longer than 8 feet, require freight shipping. The estimated shipping cost is $500, depending on the destination.
For freight deliveries, provide a commercial address, such as the marina, yacht club, or boatyard where your sailboat is located. The recipient must sign for the shipment upon delivery.
International Orders
International customers are responsible for all applicable import duties, fees, and taxes.

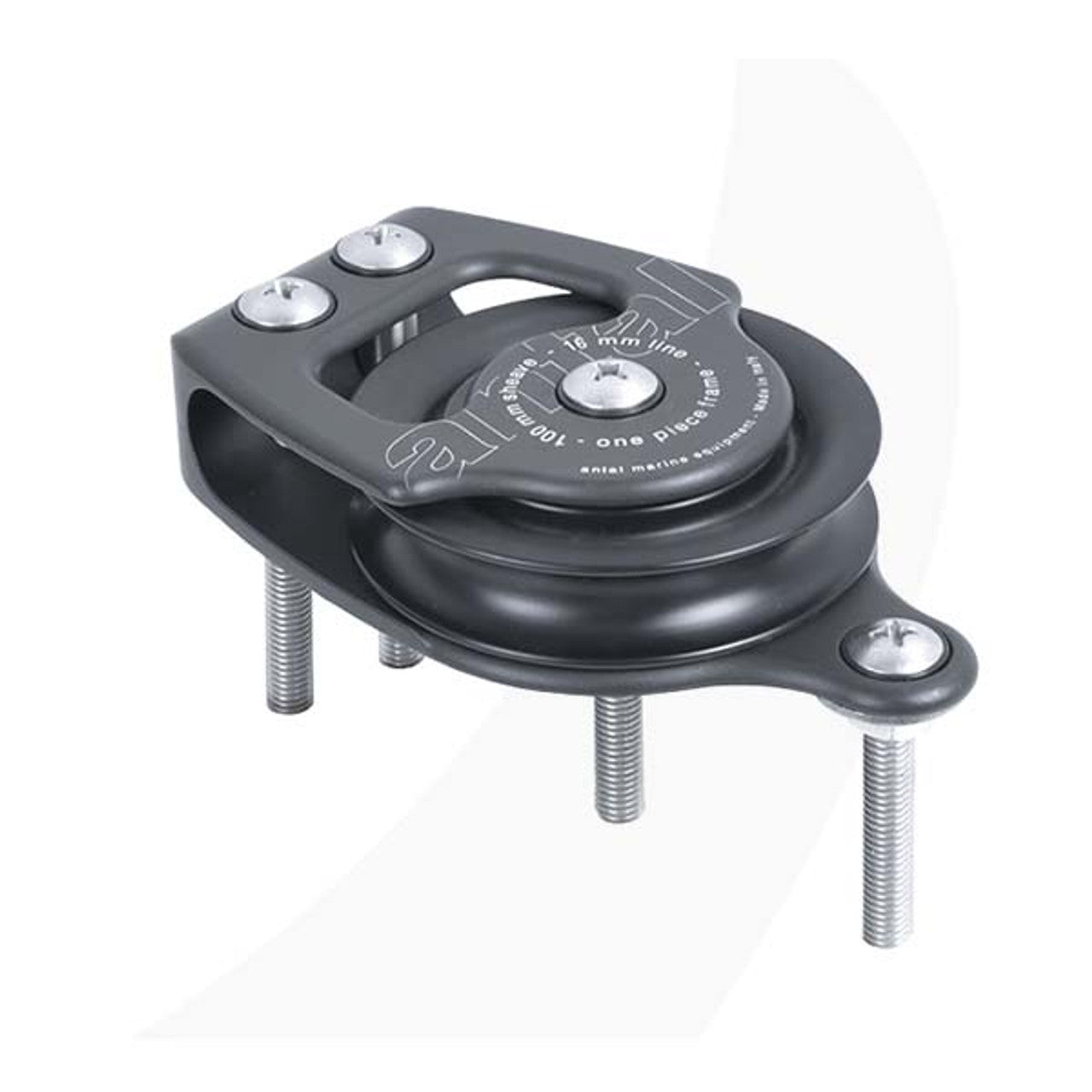

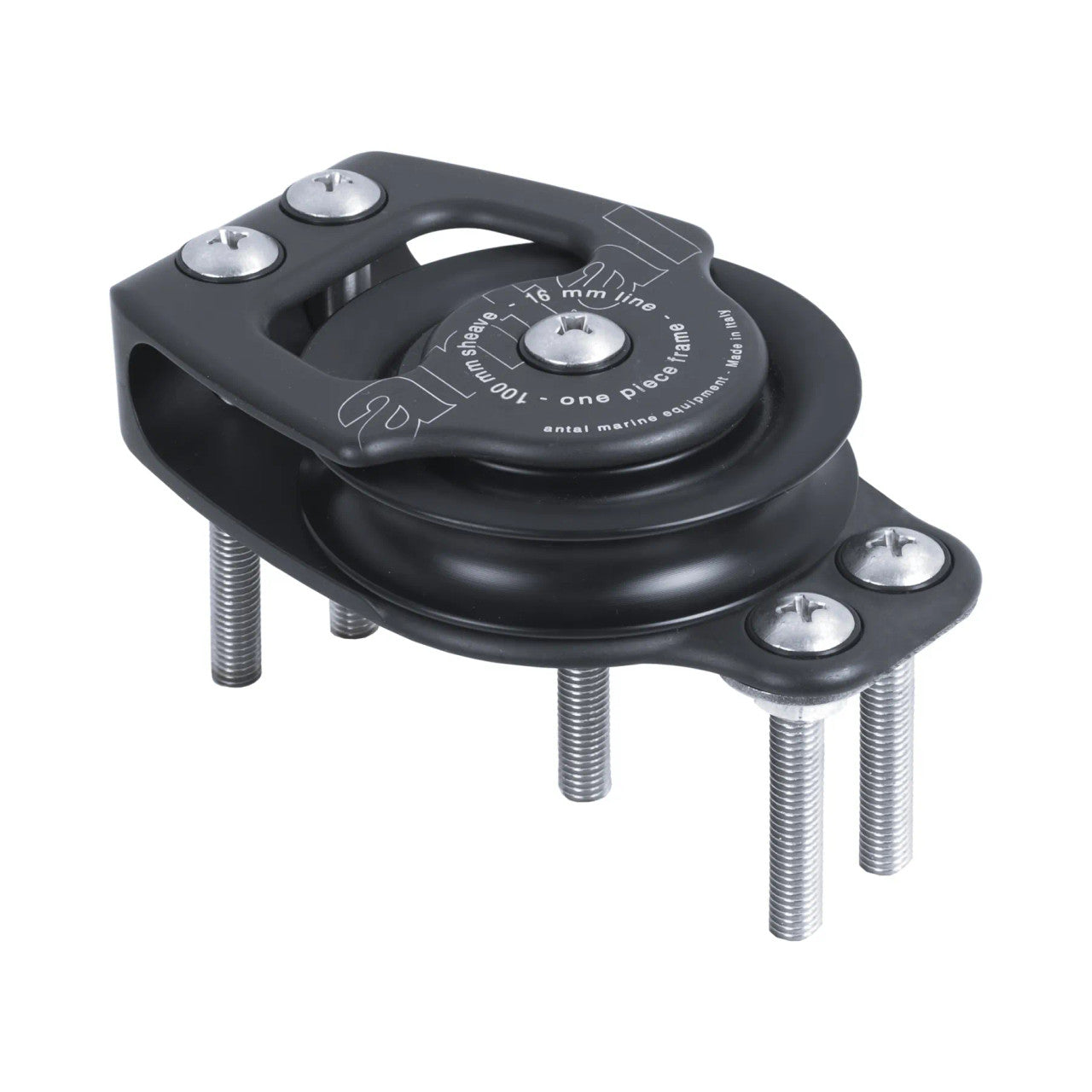

Antal 100mm OPF Single Foot Block
Single foot block, sheave Ø100, SWL 3500 kg
Technical Description
| Length (L) | 162 mm |
| Width (W) | 100 mm |
| Height (H) | 31 mm |
| Ø sheave (D) | 100 mm |
| Side bearing | Delrin balls |
| Radial bearing | Composite Fibre |
| Weight | 0,83 kg |
| Ø max line | 16 mm |
| Material | Aluminum |
| Sheave material | Resin |
| SWL | 3500 kg |
| Fixing screws | 5 x Ø10 mm |
Antal 100mm OPF Single Foot Block
Single foot block, sheave Ø100, SWL 3500 kg
Technical Description
| Length (L) | 162 mm |
| Width (W) | 100 mm |
| Height (H) | 31 mm |
| Ø sheave (D) | 100 mm |
| Side bearing | Delrin balls |
| Radial bearing | Composite Fibre |
| Weight | 0,83 kg |
| Ø max line | 16 mm |
| Material | Aluminum |
| Sheave material | Resin |
| SWL | 3500 kg |
| Fixing screws | 5 x Ø10 mm |
