Antal 47x31 Maxi Track 230 BB Car (4:1), Shackle, Double Control Sh...

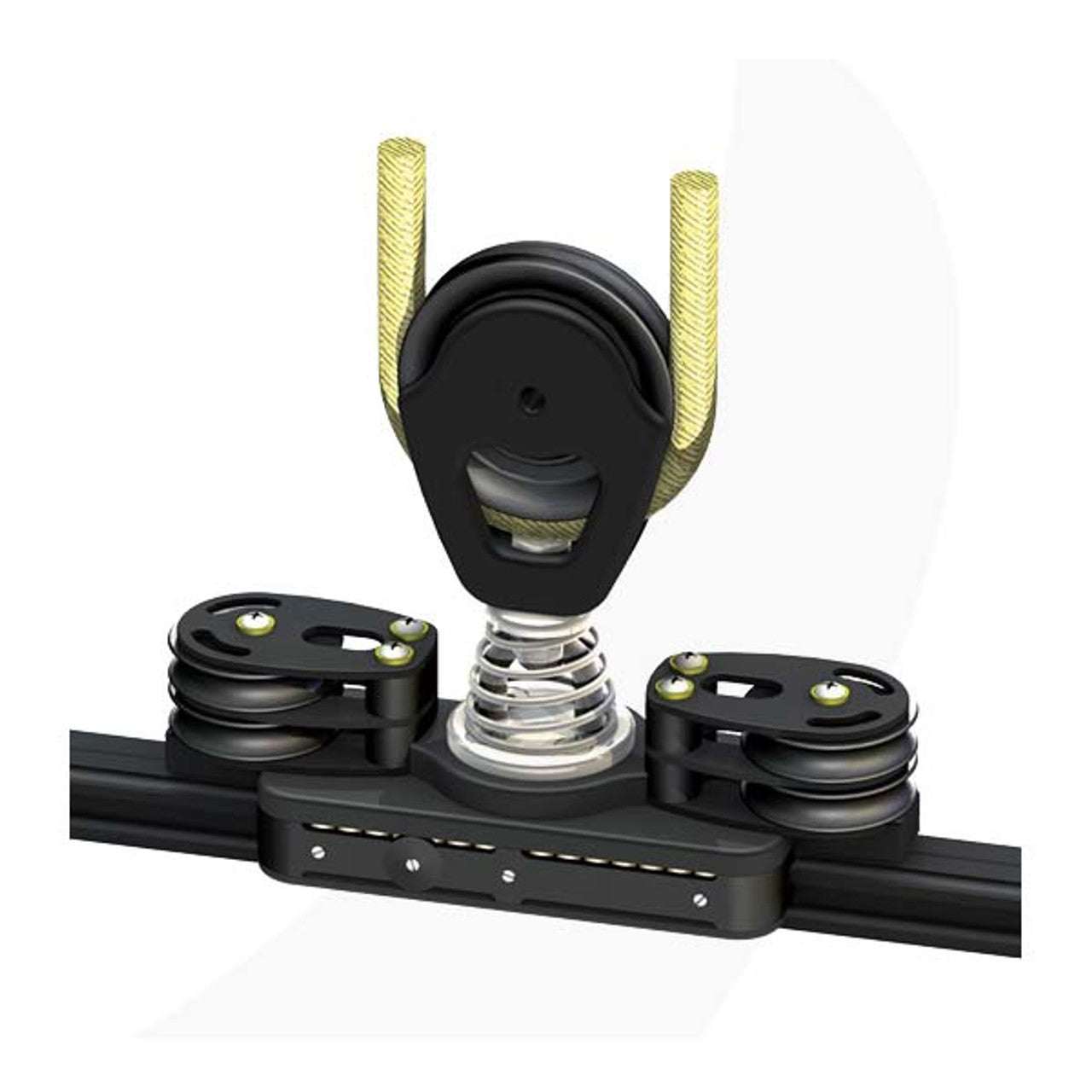

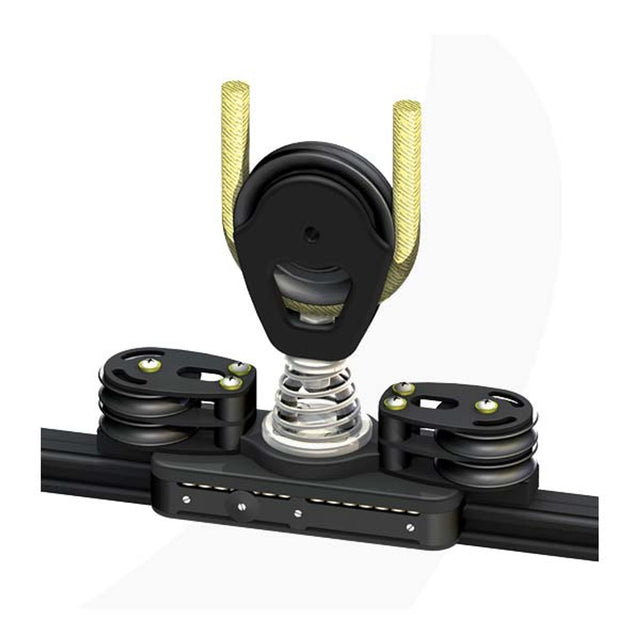

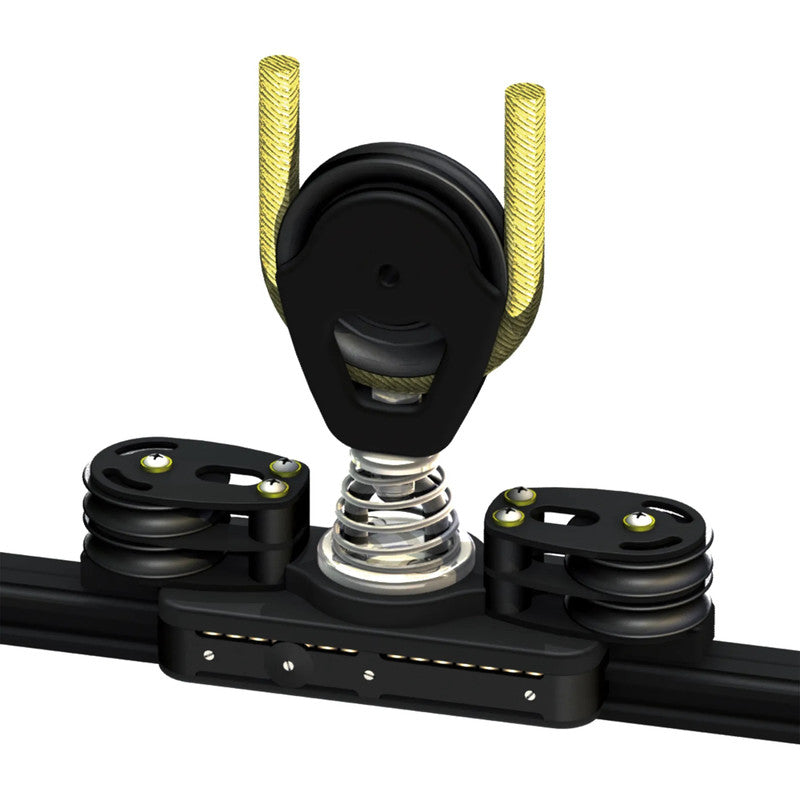

Antal 47x31 Maxi Track 230 BB Car (4:1), Shackle, Double Control Sheaves
Car with 2 sheaves. Ball bearing car in hard black anodized aluminum with four ball circuits: 2 Torlon ball circuits (lower) and 2 Delrin ball circuits (upper). The car will remain on the track even after ball bearing failure (overload). Side windows for easy maintenance and ball bearing cleaning and/or replacement. The car, the track and all components are extruded in high strength alloy and hard black anodized (steel parts: AISI 316). The sheet block is not included.
Technical Description
| Length (L) | 230 mm |
| Width (W) | 107 mm |
| Track dimensions | 47 x 31 mm |
| SWL | 3800 kg |
| Ø control pulley | 75 mm |
| Ø suggested block | 120 mm |
| No. balls | 86 x Torlon + 86 x Delrin |
| M | 333 mm |
