Antal Cam 814 Clutch 8/10
Sale price
$132.60
Regular price
$156.00
Unit price
Antal Cam 814 Clutch 8/10
V-Cam 814, single clutch, for lines Ø8-10.
V-Cam 814 has a box-structure in UV-resistant resin with S.Steel reinforcements, aluminium base, V-Cam and aligning bushing in AISI316.
It can be completely dismantled for simple maintenance and repairing.
Retrieval can be performed with the stopper closed; the operation automatically secures itself in the new position.

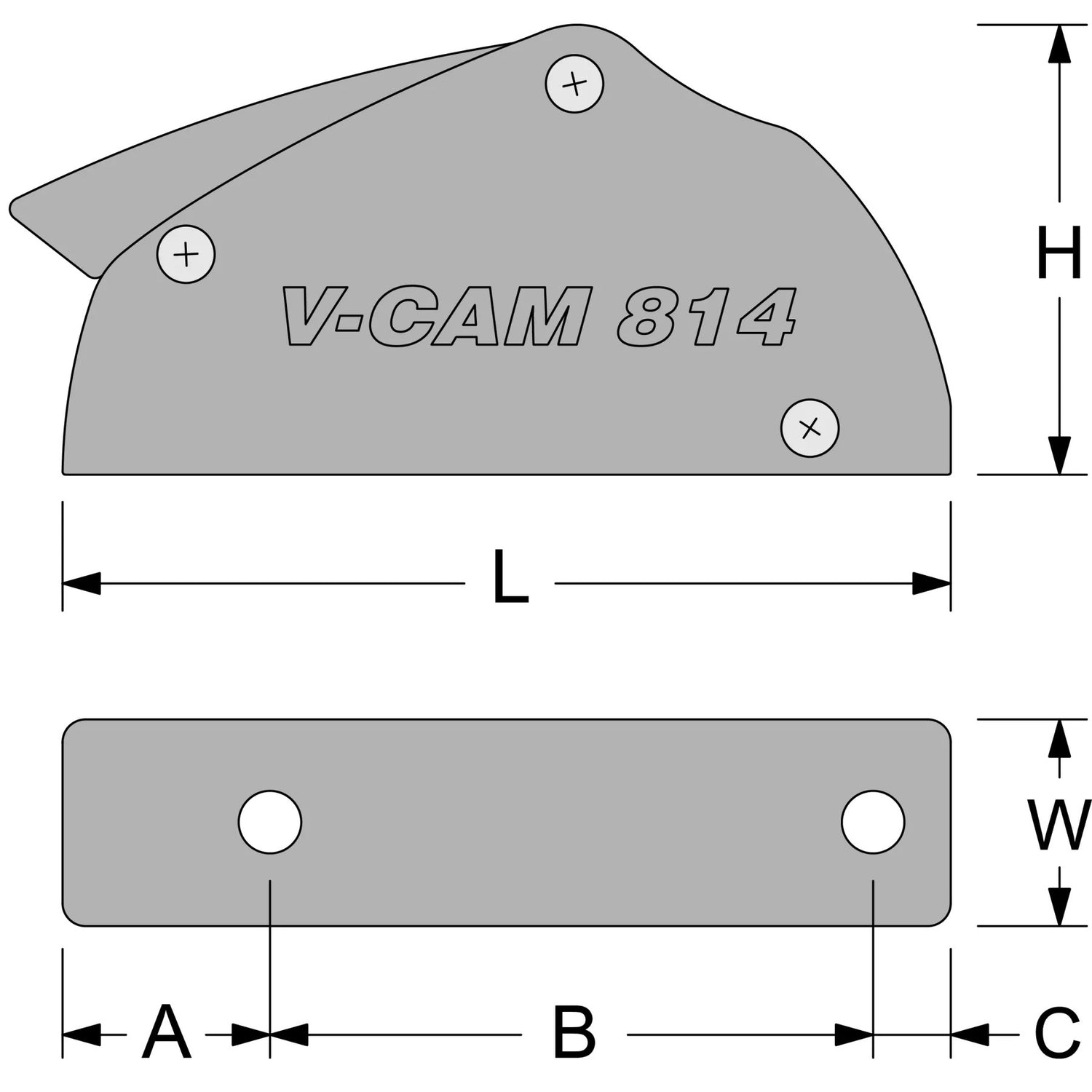

Technical Description
| Length (L) | 154.5 mm |
| Width (W) | 36 mm |
| Height (H) | 78 mm |
| Weight | 0.6 kg |
| Ø Min Line | 8 mm |
| Ø Max Line | 10 mm |
| A | 36 mm |
| B | 105 mm |
| C | 13.5 mm |
| Type | Single |
| Sheave Material | Resin |
| Fixing Screws | 2 × Ø6 mm |
| MWL | 850 kg |
