Antal 04514/F Sheave S.Steel Mini blocks, sheave Ø45 x 14.3, SWL 900 kg
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Antal 04514/F Sheave S.Steel Mini blocks, sheave Ø45 x 14.3, SWL 90...
Antal 04514/F Sheave S.Steel Mini blocks, sheave Ø45 x 14.3, SWL 900 kg
A genuine Antal replacement sheave for the Stainless Mini Blocks range. The 45 mm Mekton (fibre-reinforced resin) sheave runs on side Delrin® ball bearings for low friction in compact layouts. It’s a quick, lightweight refresh for vang cascades, traveller controls and other small-line systems where smooth running and reliability matter.
Why it’s a smart upgrade
- Low friction in a tiny footprint thanks to side Delrin® ball bearings
- Light, tough Mekton resin sheave for dependable performance afloat
- Drop-in swap for Antal Mini Blocks to restore like-new efficiency

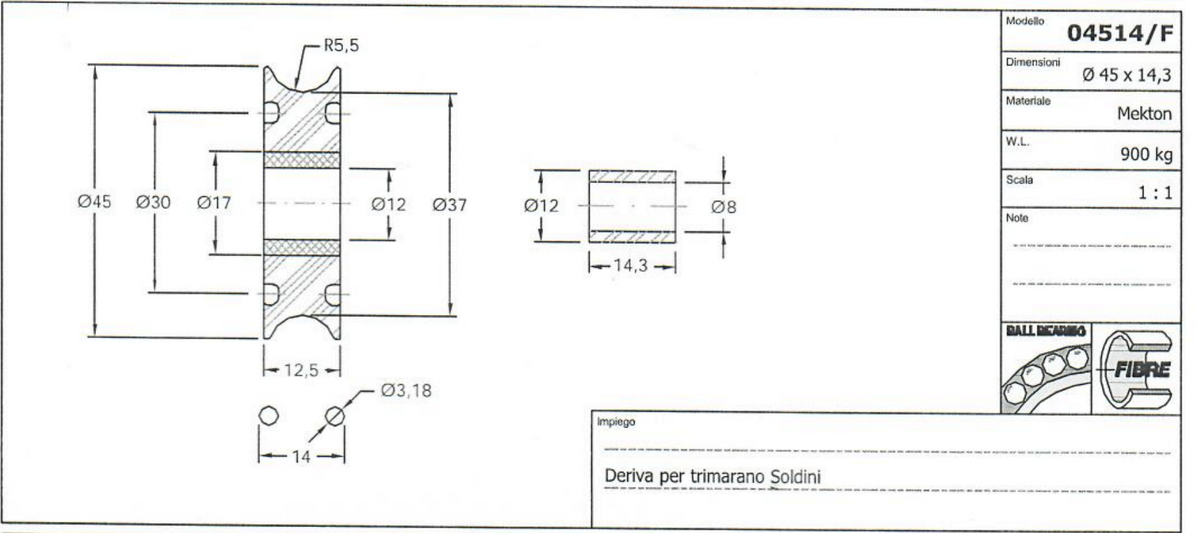

Key specifications
- Sheave Ø: 45 mm
- Max rope Ø: 8 mm
- Safe Working Load (SWL): 900 kg
- Thickness (T): 12.5 mm
- Axle/bore Ø (D3): 8 mm
- Hub Ø (D2): 12 mm
- Sheave material: Mekton (resin)
- Side bearing: Delrin® balls
Typical applications
- Traveller, vang and cunningham cascades on dinghies and small keelboats
- Mast-base and deck organisers for 6–8 mm control lines
- Refurbishing Antal Stainless Mini Blocks where the sheave is worn
Fit & compatibility notes
- Confirm your block’s sheave Ø (45 mm), axle/bore Ø (8 mm) and thickness (12.5 mm) before ordering
- Designed for rope up to 8 mm; do not use with wire or rod
Antal 04514/F Sheave S.Steel Mini blocks, sheave Ø45 x 14.3, SWL 900 kg
A genuine Antal replacement sheave for the Stainless Mini Blocks range. The 45 mm Mekton (fibre-reinforced resin) sheave runs on side Delrin® ball bearings for low friction in compact layouts. It’s a quick, lightweight refresh for vang cascades, traveller controls and other small-line systems where smooth running and reliability matter.
Why it’s a smart upgrade
- Low friction in a tiny footprint thanks to side Delrin® ball bearings
- Light, tough Mekton resin sheave for dependable performance afloat
- Drop-in swap for Antal Mini Blocks to restore like-new efficiency
Key specifications
- Sheave Ø: 45 mm
- Max rope Ø: 8 mm
- Safe Working Load (SWL): 900 kg
- Thickness (T): 12.5 mm
- Axle/bore Ø (D3): 8 mm
- Hub Ø (D2): 12 mm
- Sheave material: Mekton (resin)
- Side bearing: Delrin® balls
Typical applications
- Traveller, vang and cunningham cascades on dinghies and small keelboats
- Mast-base and deck organisers for 6–8 mm control lines
- Refurbishing Antal Stainless Mini Blocks where the sheave is worn
Fit & compatibility notes
- Confirm your block’s sheave Ø (45 mm), axle/bore Ø (8 mm) and thickness (12.5 mm) before ordering
- Designed for rope up to 8 mm; do not use with wire or rod
