Antal | SKU:
ANTXT48HD/CH

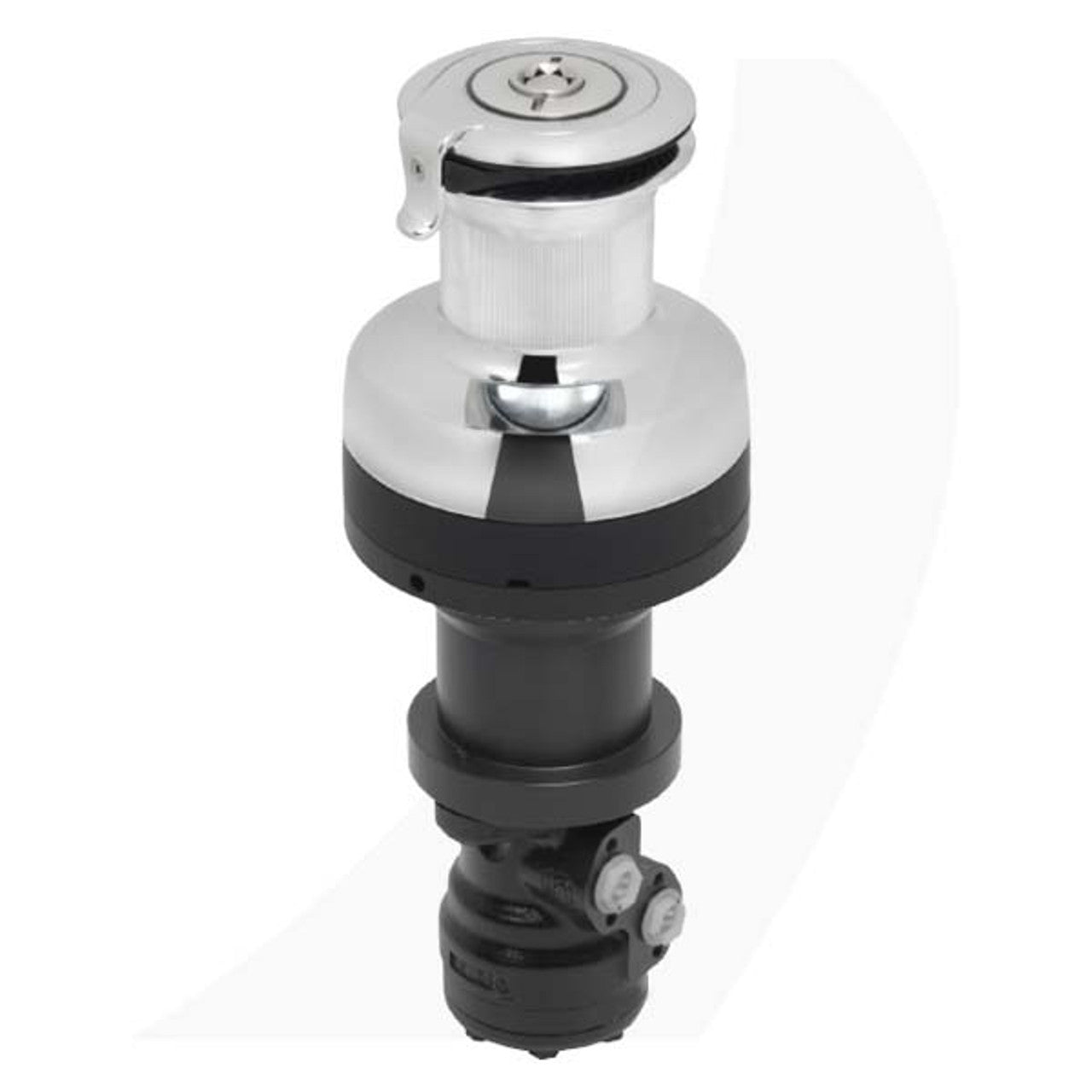

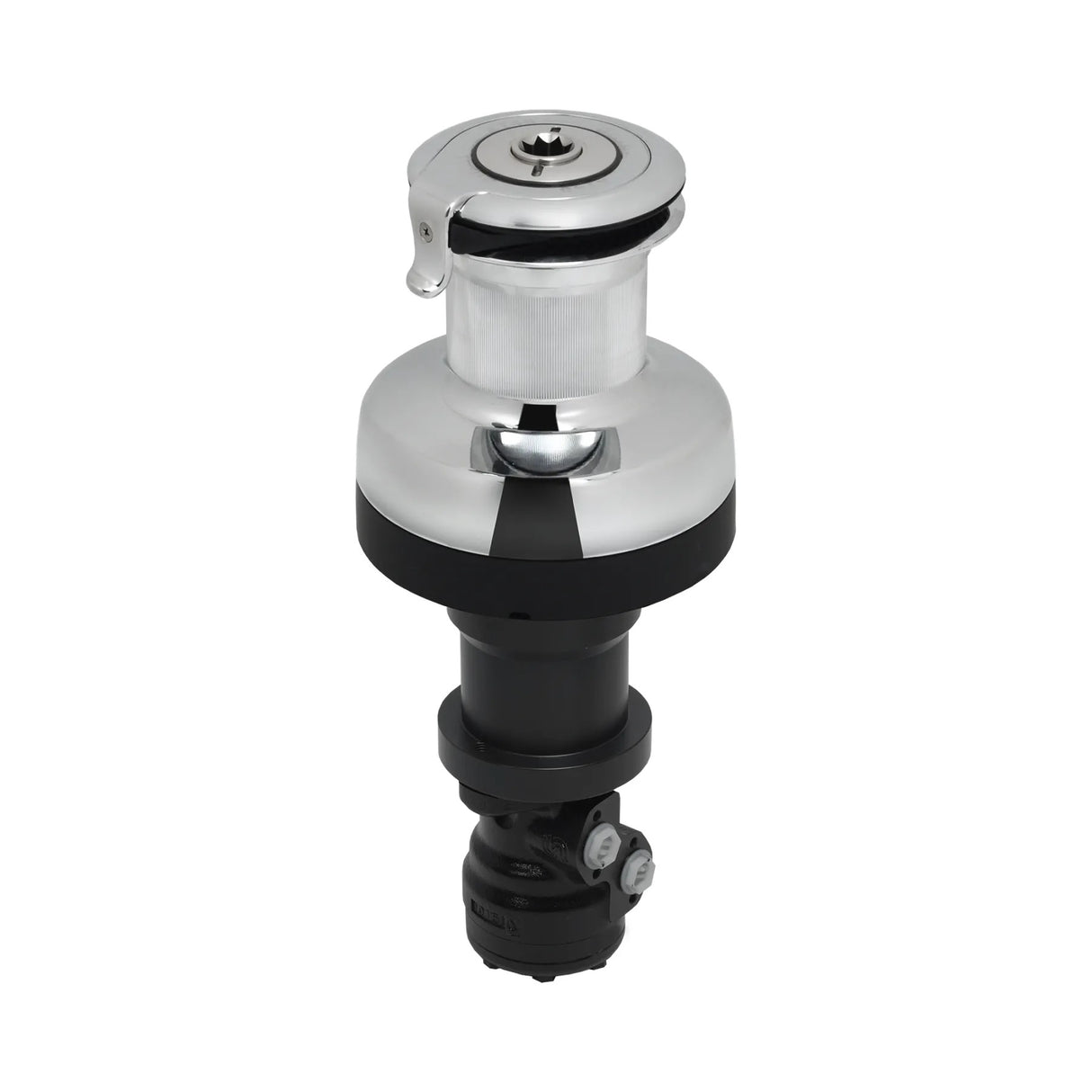

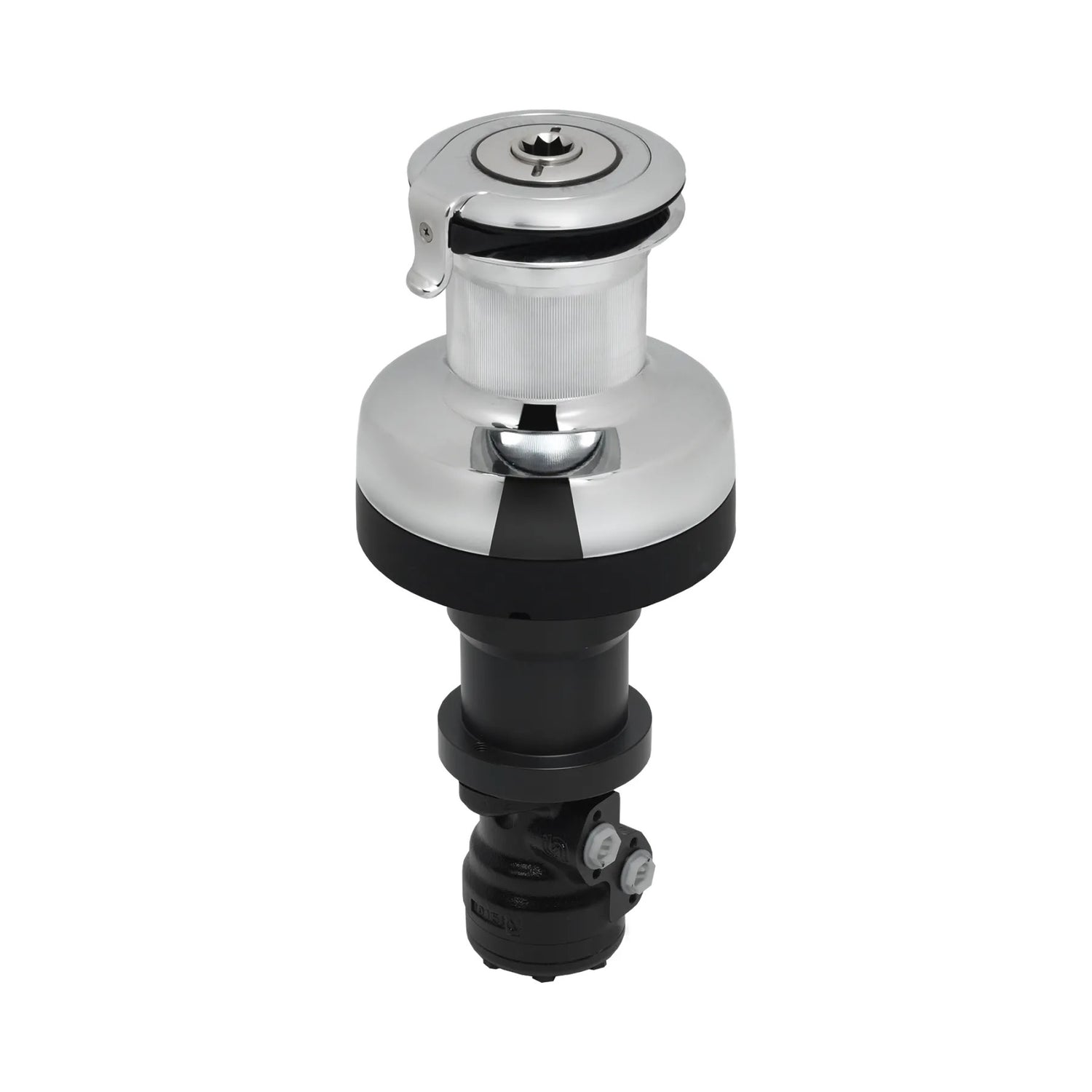

Antal Winch ST 48XT Hydraulic 2 Speed, 48:1, Chrome
Sale price
$4,142.80
Regular price
$4,360.80
Unit price
Not available for expedite shipping.
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Antal Winch ST 48XT Hydraulic 2 Speed, 48:1, Chrome
XT ST cruise, hydraulic winch, power ratio 48, 2 speed, chromed drum
Technical Description
| Height (H) | 214 mm |
| Ø Base (D) | 182 mm |
| Ø Drum (d) | 93 mm |
| Weight | 21,2 kg |
| A | 265 mm |
| B | 130 mm |
| Ø Line | 8 mm - 14 mm |
| Working Load | 1000 kg |
| Fixing Screws | 6 × Ø8 mm |
| Pressure | 100 bar |
| Flow | 7,5 l/min |
| Gear Ratio | 3,5 : 1 / 8,8 : 1 / - |
| Power Ratio | 19,0 : 1 / 47,4 : 1 / - |
| Recovery | 84 mm / 34 mm / - |
| Recovery Speed | 12,5 m/min / 5,0 m/min / - |
