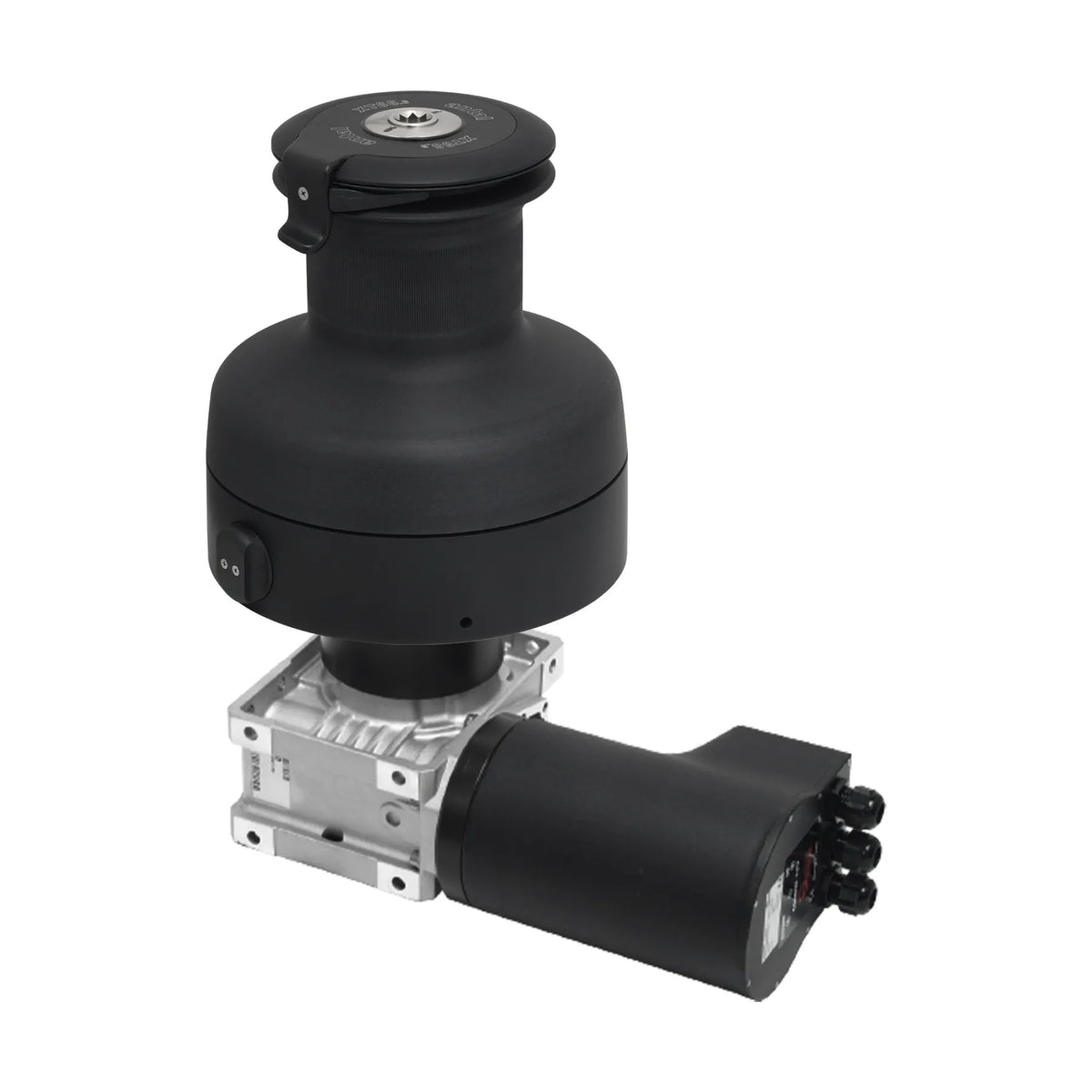

Antal Winch ST 66XT 3 Speed Electric 24V, Aluminum
XT ST cruise winch, electric horizontal, power ratio 66, 3 speed, black aluminum drum.
1500 Watt motor available in 24 Volts.
Technical Description
| Gear ratio | 3,1 : 1 / 5,6 : 1 / 18,6 : 1 |
| Power ratio | 10,8 : 1 / 19,7 : 1 / 65,7 : 1 |
| Recovery | 148 mm / 81 mm / 24 mm |
| Recovery speed | 23,0 m/min / 12,0 m/min / 3,6 m/min |
| Height (H) | 293 mm |
| Ø base (D) | 248 mm |
| Weight | 45,5 kg |
| Ø drum (d) | 144 mm |
| A | 199 mm |
| B | 311 mm |
| C | 115 mm |
| E | 74 mm |
| Ø line | 10 mm - 18 mm |
| Motor 12V / 24V / 48V | 1500 watt |
| Working load | 2600 kg |
| Fixing screws | 6 x Ø10 mm |
