Antal | SKU:
ANTXT76.3HDAL
Antal Winch XT76 3 SPEED-Aluminium-Hydraulic
Sale price
$12,739.50
Regular price
$13,410.00
Unit price
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

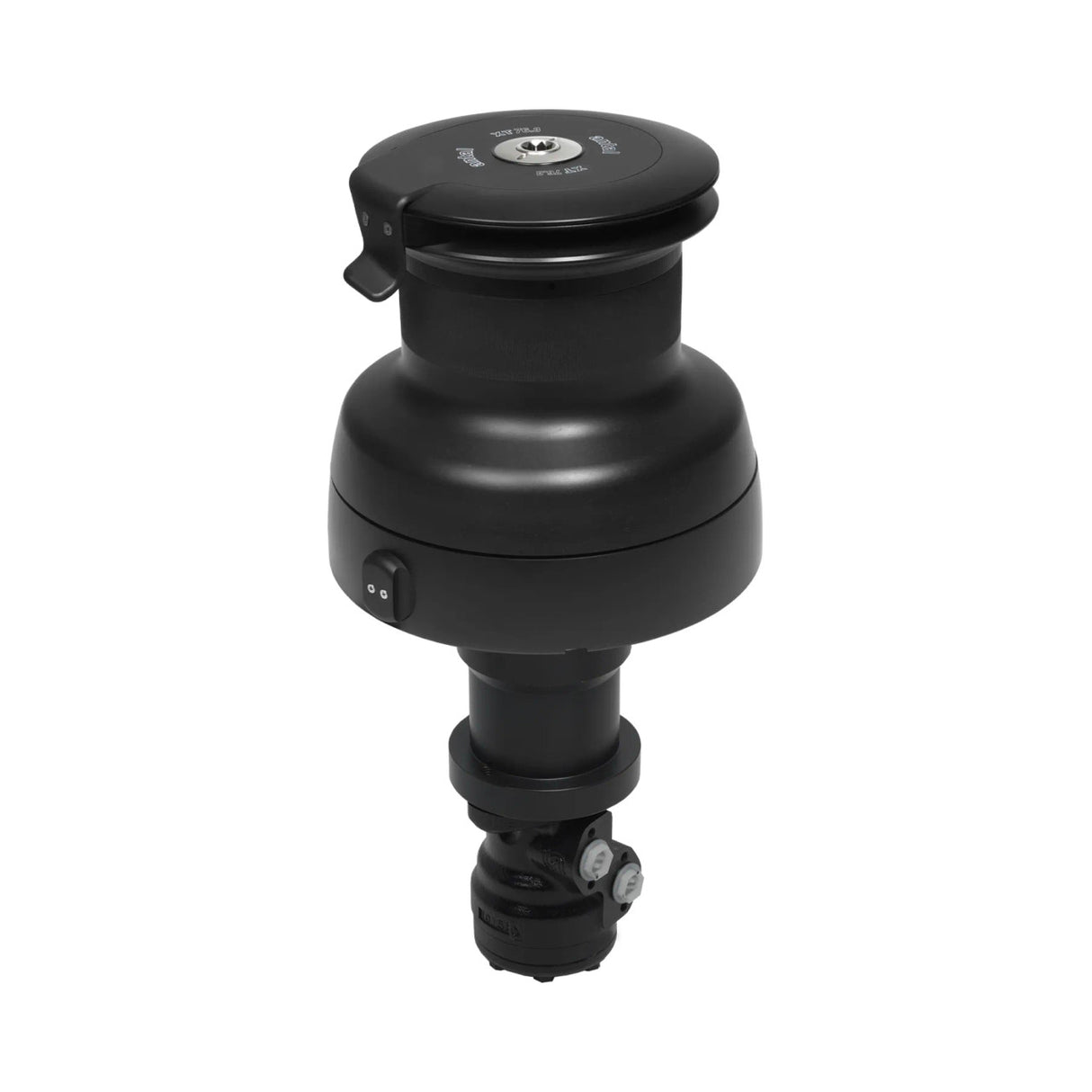

Antal Winch XT76 3 SPEED-Aluminium-Hydraulic
XT ST cruise, hydraulic winch, power ratio 76, 3 speed, aluminum drum
Technical Description
| Gear Ratio | 3,6 : 1 / 9,7 : 1 / 25,5 : 1 |
| Power Ratio | 10,5 : 1 / 28,4 : 1 / 74,5 : 1 |
| Recovery | 152 mm / 56 mm / 21 mm |
| Recovery Speed | 24,0 m/min / 9,0 m/min / 3,5 m/min |
| Height (H) | 306 mm |
| Ø Base (D) | 289 mm |
| Ø Drum (d) | 174 mm |
| Weight | 34 kg |
| A | 265 mm |
| B | 130 mm |
| Ø Line | 10 mm - 18 mm |
| Working Load | 3400 kg |
| Fixing Screws | 6 x Ø10 mm |
| Pressure | 120 bar |
| Flow | 20 l/min |
