Colligo Marine | SKU:
COLCSS92BLK
Colligo Marine Carbon Chainplate/Male Distributor, Black, 5/8"
Sale price
$84.55
Regular price
$89.00
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.

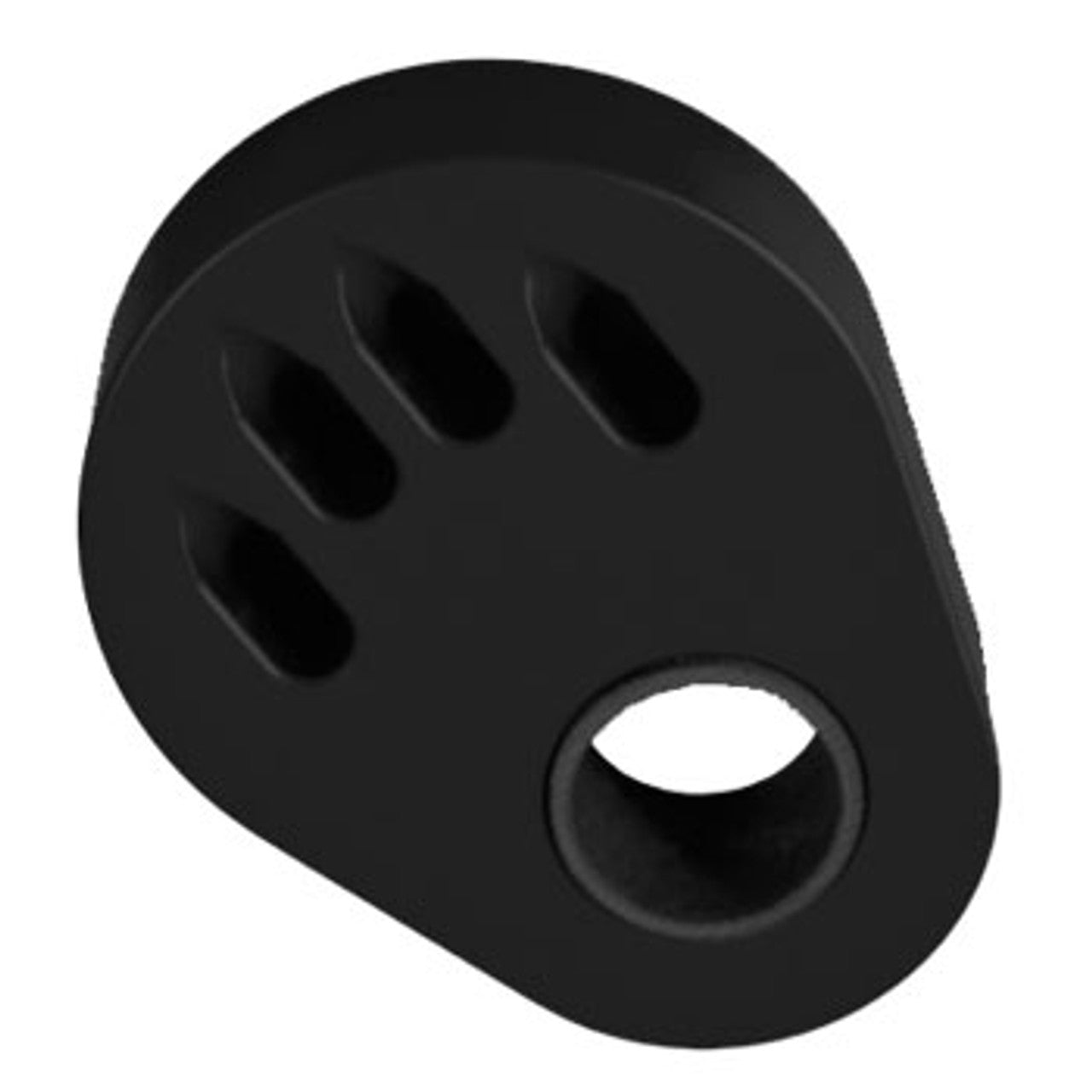

Colligo Marine Carbon Chainplate/Male Distributor, Black, 5/8"
Sale price
$84.55
Regular price
$89.00
Unit price
Unavailable
Manufacturer part #: CSS92BLK
Note: Custom sleeved to smaller sizes.
Manufacturer part #: CSS92BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
4 lashing lines for greater load distribution and easy tensioning Wide lashing hole distribution for easy final tensioning Hardcoat anodizing Extra large sections for higher strength rating Made from 6061-T6, Billet Aluminum Sleeved Mounting Pin holes for long term durability. Note: Some pin size flexibility is designed into these parts. If you need a different pin hole size then email or call us.
| Features | American | Metric | |
|---|---|---|---|
| Description | Male Carbon Chainplate Distributors | ||
| Lashing Holes | 4 | ||
| Hole Size w/o Sleeve | 3/4 in | 19.05 mm | |
| A | 0.625 in | 16 mm | |
| D | 0.83 in | 21 mm | |
| E | 2.36 in | 60 mm | |
| F | 0.7 in | 18 mm | |
| G | 1/4 in | 6.4 mm | |
| Safe Working Load | 12500 lb | 5670 kg | |
| Break Strength | 25000 lb | 11340 kg | |
| Weight | 6 oz | 171 gr | |
Manufacturer part #: CSS92BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
