Colligo Marine | SKU:
COLCSS95BLK

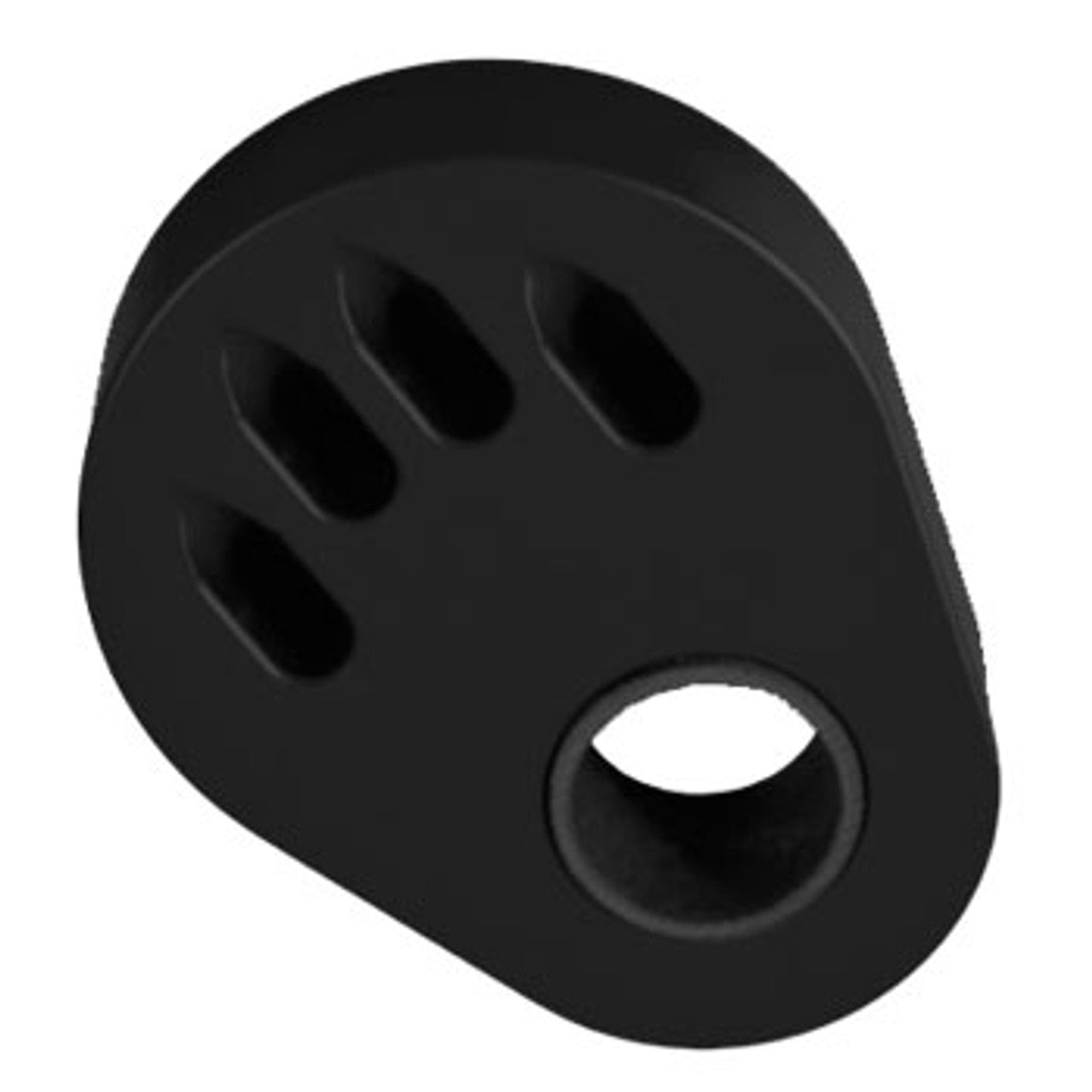

Colligo Marine Chainplate Distributor Light Weight Mini Series, 1/2 inch, Black
Sale price
$75.05
Regular price
$79.00
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Colligo Marine Chainplate Distributor Light Weight Mini Series, 1/2...
Sale price
$75.05
Regular price
$79.00
Unit price
Unavailable
Manufacturer part #: CSS95BLK
Note: Custom sleeved to smaller sizes.
Manufacturer part #: CSS95BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
4 lashing lines for greater load distribution and easy tensioning Wide lashing hole distribution for easy final tensioning Hardcoat anodizing Extra large sections for higher strength rating Made from 6061-T6, Billet Aluminum Sleeved Mounting Pin holes for long term durability. Note: Some pin size flexibility is designed into these parts. If you need a different pin hole size then email or call us.
| Features | American | Metric | |
|---|---|---|---|
| Description | Traditional Chainplate Distributors | ||
| Lashing Holes | 3 | ||
| Hole Size w/o Sleeve | 0.625 in | 16 mm | |
| A | 0.5 in | 12.8 mm | |
| B | 0.353 in | 9 mm | |
| C | 0.564 in | 14 mm | |
| D | 1.18 in | 30 mm | |
| E | 1.89 in | 48 mm | |
| F | 0.98 in | 25 mm | |
| G | 1/4 in | 6.4 mm | |
| Safe Working Load | 7000 lb | 3175 kg | |
| Break Strength | 14000 lb | 6350 kg | |
| Weight | 2.4 oz | 68 gr | |
Manufacturer part #: CSS95BLK
Colligo's distributors are designed for setting up the tension of your line through lashings at chainplates on deck, mast fittings, or even turnbuckles. They feature the following:
