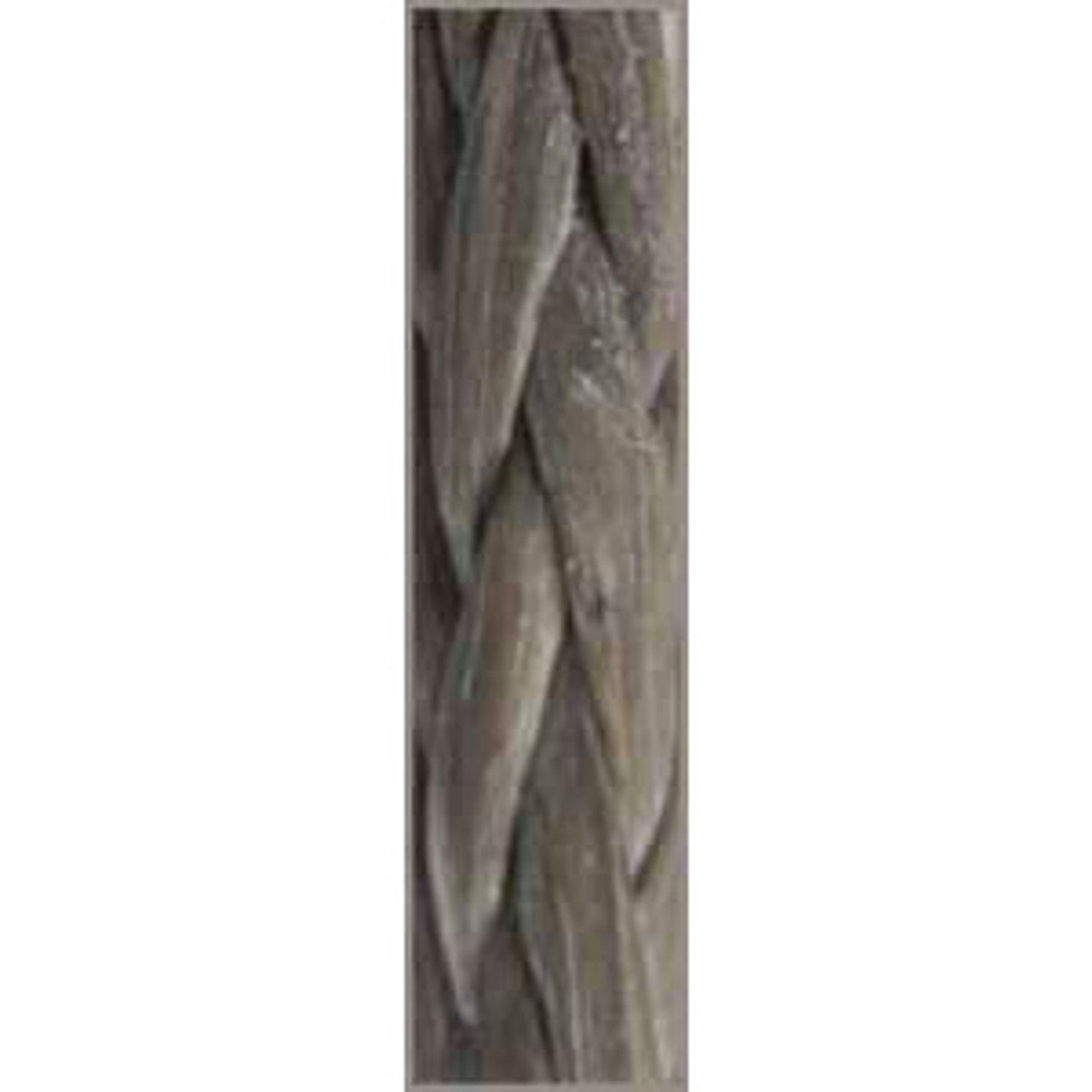

Colligo Marine Colligo Dux 9 mm
Manufacturer part #: CSS109
| Dux Diameter |
Weight | Breaking Strength | ||
|---|---|---|---|---|
| kg/ft | kg/100 m | American | Metric | |
| 5 mm | 0.00573 | 1.88 | 10472 lb | 4760 kg |
| 7 mm | 0.010363 | 3.4 | 16500 lb | 7500 kg |
| 9 mm | 0.016459 | 5.4 | 26400 lb | 12000 kg |
| 11 mm | 0.025298 | 8.3 | 40480 lb | 18400 kg |
| 13 mm | 0.034138 | 11.2 | 53900 lb | 24500 kg |
Manufacturer part #: CSS109
Colligo Dux is the first 12 strand line that has similar stretch characteristics to 1x19 wire rope. In fact it can easily be sized so that you have less stretch than your wire rope with a minimal windage increase. You can have synthetic rigging for about the same price as wire.
Worried about Chafe? Loggers drag logs thru the woods with it. Toughest synthetic there is. UV? Best uncovered Synthetic for UV resistance. Colligo's systems today have a replacement interval of 5-8 years in the tropics (uncovered). Colligo's UV study will be published here soon for more detailed info. We expect a higher number. Creep? We know what creep is and we size for no more than 0.1 inches per year.
Easily spliceable, inspectable, 1/6 the weight of wire and, 1/3 the price of PBO!
Warning: Colligo Dux Synthetic Standing Rigging is Dyneema based and is highly dependent on end termination geometry. Colligo's line terminators are designed to maximize life over the long term and to get the greatest value (and life) from Colligo Dux Rigging. The data shown on this site cannot be applied to any Dyneema based lines without the use of Colligo Synthetic Systems hardware.
