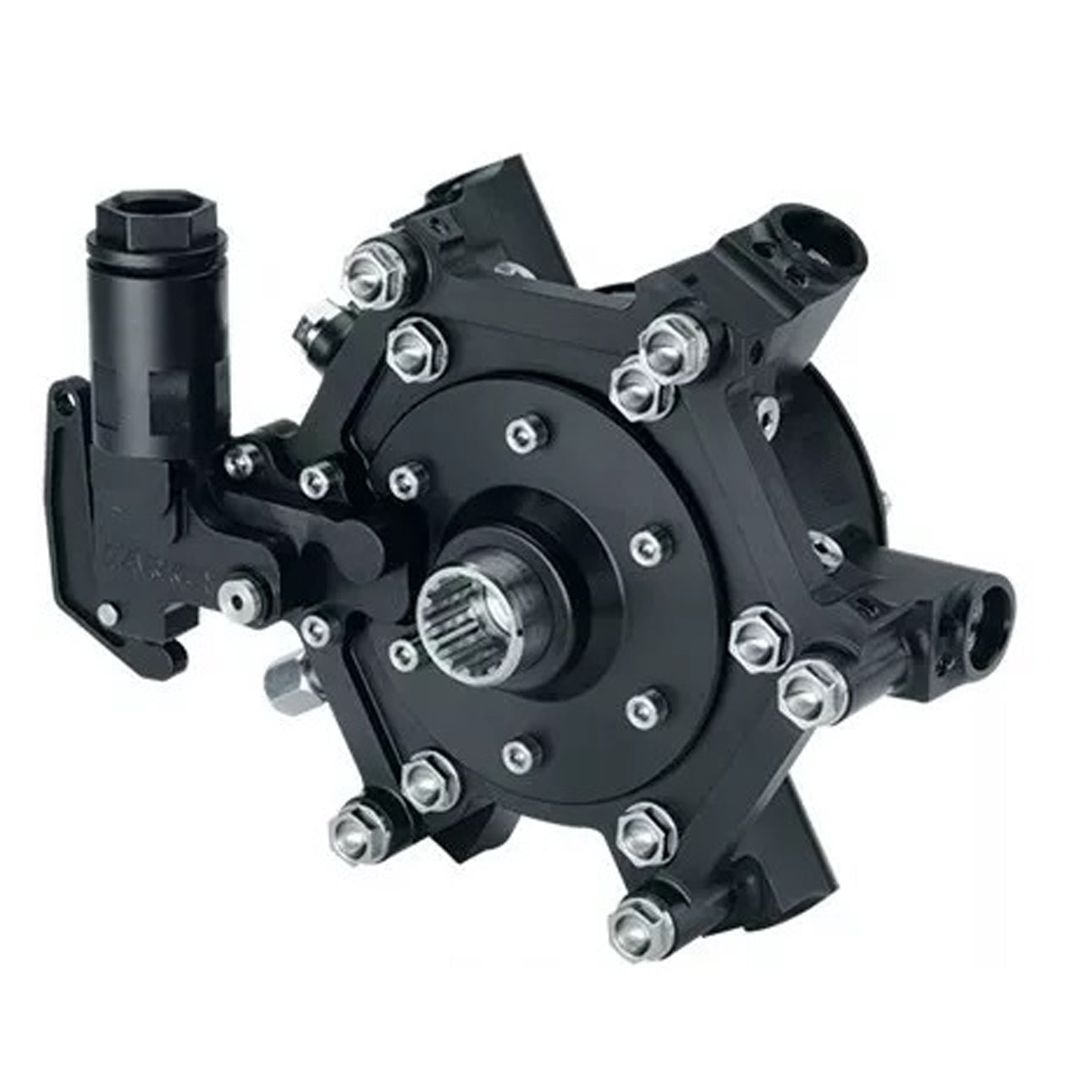

Harken 10 cc Rotary Pump - Female Input Shaft

Harken 10 cc Rotary Pump - Female Input Shaft

Harken offers two sizes of 2-speed, pedestal-driven rotary pumps for Grand Prix race boats 13.7 - 30.5 m (45 - 100'). They deliver oil faster, more efficiently, and with higher shift points than other pumps of comparable sizes. The pumps shift from 1st to 2nd gear both automatically and manually, with automatic shift points determined by the maximum output of the grinders. If fewer crew are grinding, and not enough power is generated to reach the automatic shift point, pumps can be shifted manually—the 20 cc pump by simply reversing the pedestal handles; the 10 cc pump by using a pull-cord attached to a lever. Pumps are made of corrosion-resistant Hard Lube-anodized aluminum, with aluminum, titanium, and stainless steel components. Both include a non-return valve on the outlet to prevent backflow. Shafts attach pumps directly to the pedestal and are compatible with Harken’s MX. Through-shaft coupling allows the pump to be driven from either side and mount remotely with a T-box or X-box. Six double-stepped pistons save weight and feature connecting rods for piston return. Three fasteners provide quick connect/disconnect mounting. Maximum pressure is 7,500 psi (517 bar).
