Harken | SKU:
HR692
Harken 102mm Narrow Hi-Load Halyard Sheave
Sale price
$407.95
Regular price
$473.05
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 102mm Narrow Hi-Load Halyard Sheave
Sale price
$407.95
Regular price
$473.05
Unit price

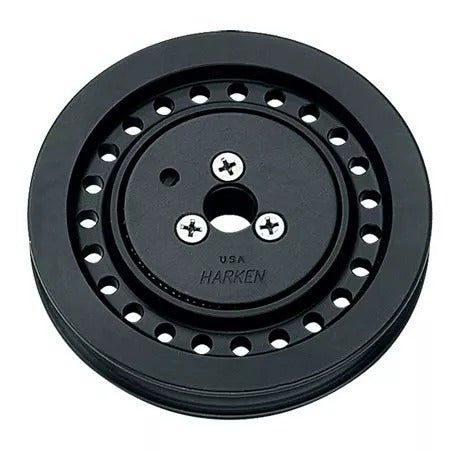

Harken 102mm Narrow Hi-Load Halyard Sheave
Narrow high-load sheaves in mastheads improve sail handling, speed sail changes, and allow the use of smaller, lighter halyard winches. Sheaves combine sideload-carrying balls with a PTFE composite bushing for radial loads.
Technical Description
| Sheave Ø (mm) | 102 mm |
| Sheave Ø (in) | 4 in |
| Width (mm) | 19 mm |
| Width (in) | 3/4 in |
| Weight (g) | 227 g |
| Weight (oz) | 8 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum wire Ø (mm) | 8 mm |
| Maximum wire Ø (in) | 5/16 in |
| Center pin Ø (mm) | 12.7 mm |
| Center pin Ø (in) | 1/2 in |
| Maximum working load (kg) | 3742 kg |
| Maximum working load (lb) | 8250 lb |
| Breaking load (kg) | 7484 kg |
| Breaking load (lb) | 16500 lb |
