Harken 1200 CLR Electric Top Custom Mooring Horizontal Winch With 1...
Harken 1200 CLR Electric Top Custom Mooring Horizontal Winch With 12V Dual Function Control Box

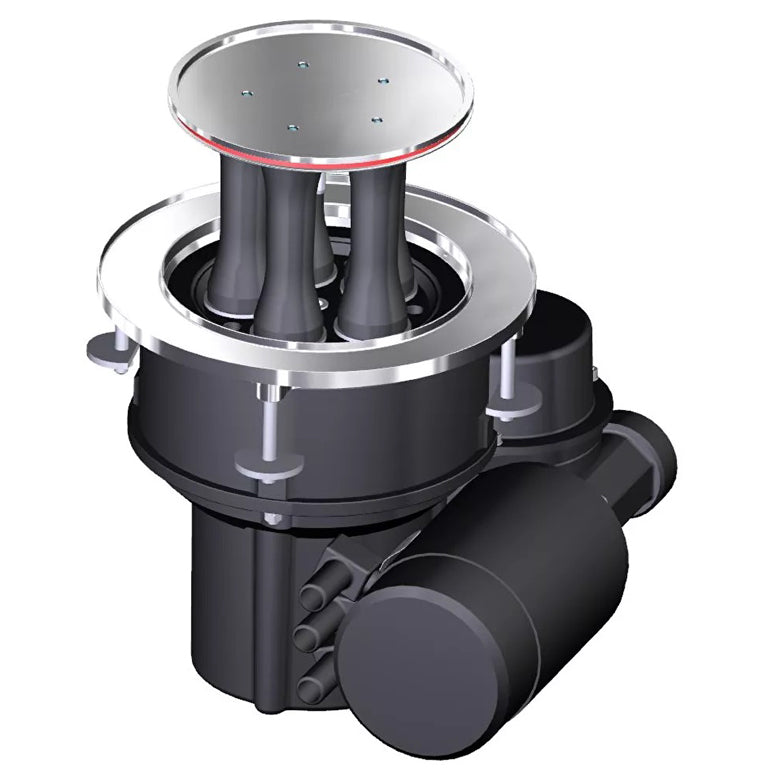

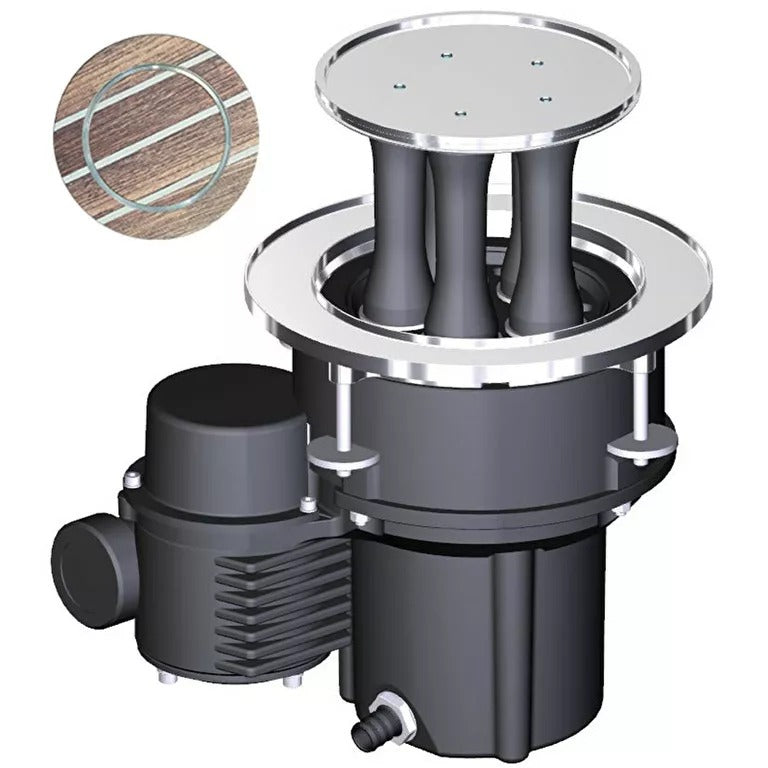

No other retracting, flush-mounted winch has offered the power-for-size ratio offered by the CLR. It stows completely belowdeck and occupies 40% less horizontal and less than 50% of the vertical space required by the previous market leaders. The CLR weighs just 33% of its competition while delivering comparable mechanical advantage. This compact form makes it possible for yachts to mount two CLR winches at the stern quarters and one in the bow. Together, three CLRs can reduce the need for engine and thruster power while helping crews moor stern-to-dock. The CLR employs unprecedented winch drum geometry. Five aluminum columns rotate together around a center axis. Working together, they create a very light drum that provides substantially more line-holding power and low-speed torque than would be available using a traditional drum. The CLR offers internal LED lights at the bottom of each column for use in low-light mooring situations. 1200 kg (2645.5 lb) max holding load for boats from 18.2 m - 27.4 m (59.7' – 89.9').
Technical Description
| Available power | Electric horizontal 12V |
| Boat length (m) | 18.3 - 27.4 m |
| Boat length (ft) | 60 - 90 ft |
| Power (watts) | 1500 W |
| Weight (kg) | 19 kg |
| Weight (lb) | 42 lb |
| Minimum line Ø (mm) | 12 mm |
| Minimum line Ø (in) | 1/2 in |
| Maximum line Ø (mm) | 18 mm |
| Maximum line Ø (in) | 11/16 in |
| Maximum line speed (m/min) | 15 m/min |
| Maximum line speed (ft/min) | 49.2 ft/min |
| Maximum holding load (kg) | 1200 kg |
| Maximum holding load (lb) | 2640 lb |
| Maximum pulling load (kg) | 600 kg |
| Maximum pulling load (lb) | 1320 lb |
| A (mm) | 237 mm |
| A (in) | 9 5/16 in |
| B minimum (mm) | 15 mm |
| B minimum (in) | 5/8 in |
| B maximum (mm) | 55 mm |
| B maximum (in) | 2 5/32 in |
| C (mm) | 135 mm |
| C (in) | 5 5/16 in |
| D (mm) | 250 mm |
| D (in) | 9 27/32 in |
| E (mm) | 174 mm |
| E (in) | 6 27/32 in |
| F (mm) | 119 mm |
| F (in) | 4 11/16 in |
| G (mm) | 346 mm |
| G (in) | 13 5/8 in |
| H (mm) | 350 mm |
| H (in) | 13 25/32 in |
