Harken | SKU:
HR3266
Harken 150mm Aluminum Standup Block
Sale price
$1,771.95
Regular price
$2,053.90
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 150mm Aluminum Standup Block
Sale price
$1,771.95
Regular price
$2,053.90
Unit price
Unavailable

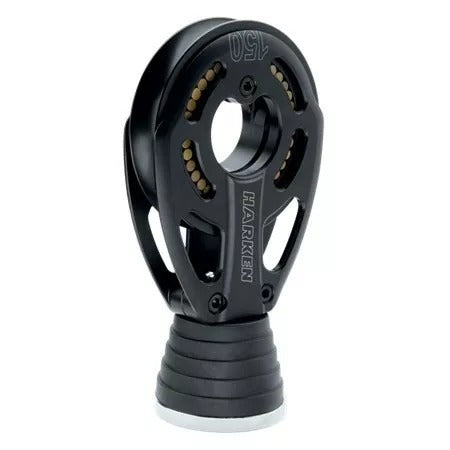

Harken 150mm Aluminum Standup Block
Black Magic Air blocks are a top favorite of Big Boat performance racers and cruisers. These lightweight, free-running, powerful performers are used for sail controls that see lots of action. Sideplates and sheaves Hard Lube-anodized for maximum UV protection and a smooth surface. Center cage keeps Torlon roller bearings separated and parallel to reduce friction. Torlon is a registered trademark of Solvay Advanced Polymers L.L.C.
Technical Description
| Sheave Ø (mm) | 150 mm |
| Sheave Ø (in) | 5 15/16 in |
| Length (mm) | 283 mm |
| Length (in) | 11 1/8 in |
| Width (mm) | 153 mm |
| Width (in) | 6 1/32 in |
| Weight (g) | 2419 g |
| Weight (oz) | 85.34 oz |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 6804 kg |
| Maximum working load (lb) | 15000 lb |
| Breaking load (kg) | 13608 kg |
| Breaking load (lb) | 30000 lb |
| Includes | Includes padeye. Uses hole spacing and base dimensions of 629 padeye. Maximum working load decreases at varying angles. |

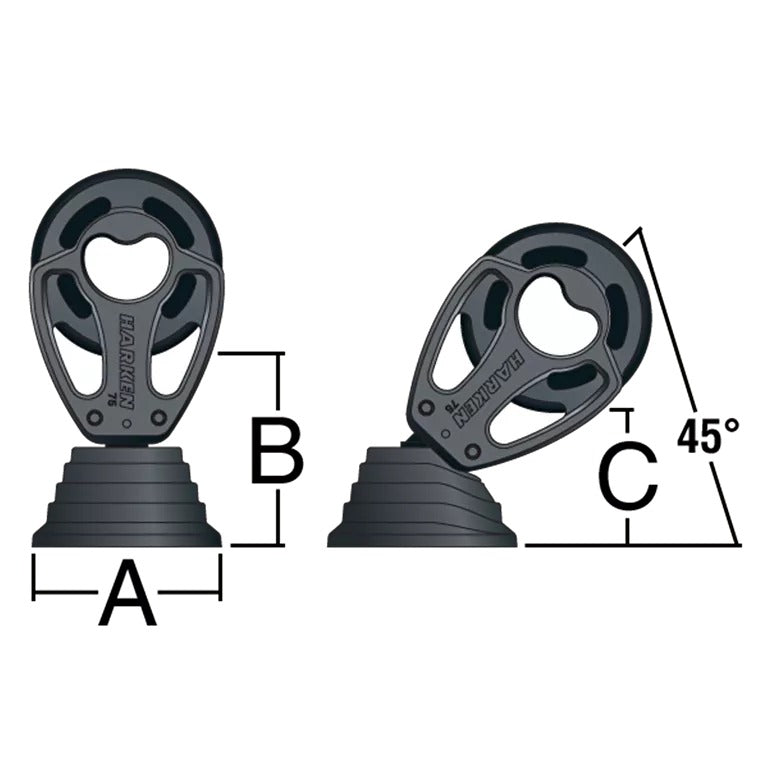

| A (mm) | 95 mm |
| A (in) | 3 3/4 in |
| B (mm) | 132 mm |
| B (in) | 5 3/16 in |
| C (mm) | 92 mm |
| C (in) | 3 5/8 in |
