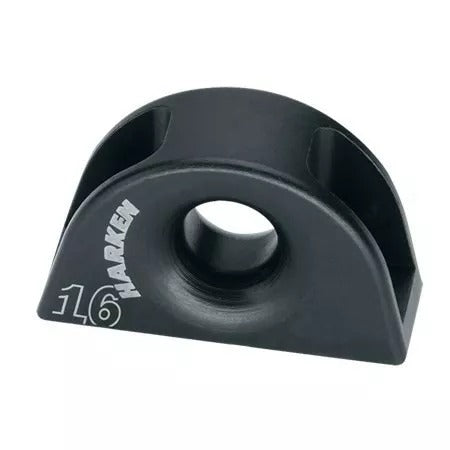

Harken 16mm Single Bolt-Down Fairlead
Harken Bolt-Down Fairleads are used on boats 6–15 m (20–50 ft) as shallow-angle line deflectors. These weight-saving fairleads are built of 6061-T6 Hard Lube-anodized aluminum for durability. Smooth surfaces and radiused center holes minimize line wear.
Technical Description
| Length (mm) | 60 mm |
| Length (in) | 2 3/8 in |
| Width (mm) | 22 mm |
| Width (in) | 7/8 in |
| Weight (g) | 47 g |
| Weight (oz) | 1.66 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | 8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Maximum working load (kg) | 1816 kg |
| Maximum working load (lb) | 4000 lb |
| Breaking load (kg) | 3632 kg |
| Breaking load (lb) | 8000 lb |
| Height (mm) | 31.8 mm |
| Height (in) | 1 1/4 in |
| A (mm) | 37 mm |
| Center hole Ø (mm) | 16 mm |
| Center hole Ø (in) | 5/8 in |
