Harken | SKU:
HRHC8631
Harken 175mm Aluminum Teardrop Block - Loop Not Included
Sale price
$6,599.65
Regular price
$6,731.65
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 175mm Aluminum Teardrop Block - Loop Not Included
Sale price
$6,599.65
Regular price
$6,731.65
Unit price
Unavailable

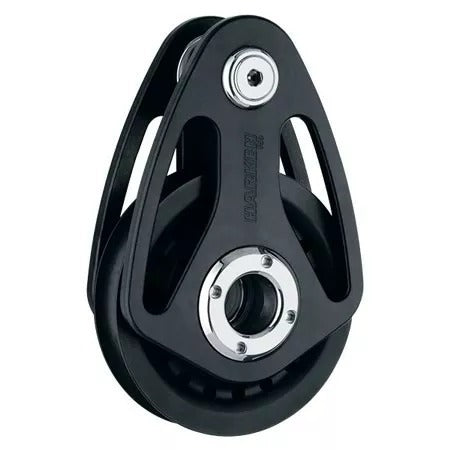

Harken 175mm Aluminum Teardrop Block - Loop Not Included

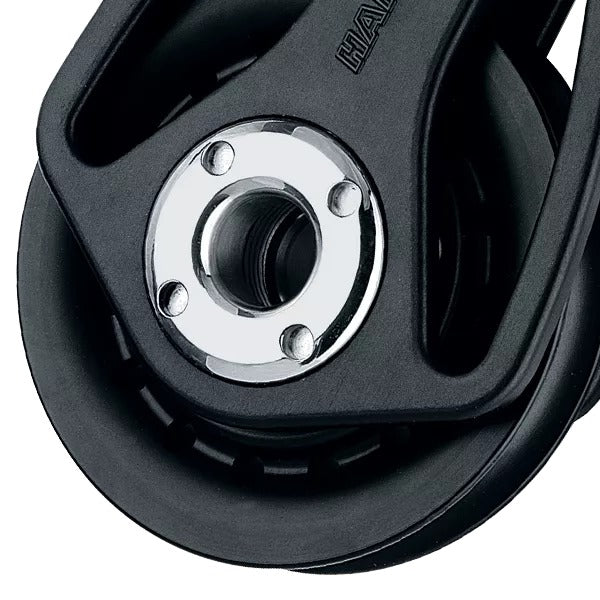

Sideplates are constructed of hardcoat-anodized 6061-T6 aluminum for strength and corrosion resistance. The ultralight composite bearing system (ULC) rides on a heat-treated stainless steel inner race to handle extremely high loads.
Technical Description
| Sheave Ø (mm) | 175 mm |
| Sheave Ø (in) | 6 7/8 in |
| Length (mm) | 267 mm |
| Length (in) | 10 1/2 in |
| Weight (kg) | 3.3 kg |
| Weight (lb) | 7.28 lb |
| Maximum line Ø (mm) | 25 mm |
| Maximum line Ø (in) | 1 in |
| Maximum working load (kg) | 15000 kg |
| Maximum working load (lb) | 33075 lb |
| Breaking load (kg) | 30000 kg |
| Breaking load (lb) | 66150 lb |
