Harken | SKU:
HR460
Harken 25mm Ball-and-Socket Base for 3/16 Pin
Sale price
$74.95
Regular price
$86.25
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 25mm Ball-and-Socket Base for 3/16 Pin
Sale price
$74.95
Regular price
$86.25
Unit price
Unavailable

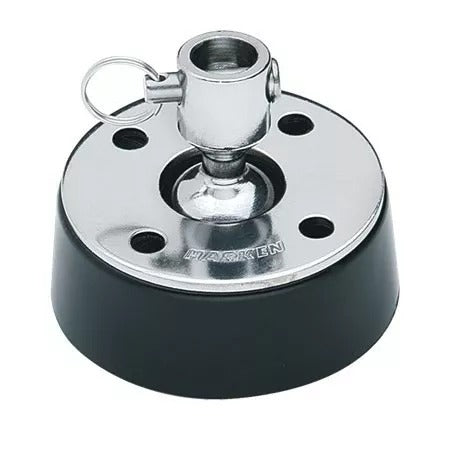

Harken 25mm Ball-and-Socket Base for 3/16 Pin
Stand-up bases allow a wide variety of blocks to be held upright, swivel freely, or pivot so lines have a fairlead under load. The ball-and-socket design lets blocks articulate up to 45 degrees and swivel freely. The 460 and 461 bases (high-load versions of the 010 and 029) have stainless steel reinforcement plates to handle the high load capacities of 57 mm and 75 mm Carbo blocks.
Technical Description
| Height (mm) | 44 mm |
| Height (in) | 1 3/4 in |
| Weight (g) | 113 g |
| Weight (oz) | 4 oz |
| Fastener (mm) | 5 FH mm |
| Fastener (in) | #10 FH in |
| Maximum working load (kg) | 363 kg |
| Maximum working load (lb) | 800 lb |
| Breaking load (kg) | 1134 kg |
| Breaking load (lb) | 2500 lb |
| Base Ø (mm) | 54 mm |
| Base Ø (in) | 2 1/8 in |
| Pin Ø (mm) | 5 mm |
| Pin Ø (in) | 3/16 in |
| Inside socket Ø (mm) | 10 mm |
| Inside socket Ø (in) | 3/8 in |
| Use with blocks | 57 mm Carbo |
No manuals available for this product
No videos available for this product
