Harken | SKU:
HR009
Harken 3.00" Hexaratchet Block, Swivel Starboard
Regular price
$127.60
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 3.00" Hexaratchet Block, Swivel Starboard
Regular price
$127.60
Unit price

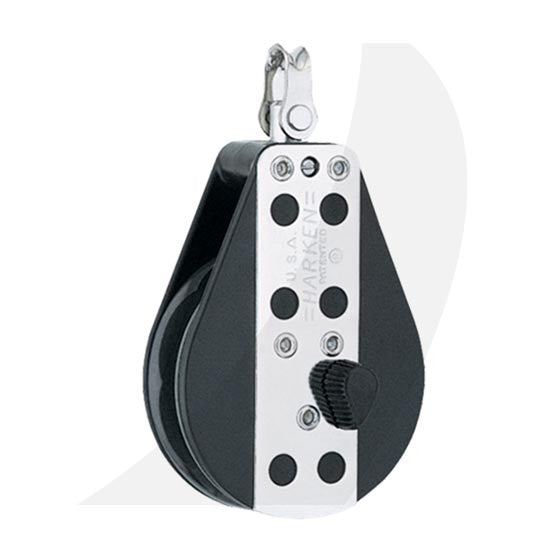

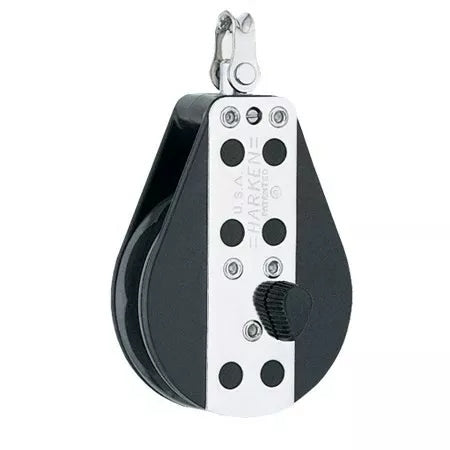

Harken 3.00" Hexaratchet Block, Swivel Starboard
Hexaratchets grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control. A switch on the side engages and disengages the ratchet mechanism. Use the 043 or 044 reverse ratchets with the 019 and 009 singles or 050 single with becket on spinnaker and jib sheets where ratchets rotate in opposite directions and on/off switches face up.
Technical Description
| Sheave Ø (mm) | 76 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 127 mm |
| Length (in) | 5 in |
| Weight (g) | 241 g |
| Weight (oz) | 8.5 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 7/16 in |
| Maximum working load (kg) | 340 kg |
| Maximum working load (lb) | 750 lb |
| Breaking load (lb) | 2000 lb |
| Breaking load (kg) | 907 kg |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
| Holding power | 15:1 |
| Turns | clockwise |
