Harken | SKU:
HR6244
Harken 45mm Element Double Foot Block
Regular price
$134.90
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 45mm Element Double Foot Block
Regular price
$134.90
Unit price
Unavailable

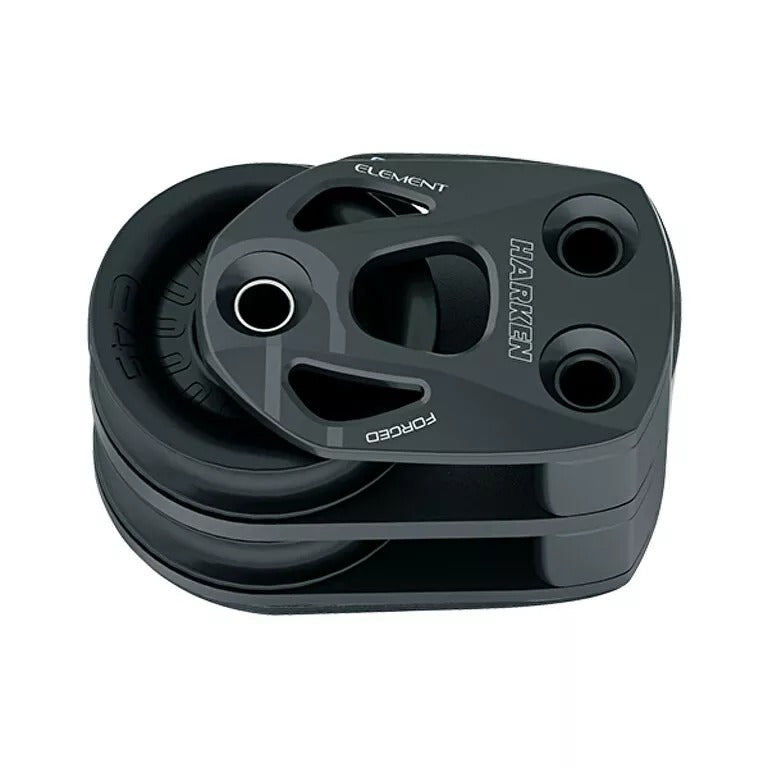

Harken 45mm Element Double Foot Block
Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks. Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.
Technical Description
| Sheave Ø (mm) | 45 mm |
| Sheave Ø (in) | 1 3/4 in |
| Length (mm) | 76 mm |
| Length (in) | 3 in |
| Weight (g) | 160 g |
| Weight (oz) | 5.6 oz |
| Maximum line Ø (mm) | 12 mm |
| Maximum line Ø (in) | 1/2 in |
| Fasteners (mm) | 6 mm |
| Maximum working load (kg) | 466 kg |
| Maximum working load (lb) | 1018 lb |
| Breaking load (kg) | 933 kg |
| Breaking load (lb) | 2036 lb |

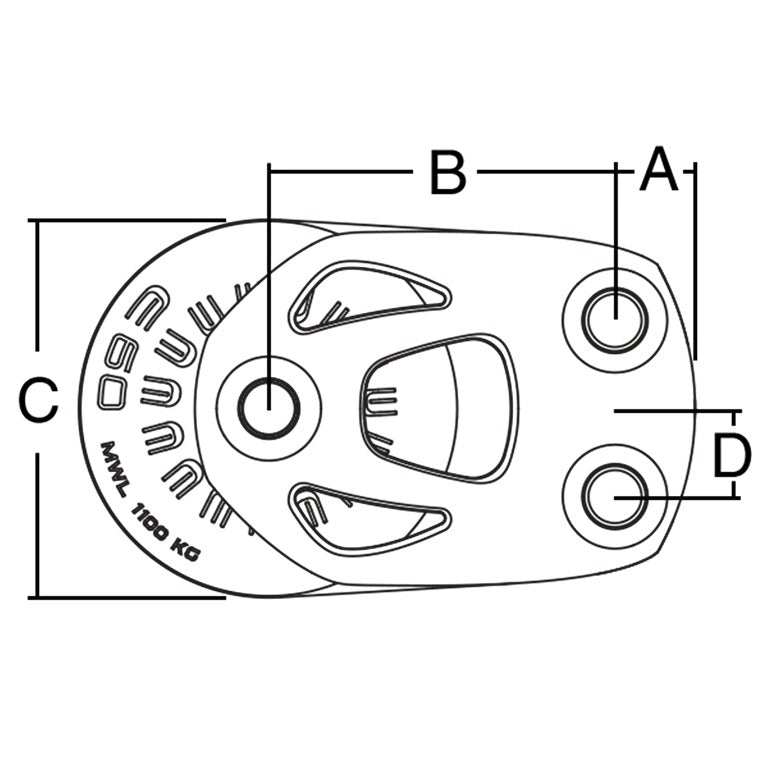

| A (mm) | 11 mm |
| A (in) | 7/16 in |
| B (mm) | 41.5 mm |
| B (in) | 1 5/8 in |
| C (mm) | 45 mm |
| C (in) | 1 3/4 in |
| Height (mm) | 45 mm |
| Height (in) | 1 3/4 in |
| D (mm) | 9.5 mm |
| D (in) | 3/8 in |
