Harken 5.0T Aluminum Loop V Block w/Wide Sheave
Harken 5.0T Aluminum Loop V Block w/Wide Sheave

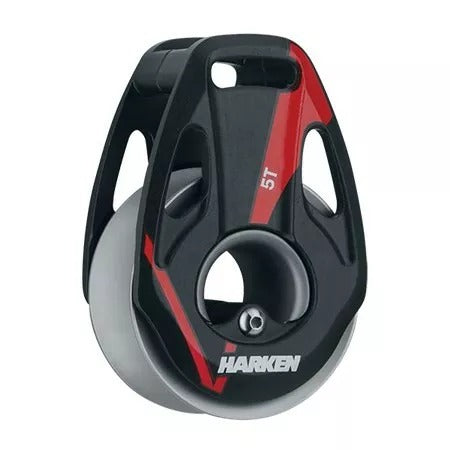

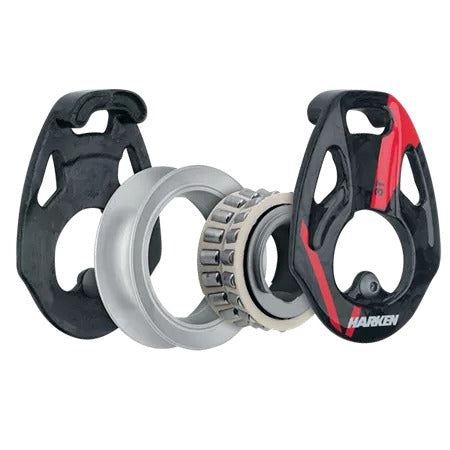

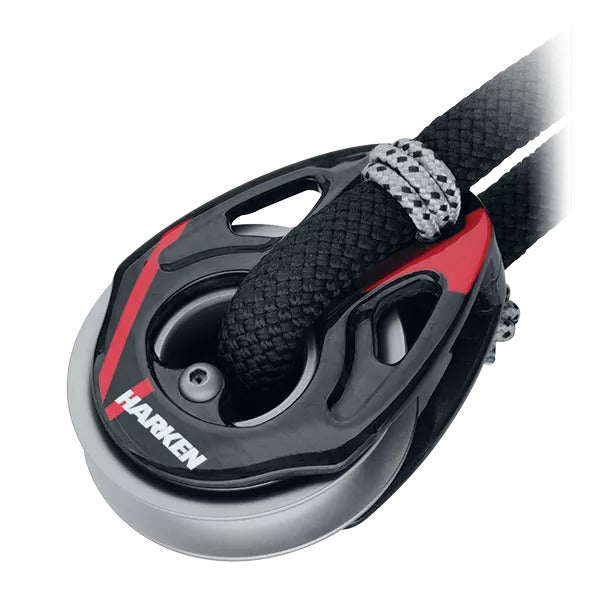

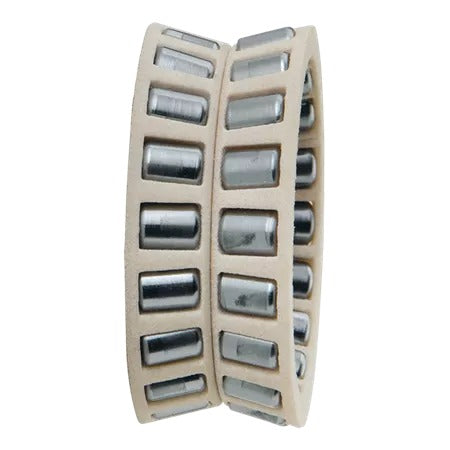

The V block delivers another breakthrough in Harken’s loop block series for Grand-Prix racers. Harken engineers have simplified the mechanics by combining the axial and thrust bearings into a single bearing set of V-shaped titanium rollers. The result is a strong, lightweight block that offers unmatched efficiency at high loads, while spinning freely at low loads for smooth easing in light air. Harken V blocks have aluminum sideplates, titanium sheave, and captive titanium roller bearings. V blocks are easy to disassemble for inspection and maintenance. Wide sheave accepts multiple lines for sail changes or a single, high-load larger line that requires a small deflection.
Technical Description
| Sheave Ø (mm) | 62 mm |
| Sheave Ø (in) | 2 7/16 in |
| Length (mm) | 94 mm |
| Length (in) | 3 3/4 in |
| Width (mm) | 37 mm |
| Width (in) | 1 7/16 in |
| Weight (g) | 260 g |
| Weight (oz) | 9.17 oz |
| Maximum line Ø (mm) | 13 mm |
| Maximum line Ø (in) | 1/2 in |
| Maximum working load (kg) | 5000 kg |
| Maximum working load (lb) | 11000 lb |
| Breaking load (kg) | 10000 kg |
| Breaking load (lb) | 22000 lb |
