Harken | SKU:
HR2634

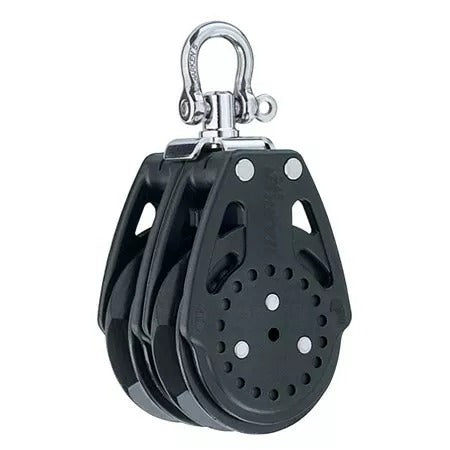

Harken 57mm Carbo Double Ratchamatic Block Swivel
Sale price
$319.95
Regular price
$370.15
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 57mm Carbo Double Ratchamatic Block Swivel
Sale price
$319.95
Regular price
$370.15
Unit price
Unavailable
Harken 57mm Carbo Double Ratchamatic Block Swivel
The Carbo Ratchamatic is a load-sensing ratchet block that rolls freely in both directions under low loads and automatically engages the ratchet as loads increase. Shifting between ratchet and light-air modes is seamless. Use the 2634 with a 402 or 403 swivel arm for a versatile two-speed mainsheet system.
Technical Description
| Sheave Ø (mm) | 57 mm |
| Sheave Ø (in) | 2 1/4 in |
| Length (mm) | 116 mm |
| Length (in) | 4 9/16 in |
| Weight (g) | 204 g |
| Weight (oz) | 7.2 oz |
| Maximum line Ø (mm) | 10 mm |
| Maximum line Ø (in) | 3/8 in |
| Shackle pin Ø (mm) | 6 mm |
| Shackle pin Ø (in) | 1/4 in |
| Maximum working load (kg) | 340 kg |
| Maximum working load (lb) | 750 lb |
| Breaking load (lb) | 1875 lb |
| Breaking load (kg) | 851 kg |
| Holding power | 10:1 |
