Harken | SKU:
HR627
Harken 57mm Small Round SS Padeye
Sale price
$128.95
Regular price
$149.55
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 57mm Small Round SS Padeye
Sale price
$128.95
Regular price
$149.55
Unit price

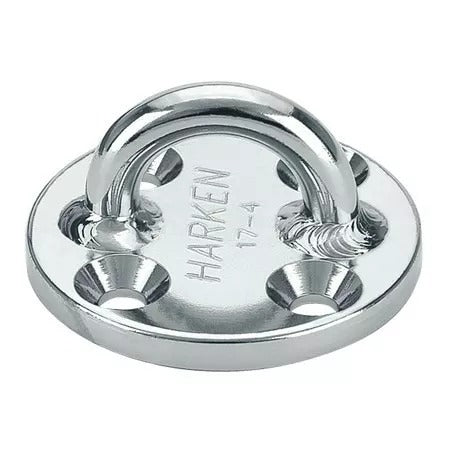

Harken 57mm Small Round SS Padeye
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. The 627, 629, and 648 padeyes are 17-4 PH stainless.

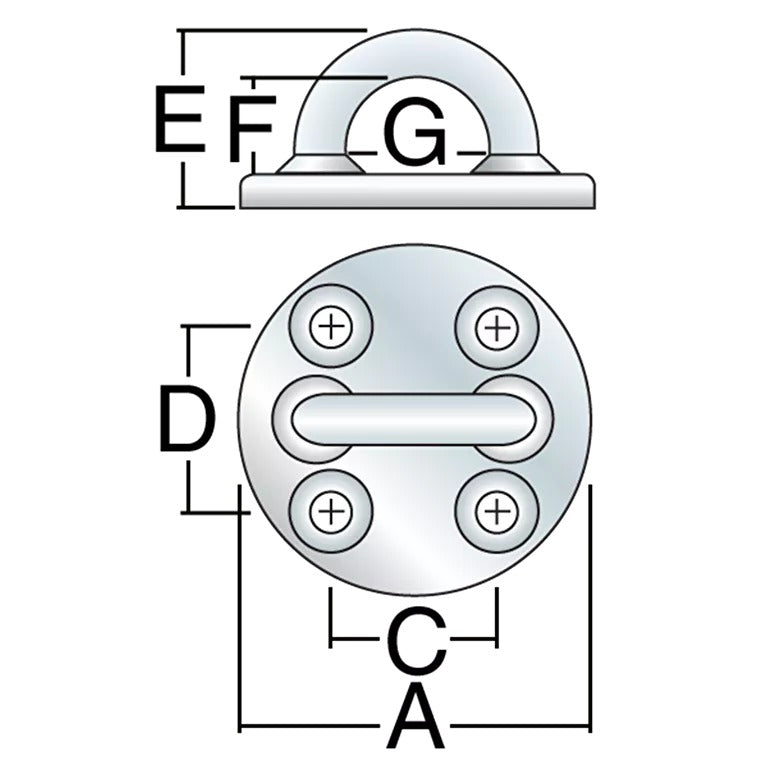

Technical Description
| Weight (g) | 118 g |
| Weight (oz) | 4.16 oz |
| Fasteners (mm) | 6 FH mm |
| Fasteners (in) | 1/4 FH in |
| A (mm) | 57 mm |
| A (in) | 2 1/4 in |
| C (mm) | 27 mm |
| C (in) | 1 1/16 in |
| D (mm) | 30 mm |
| D (in) | 1 3/16 in |
| E (mm) | 30 mm |
| E (in) | 1 3/16 in |
| F (mm) | 16 mm |
| F (in) | 5/8 in |
| G (mm) | 24 mm |
| G (in) | 1 5/16 in |

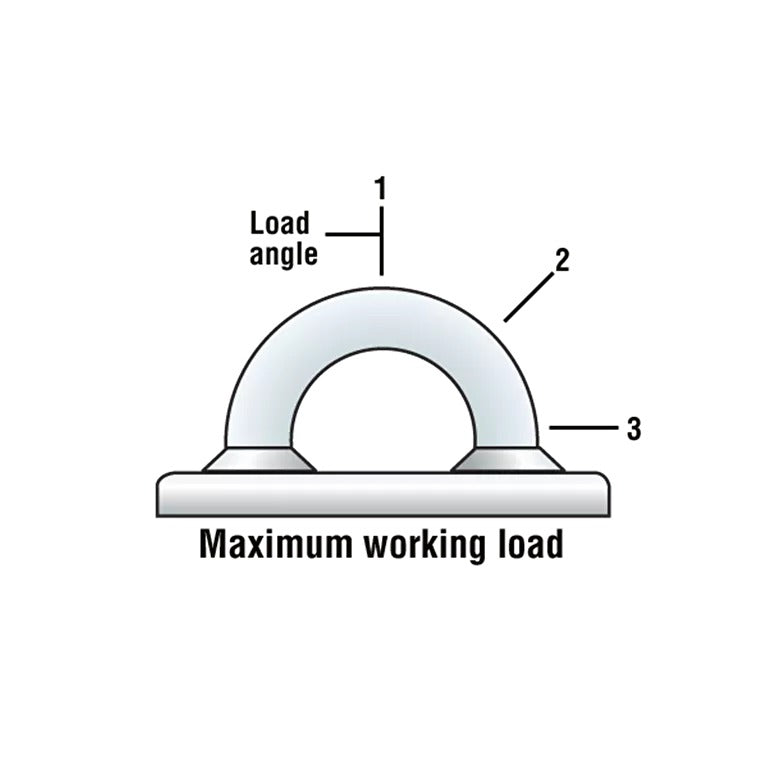

| Maximum Working Load - angle 1 (kg) | 2270 kg |
| Maximum Working Load - angle 1 (lb) | 5000 lb |
| Maximum Working Load - angle 2 (kg) | 2040 kg |
| Maximum Working Load - angle 2 (lb) | 4500 lb |
| Maximum Working Load - angle 3 (kg) | 1950 kg |
| Maximum Working Load - angle 3 (lb) | 4300 lb |
| Breaking load - angle 1 (kg) | 4535 kg |
| Breaking load - angle 1 (lb) | 10000 lb |
| Breaking load - angle 2 (kg) | 4080 kg |
| Breaking load - angle 2 (lb) | 9000 lb |
| Breaking load - angle 3 (kg) | 3900 kg |
| Breaking load - angle 3 (lb) | 8600 lb |
