Harken | SKU:
HR2132
Harken 5mm Shallow Bow Shackle
Sale price
$12.95
Regular price
$14.60
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 5mm Shallow Bow Shackle
Sale price
$12.95
Regular price
$14.60
Unit price
Unavailable
Harken 5mm Shallow Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.
Technical Description
| Weight (g) | 14.5 g |
| Weight (oz) | 0.51 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (kg) | 1080 kg |
| Breaking load (lb) | 2380 lb |

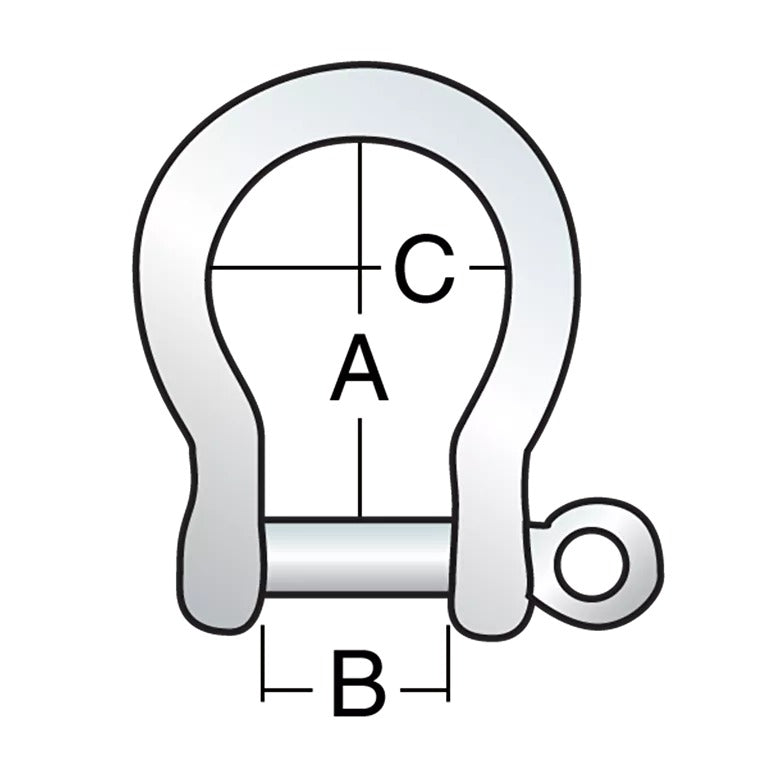

| A (mm) | 17 mm |
| A (in) | 11/16 in |
| B (mm) | 11 mm |
| B (in) | 7/16 in |
| C (mm) | 14 mm |
| C (in) | 9/16 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
