Harken 60mm Tulip Sheave
Sale price
$188.95
Regular price
$215.00
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 60mm Tulip Sheave
Sale price
$188.95
Regular price
$215.00
Unit price

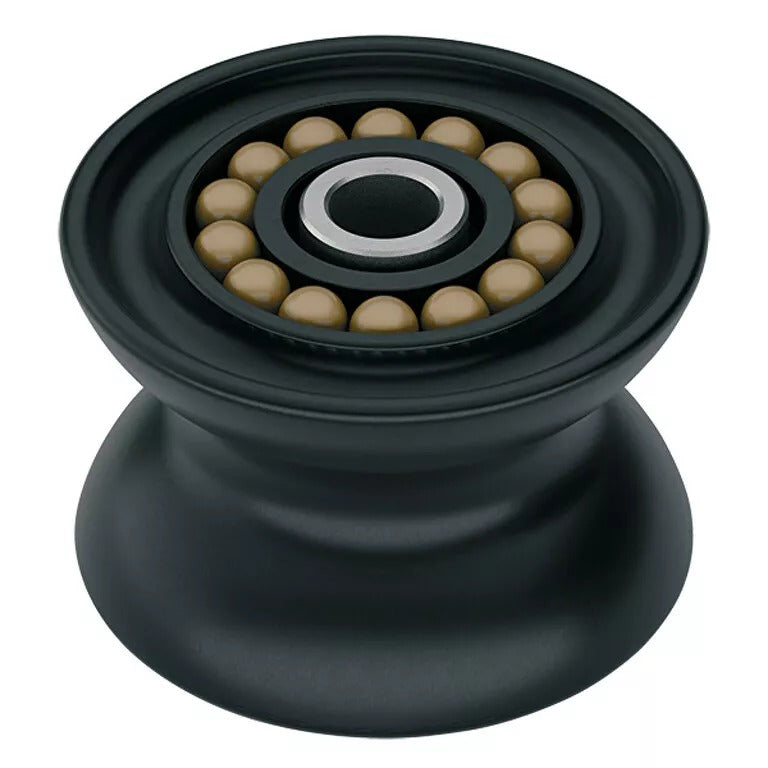

Harken 60mm Tulip Sheave
Tulip sheaves are ideal for applications where slight lead angle misalignments would otherwise lead to off-center loading and increased function. The line friendly wide design is also helpful where the lead angle changes as it does some outhaul systems. Aluminum sheave material with a pressed IGUS journal bearing, and Torlon ball bearings to support side loads
Technical Description
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Fasteners (mm) | 10 mm |
| Fasteners (in) | 3/8 in |
| Sheave Ø (mm) | 60 mm |
| Sheave Ø (in) | 2 3/8 in |
| Width (mm) | 41 mm |
| Width (in) | 1 5/8 in |
| Weight (g) | 186.3 g |
| Weight (oz) | 6.7 oz |
| Center pin Ø (mm) | 10 mm |
| Center pin Ø (in) | 3/8 in |
| Maximum working load (kg) | 1633 kg |
| Maximum working load (lb) | 3600 lb |
| Breaking load (kg) | 3266 kg |
| Breaking load (lb) | 7200 lb |
