Harken 70 Electric Self-Tailing Radial Bronze Winch 3 Speed 12V, Ho...
Harken 70 Electric Self-Tailing Radial Bronze Winch 3 Speed 12V, Horizontal, Left Mount
Electric Radial winches let you relax in luxury and trim any size sail with the push of a button. The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails. High-strength composite roller bearings and bushings reduce friction under load. Load-carrying gears and pins are 17-4 PH stainless steel for strength, corrosion resistance. Motors attach to central drive shaft and drive through winch gears for two-speed mechanical advantage. Low-power first gear for fast trimming; higher-power second gear for fine-tuning loaded sheets. Efficient design allows smaller motor size.
Technical Description
| Material | Bronze |
| Configuration | Self-tailing |
| Speed | 3 |
| Drum Ø (mm) | 130 mm |
| Drum Ø (in) | 5 1/8 in |
| Base Ø (mm) | 240 mm |
| Base Ø (in) | 9 7/16 in |
| Height (mm) | 264 mm |
| Height (in) | 10 3/8 in |
| Weight of Winch and Motor (kg) | 29 |
| Weight of Winch and Motor (lb) | 64 |
| Motor weight (kg) | 10.8 kg |
| Motor weight (lb) | 23.9 lb |
| Line entry height (mm) | 115 mm |
| Line entry height (in) | 4 1/2 in |
| Minimum line Ø (mm) | 10 mm |
| Minimum line Ø (in) | 3/8 in |
| Maximum line Ø (mm) | 18 mm |
| Maximum line Ø (in) | 11/16 in |
| Fastener circle (mm) | 205 mm |
| Fastener circle (in) | 8 1/8 in |
| Fasteners (mm) | M8 SH mm |
| Fasteners (in) | 5/16 SH in |
| Number of fasteners | 6 |
| Gear ratio - 1 | 2.30 |
| Gear ratio - 2 | 5.70 |
| Gear ratio - 3 | 18.50 |
| Power ratio - 1 | 9.00 |
| Power ratio - 2 | 22.20 |
| Power ratio - 3 | 72.00 |
| Available power | Electric horizontal 12V - left mount |
| Voltage (V) | 12 |

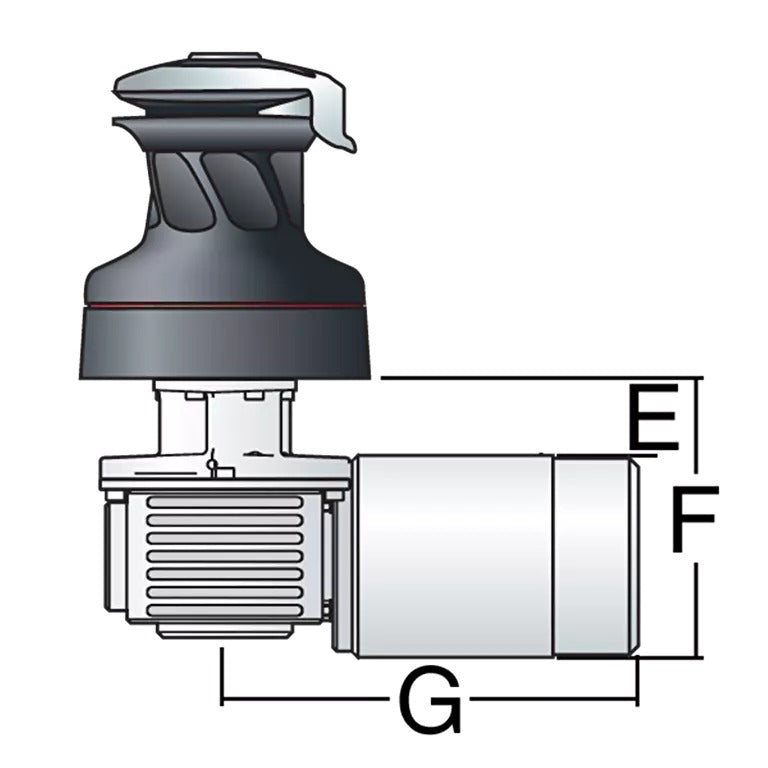

| E (mm) | 69 mm |
| E (in) | 2 3/4 in |
| F (mm) | 181 mm |
| F (in) | 7 1/8 in |
| G (mm) | 244 mm |
| G (in) | 9 5/8 in |
