Harken | SKU:
HR1586
Harken 76mm High-Load Single Midrange Block
Sale price
$187.95
Regular price
$217.95
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 76mm High-Load Single Midrange Block
Sale price
$187.95
Regular price
$217.95
Unit price
Unavailable

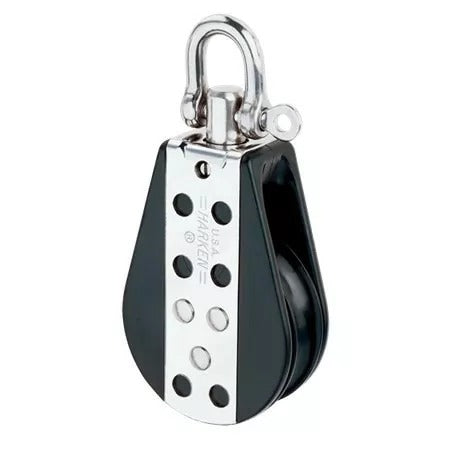

Harken 76mm High-Load Single Midrange Block
Midrange blocks’ robust construction makes them ideal to handle the high loads found on medium and large offshore boats. Sheave runs exclusively on a ball bearing system for fast trim and release under any load.
Technical Description
| Sheave Ø (mm) | 76 mm |
| Sheave Ø (in) | 3 in |
| Length (mm) | 156 mm |
| Length (in) | 6 1/8 in |
| Weight (g) | 367 g |
| Weight (oz) | 13 oz |
| Maximum line Ø (mm) | 14 mm |
| Maximum line Ø (in) | 9/16 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
| Maximum working load (kg) | 1043 kg |
| Maximum working load (lb) | 2300 lb |
| Breaking load (kg) | 2268 kg |
| Breaking load (lb) | 5000 lb |
