Harken 79mm Small Diamond SS Padeye
Sale price
$41.95
Regular price
$48.45
Unit price

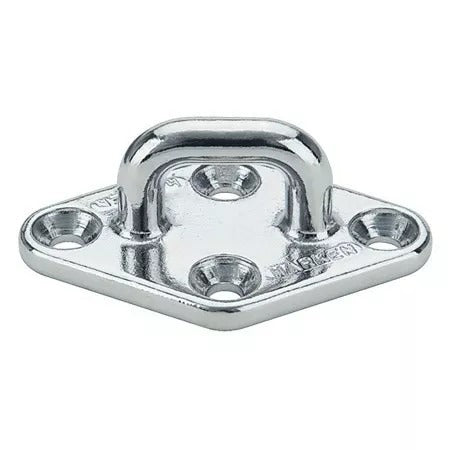

Harken 79mm Small Diamond SS Padeye
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.

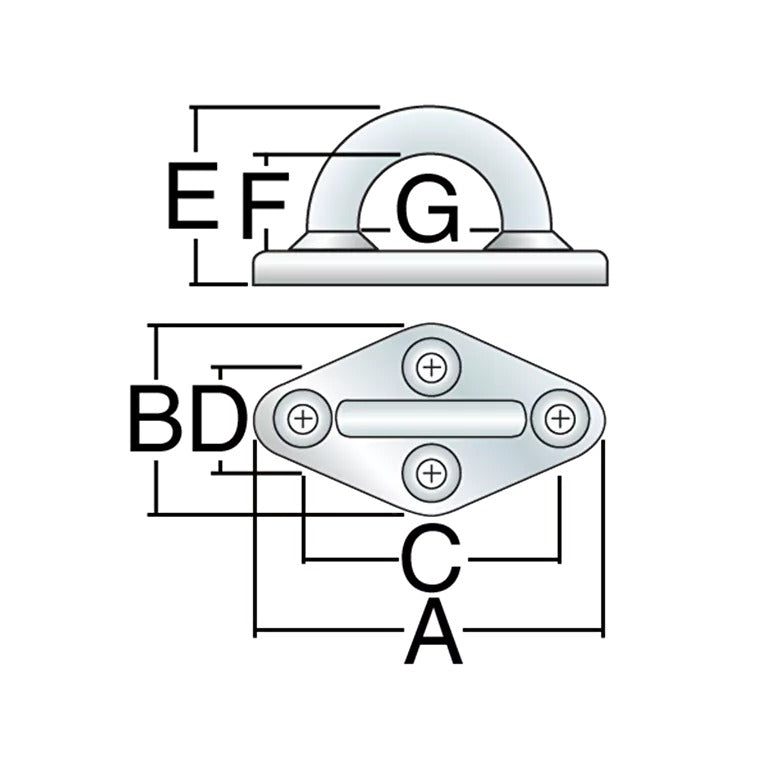

Technical Description
| Weight (g) | 135 g |
| Weight (oz) | 4.75 oz |
| Fasteners (mm) | 6 FH mm |
| Fasteners (in) | 1/4 FH in |
| A (mm) | 79 mm |
| A (in) | 3 1/8 in |
| B (mm) | 51 mm |
| B (in) | 2 in |
| C (mm) | 60 mm |
| C (in) | 2 3/8 in |
| D (mm) | 32 mm |
| D (in) | 1 1/4 in |
| E (mm) | 30 mm |
| E (in) | 1 3/16 in |
| F (mm) | 14 mm |
| F (in) | 9/16 in |
| G (mm) | 22 mm |
| G (in) | 7/8 in |

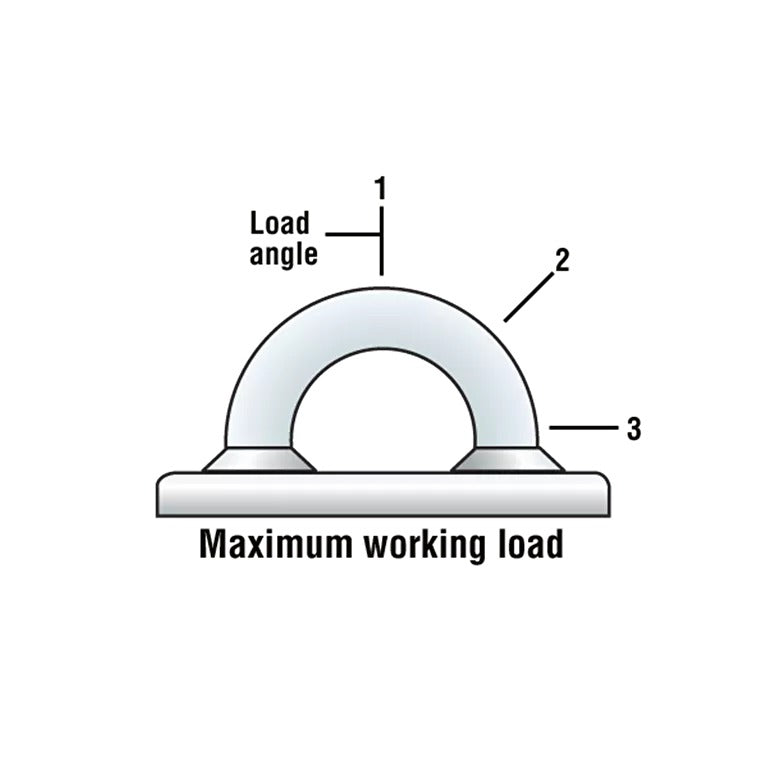

| Maximum Working Load - angle 1 (kg) | 1770 kg |
| Maximum Working Load - angle 1 (lb) | 3800 lb |
| Maximum Working Load - angle 2 (kg) | 2270 kg |
| Maximum Working Load - angle 2 (lb) | 5000 lb |
| Maximum Working Load - angle 3 (kg) | 1950 kg |
| Maximum Working Load - angle 3 (lb) | 4300 lb |
| Breaking load - angle 1 (kg) | 3540 kg |
| Breaking load - angle 1 (lb) | 7800 lb |
| Breaking load - angle 2 (kg) | 4535 kg |
| Breaking load - angle 2 (lb) | 10000 lb |
| Breaking load - angle 3 (kg) | 3900 kg |
| Breaking load - angle 3 (lb) | 8600 lb |
