Harken | SKU:
HR2117
Harken 8mm Bow Shackle
Sale price
$22.95
Regular price
$26.40
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 8mm Bow Shackle
Sale price
$22.95
Regular price
$26.40
Unit price
Unavailable

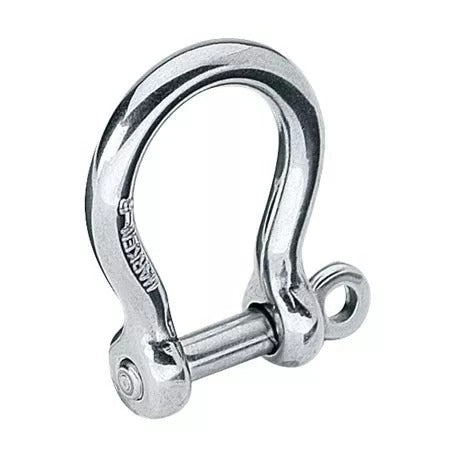

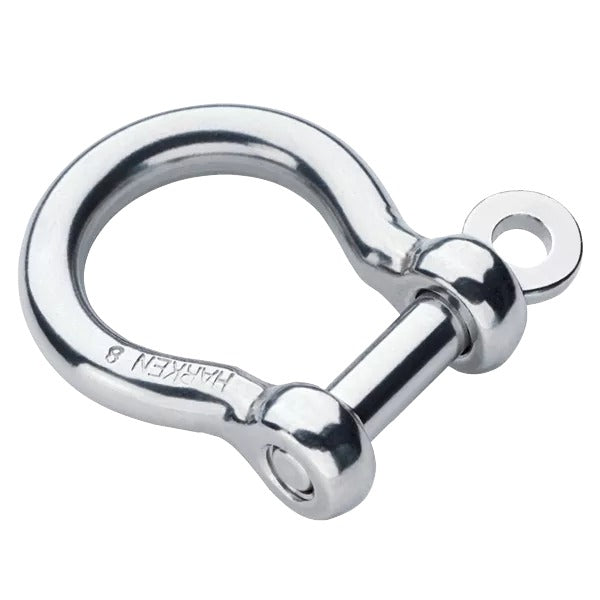

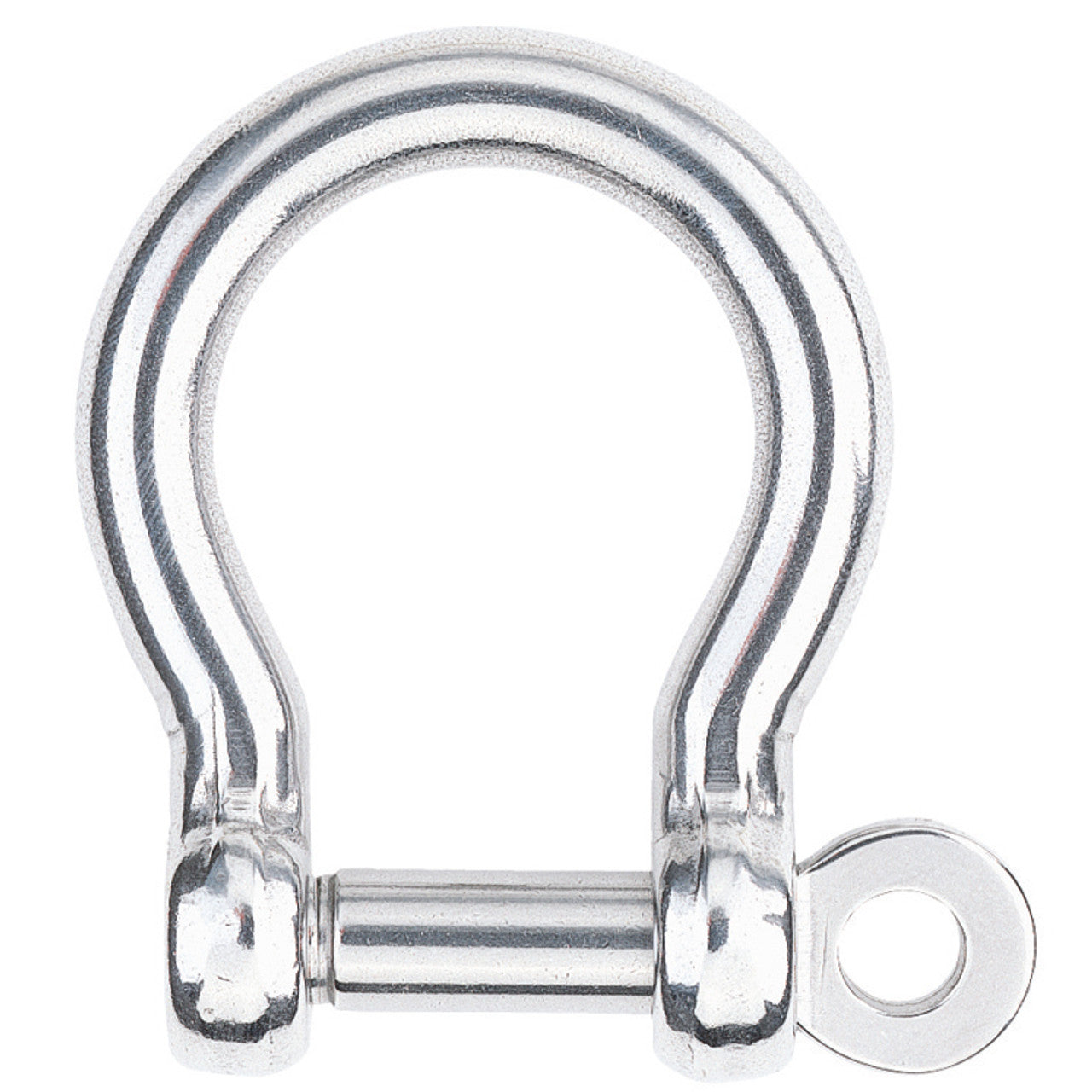

Harken 8mm Bow Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.
Technical Description
| Weight (g) | 70.5 g |
| Weight (oz) | 2.48 oz |
| Maximum working load (kg) | 1380 kg |
| Maximum working load (lb) | 3040 lb |
| Breaking load (kg) | 2760 kg |
| Breaking load (lb) | 6080 lb |

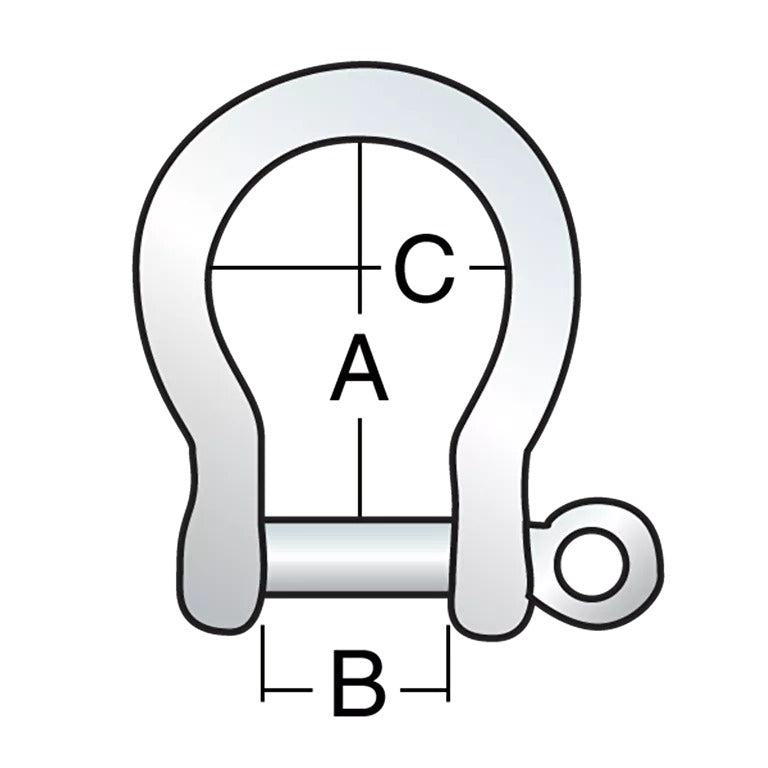

| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| B (mm) | 17 mm |
| B (in) | 11/16 in |
| C (mm) | 29 mm |
| C (in) | 1 1/8 in |
| Shackle pin Ø (mm) | 8 mm |
| Shackle pin Ø (in) | 5/16 in |
