Harken | SKU:
HR689
Harken 98mm Large Diamond SS Padeye
Sale price
$51.95
Regular price
$59.80
Unit price
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Harken 98mm Large Diamond SS Padeye
Sale price
$51.95
Regular price
$59.80
Unit price

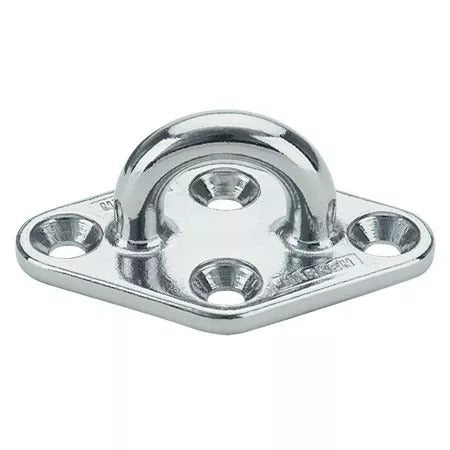

Harken 98mm Large Diamond SS Padeye
Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.
Technical Description
| Weight (g) | 213 g |
| Weight (oz) | 7.5 oz |
| Fasteners (mm) | 8 FH mm |
| Fasteners (in) | 5/16 FH in |

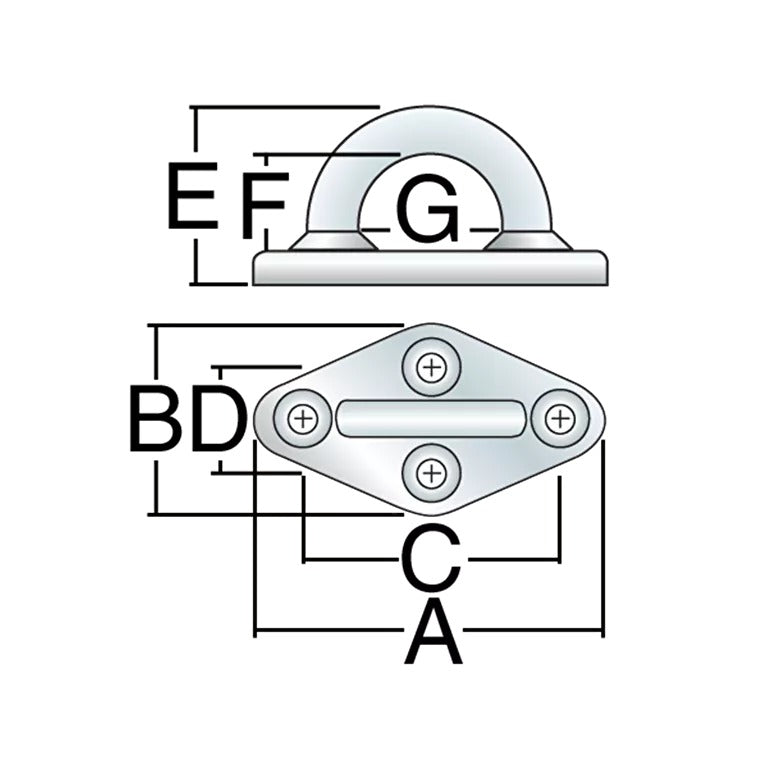

| A (mm) | 98 mm |
| A (in) | 3 7/8 in |
| B (mm) | 59 mm |
| B (in) | 2 5/16 in |
| C (mm) | 73 mm |
| C (in) | 2 7/8 in |
| D (mm) | 35 mm |
| D (in) | 1 3/8 in |
| E (mm) | 40 mm |
| E (in) | 1 9/16 in |
| F (mm) | 22 mm |
| F (in) | 7/8 in |
| G (mm) | 27 mm |
| G (in) | 1 1/16 in |

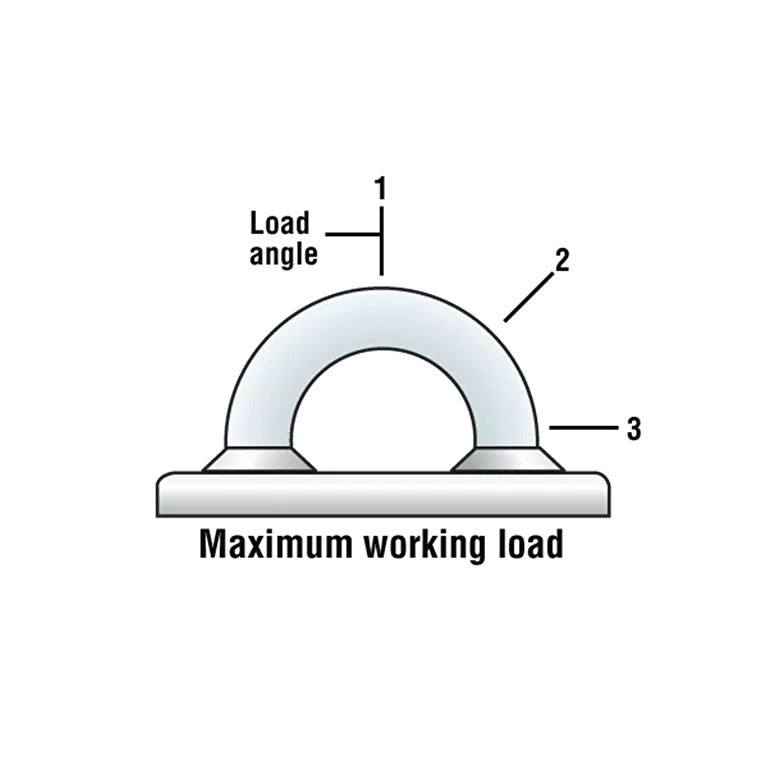

| Maximum Working Load - angle 1 (kg) | 3855 kg |
| Maximum Working Load - angle 1 (lb) | 8500 lb |
| Maximum Working Load - angle 2 (kg) | 3628 kg |
| Maximum Working Load - angle 2 (lb) | 8000 lb |
| Maximum Working Load - angle 3 (kg) | 3540 kg |
| Maximum Working Load - angle 3 (lb) | 7800 lb |
| Breaking load - angle 1 (kg) | 8618 kg |
| Breaking load - angle 1 (lb) | 19000 lb |
| Breaking load - angle 2 (kg) | 7800 kg |
| Breaking load - angle 2 (lb) | 17200 lb |
| Breaking load - angle 3 (kg) | 7075 kg |
| Breaking load - angle 3 (lb) | 15600 lb |
