Harken Dinghy Vang Lower Unit
Sale price
$156.95
Regular price
$177.65
Unit price

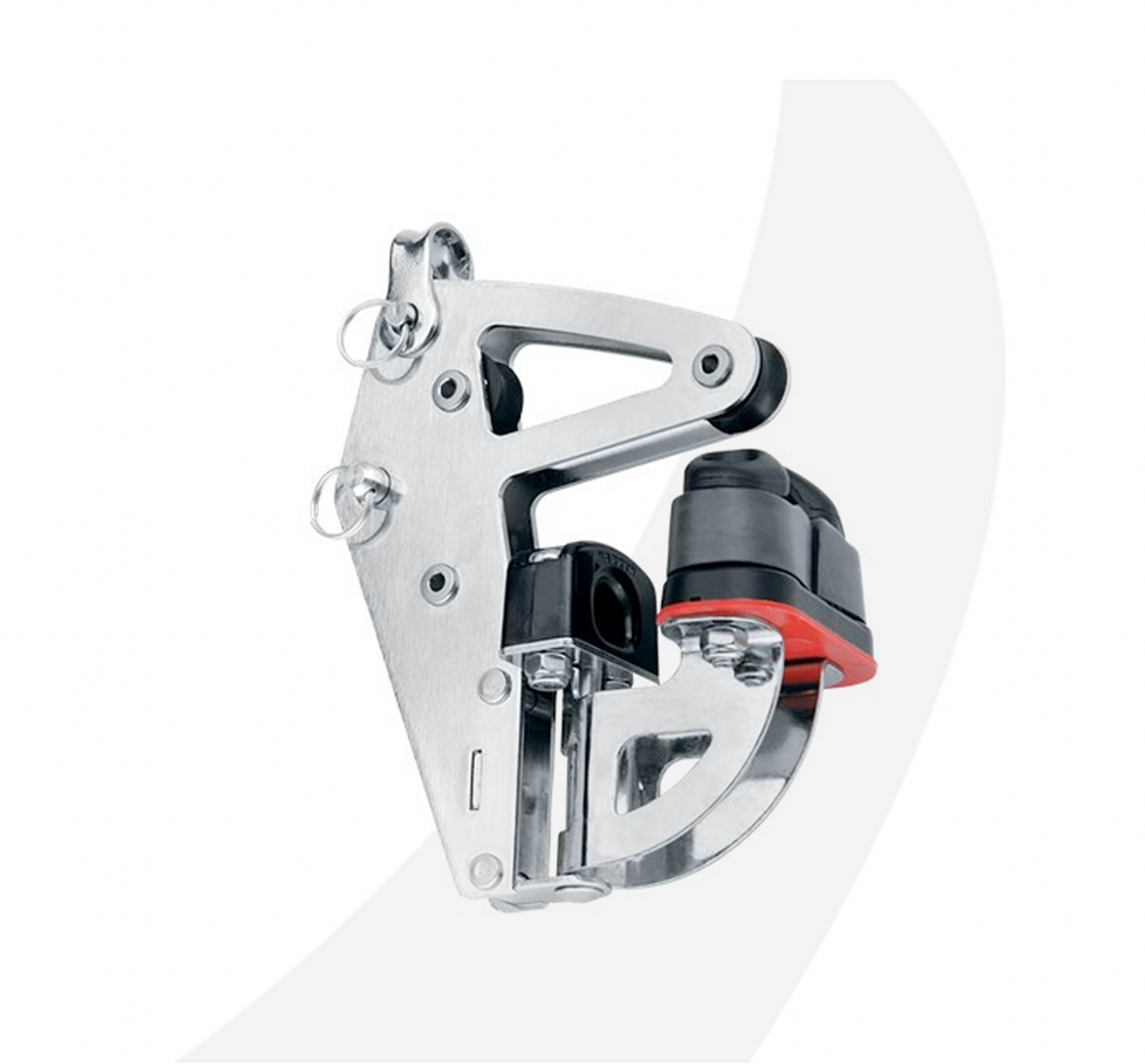

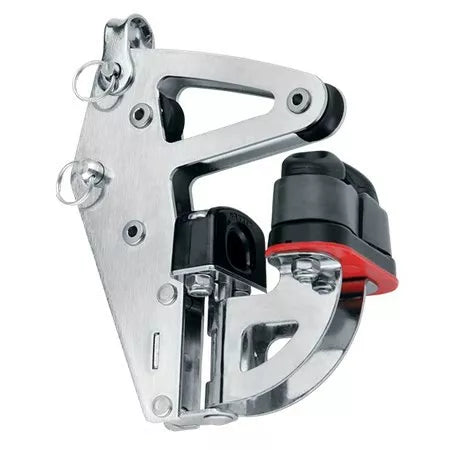

Harken Dinghy Vang Lower Unit
The dinghy vang features 16 mm sheaves with stainless ball bearing for high loads. The assembly includes a 468 Micro Cam-Matic cleat that allows precise trimming. It’s easy to cleat because it pivots for a fair lead. The unit connects to a mast bracket with a 1/4" pin. The system provides a 12:1 purchase when cascaded with 4:1 blocks. The vang lower unit is available by itself or as part of a kit.
Technical Description
| Weight (g) | 229 g |
| Weight (oz) | 8.1 oz |
| Maximum sail area (m²) | 11.6 m² |
| Maximum sail area (ft²) | 125 ft² |
| Maximum working load (kg) | 181 kg |
| Maximum working load (lb) | 400 lb |
| Breaking load (kg) | 454 kg |
| Breaking load (lb) | 1000 lb |
