The Hayn 12ETFBJ-X open-body turnbuckle connects eye toggle jaws at both ends for standing rigging applications. It combines 316 stainless steel end fittings with a chromed bronze body and accommodates 1/4" to 5/16" wire.
Articulating ends allow alignment at both connections. The open body provides access to inspect thread engagement during adjustment.
Specifications
| Manufacturer part number | 12ETFBJ-X |
|---|---|
| Configuration | Eye toggle jaw to eye toggle jaw |
| Body | Open, chromed bronze |
| End fittings | 316 stainless steel |
| Wire diameter | 1/4" to 5/16" |
| Thread | 1/2-20 |
| Pin diameter | 1/2" |
| Open length | 17-5/8" |
| Closed length | 13-5/8" |
| Body length | 6-1/2" |
| Jaw depth | 1-7/16" |
| Jaw gap | 1/2" |
| Jaw width | 1-5/32" |
| Product weight | 2.10 lb |

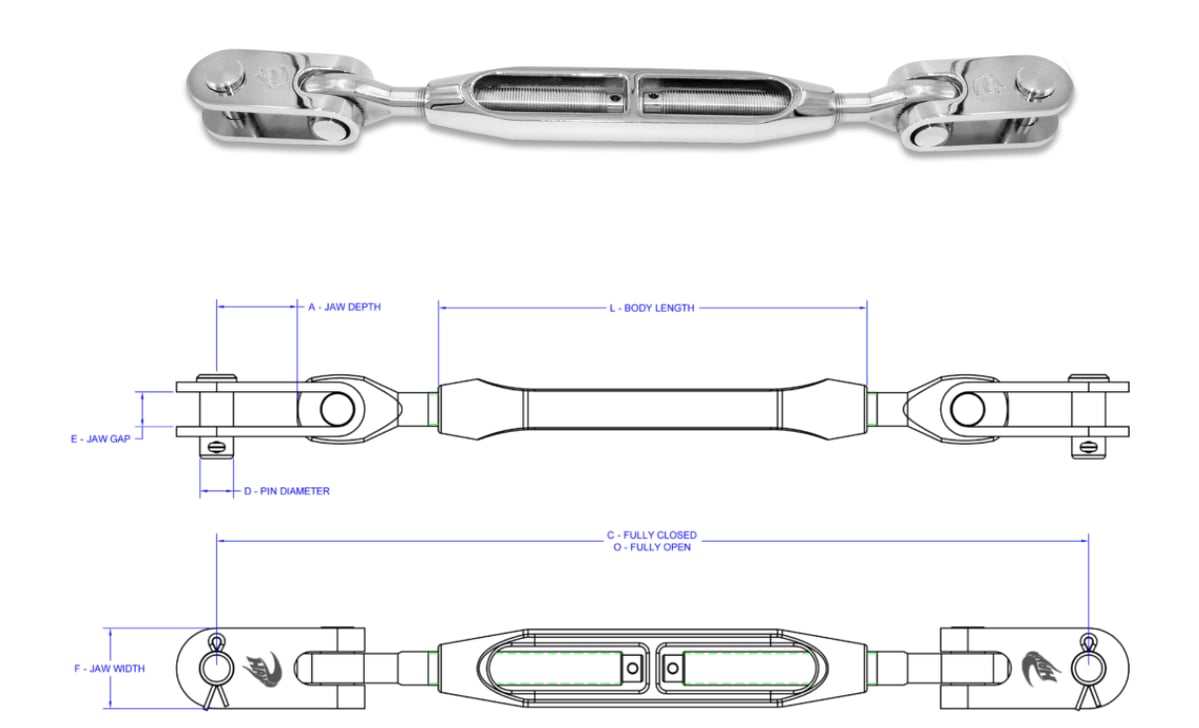

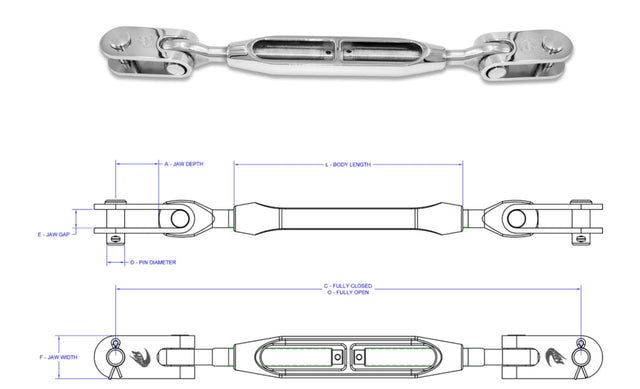

Manufacturer image illustrates the product series.
