Hayn 34ETFBJ-XX Eye Toggle to Eye Toggle Open Body Turnbuckle, 3/4" Pin
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
The Hayn 34ETFBJ-XX open-body turnbuckle connects eye toggle jaws at both ends for standing rigging applications. It combines 316 stainless steel end fittings with a chromed bronze body and accommodates 7/16" to 1/2" wire.
Articulating ends allow alignment at both connections. The open body provides access to inspect thread engagement during adjustment.
Specifications
| Manufacturer part number | 34ETFBJ-XX |
|---|---|
| Configuration | Eye toggle jaw to eye toggle jaw |
| Body | Open, chromed bronze |
| End fittings | 316 stainless steel |
| Wire diameter | 7/16" to 1/2" |
| Thread | 3/4-16 |
| Pin diameter | 3/4" |
| Open length | 27-1/8" |
| Closed length | 21-3/16" |
| Body length | 10" |
| Jaw depth | 2-11/16" |
| Jaw gap | 3/4" |
| Jaw width | 1-7/8" |
| Product weight | 7.65 lb |

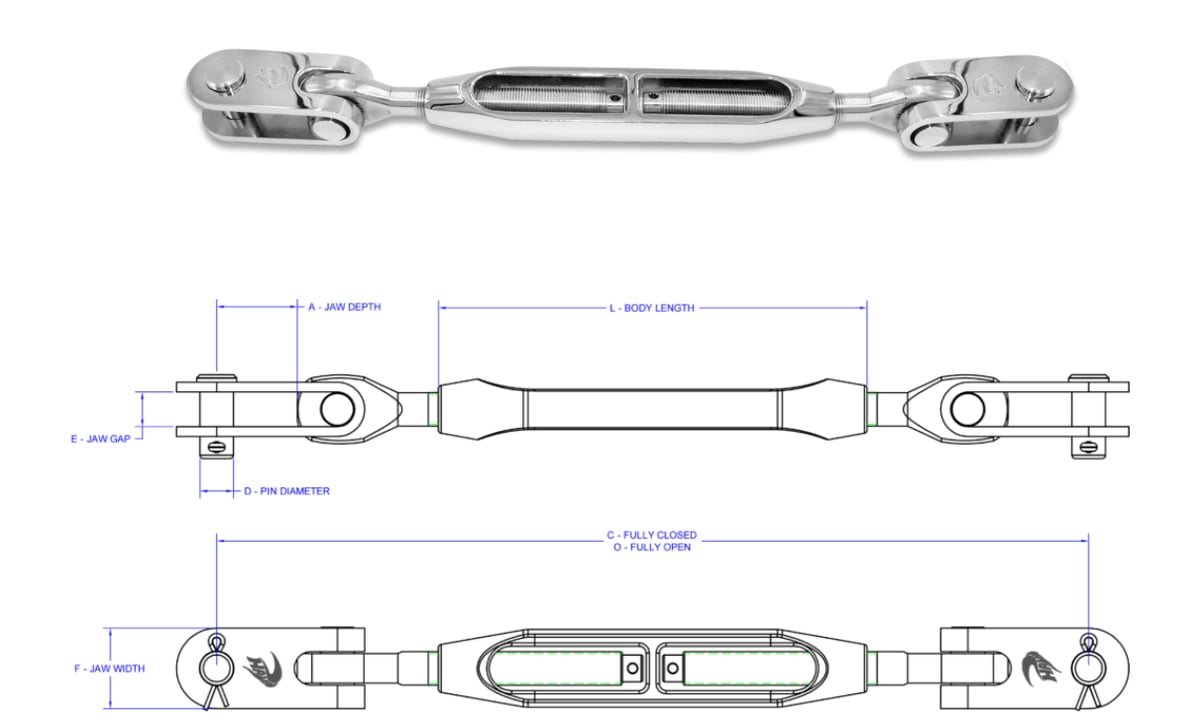

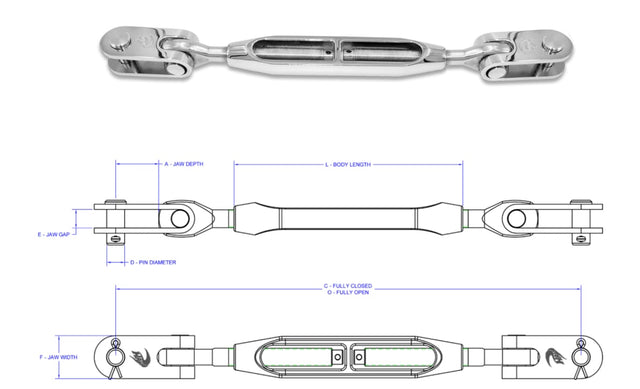

Manufacturer image illustrates the product series.
