Hayn Marine Turnbuckle Eye Toggle
An excellent combination of stainless steel and bronze, retaining the qualities of strength and corrosion resistance while adding an exceptional non-galling feature. All bodies are highly poished chrome, while the eye toggles are stainless steel.

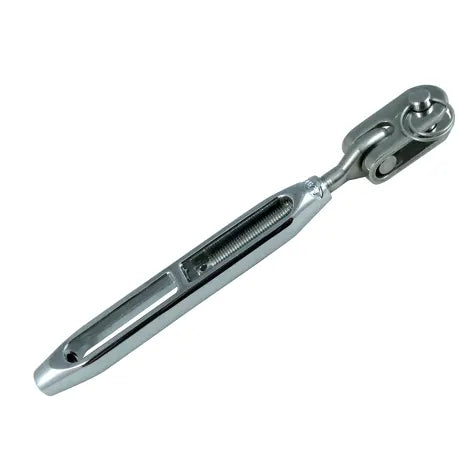

This unit consistes of a turnbuckle body with a left-hand eye toggle jaw at the lower end. Also known as a partial turnbuckle or turnbuckle less stud, use this turnbuckle on new rigging when terminating wires with mechanical stud terminals, such as Sta-loks, or if re-rigging and your wires terminate in a swaged stud, which you plan to re-use.
Traditionally, the left-hand threaded terminal of a turnbuckle is used as the lower end and is attached to the chainplate. As a result, stud terminals on rigging wires tend to be right-handed. Beware if you have a boat built in Taiwan, however, as these yards sometimes use the right hand end of the turnbuckle as the lower one, with left-handed studs on the wire.
• Bodies come standard in highly polished chrome over forged bronze, and a 316 stainless steel stud which eliminates stainless on stainless galling
• Especially useful when used with field maintainable mechanical wire studs for open ocean cruising
The chromed bronze open body resists corrosion and prevents galling at the threaded interface while letting riggers confirm thread engagement at both ends without removing the fitting — a practical advantage on a standing rigging turnbuckle that carries continuous load. The fixed eye end connects to a chainplate bolt while the toggle jaw articulates freely to prevent side-loading at the opposite connection point, and extended jaw depth options (-X, -XX, -XXX suffixes) are available on most sizes for installations where standard clearance is insufficient. One of the most comprehensive turnbuckle ranges in the Hayn catalog, covering wire diameters from 3/32" through 1" across 20 configurations with thread sizes from 1/4-28 through 1-3/8-12 and pin diameters from 1/4" through 1-3/8".

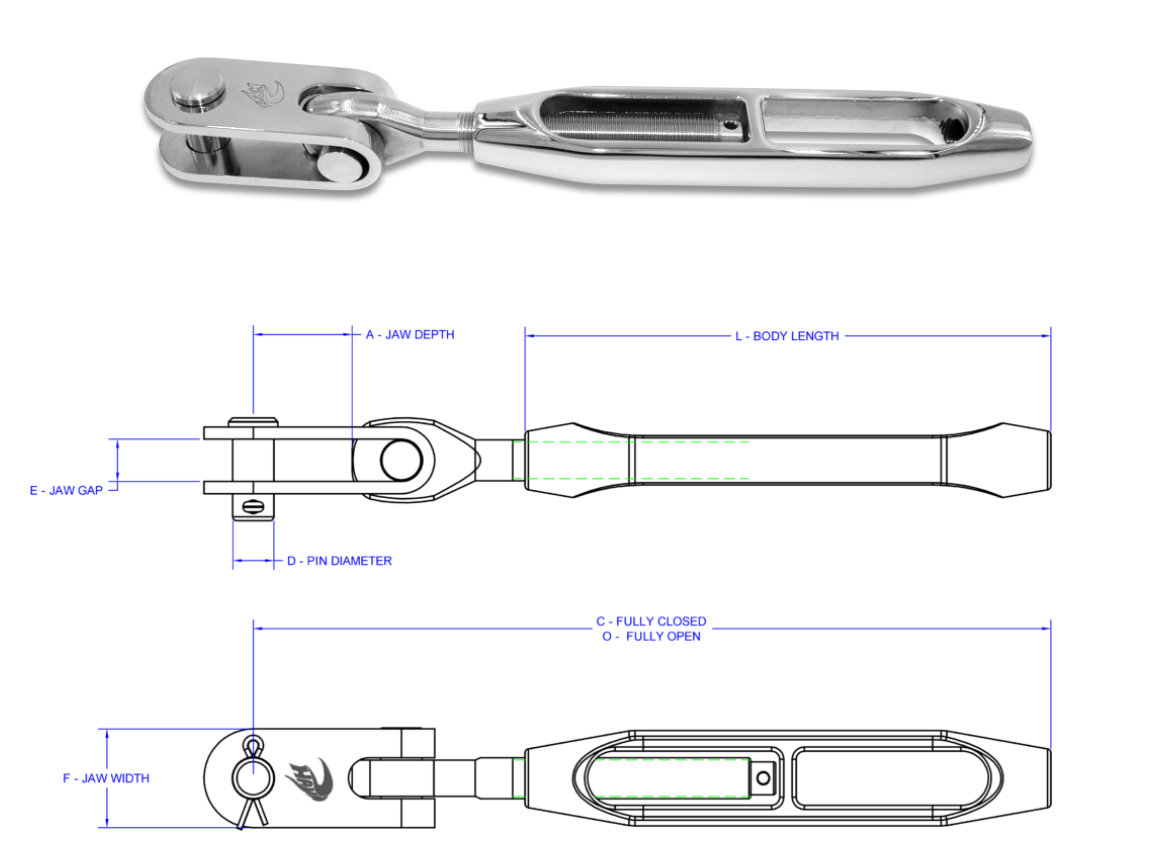

| Part # | Wire ⌀ | Thread | D-Pin ⌀ | O-Open Length | C-Closed Length | L-Body | A-Jaw Depth | E-Jaw Gap | F-Jaw Width | Weight lbs. |
|---|---|---|---|---|---|---|---|---|---|---|
| 14EFBJ | 3/32″ – 5/32″ | 1/4-28 | 1/4″ | 7-9/16″ | 6-1/16″ | 4-1/2″ | 9/16″ | 1/4″ | 5/8″ | 0.21 |
| 516EFBJ | 5/32″ – 3/16″ | 5/16-24 | 5/16″ | 8-7/16″ | 6-13/16″ | 5″ | 5/8″ | 5/16″ | 3/4″ | 0.35 |
| 38EFBJ | 3/16″ – 1/4″ | 3/8-24 | 3/8″ | 9-1/2″ | 7-3/4″ | 5-1/2″ | 3/4″ | 3/8″ | 7/8″ | 0.72 |
| 38EFBJ-X | 3/16″ – 1/4″ | 3/8-24 | 3/8″ | 10 1/8″ | 8 1/8″ | 5-1/2″ | 1 1/8″ | 3/8″ | 7/8″ | 0.75 |
| 716EFBJ | 7/32″ – 9/32″ | 7/16-20 | 7/16″ | 9-15/16″ | 8-3/16″ | 5-7/8″ | 3/4″ | 7/16″ | 1-1/16″ | 0.73 |
| 12EFBJ | 1/4″ – 5/16″ | 1/2-20 | 1/2″ | 11-3/4″ | 9-3/4″ | 6-1/2″ | 1-1/8″ | 1/2″ | 1-5/32″ | 1.26 |
| 12EFBJ-X | 1/4″ – 5/16″ | 1/2-20 | 1/2″ | 1′-1/16″ | 10 1/16″ | 6-1/2″ | 1-7/16″ | 1/2″ | 1-5/32″ | 1.48 |
| 12EFBJ-XX | 1/4″ – 5/16″ | 1/2-20 | 1/2″ | 1′-1/4″ | 10 1/4″ | 6-1/2″ | 1-5/8″ | 1/2″ | 1-5/32″ | 1.50 |
| 58EFBJ | 5/16″ – 3/8″ | 5/8-18 | 5/8″ | 1′-2 5/8″ | 1′-0 1/8″ | 8″ | 1-1/2″ | 5/8″ | 1-1/2″ | 2.33 |
| 58EFBJ-X | 5/16″ – 3/8″ | 5/8-18 | 5/8″ | 1′-2 7/8″ | 1′-0 3/8″ | 8″ | 1-3/4″ | 5/8″ | 1-1/2″ | 2.75 |
| 58EFBJ-XX | 5/16″ – 3/8″ | 5/8-18 | 5/8″ | 1′-3 11/16″ | 1′-1 3/16″ | 8″ | 2 9/16″ | 5/8″ | 1-1/2″ | 2.88 |
| 34EFBJ | 7/16″ – 1/2″ | 3/4-16 | 3/4″ | 1′-5 13/16″ | 1′-2 13/16″ | 10″ | 1-7/8″ | 3/4″ | 1-7/8″ | 4.22 |
| 34EFBJ-X | 7/16″ – 1/2″ | 3/4-16 | 3/4″ | 1′-6 1/8″ | 1′-3 1/8″ | 10″ | 2 3/16″ | 3/4″ | 1-7/8″ | 5.10 |
| 34EFBJ-XX | 7/16″ – 1/2″ | 3/4-16 | 3/4″ | 1′-6 5/8″ | 1′-3 5/8″ | 10″ | 2 11/16″ | 3/4″ | 1-7/8″ | 5.22 |
| 34EFBJ-XXX | 7/16″ – 1/2″ | 3/4-16 | 3/4″ | 1′-6 5/16″ | 1′-3 5/16″ | 10″ | 3″ | 3/4″ | 1-7/8″ | 5.31 |
| 78EFBJ | 1/2″ – 9/16″ | 7/8-14 | 7/8″ | 1′-10 1/16″ | 1′-6 5/16″ | 1′-0 7/16″ | 2-7/8″ | 7/8″ | 2-3/8″ | 7.45 |
| 1EFBJ | 9/16″ – 5/8″ | 1-12 | 1″ | 2′-0 9/16″ | 1′-8 1/16″ | 1′-2 3/16″ | 2-5/8″ | 1″ | 2-1/2″ | 10.40 |
| 118EFBJ | 3/4″ | 1-1/8-12 | 1-1/8″ | 2′-3 5/16″ | 1′-10 9/16″ | 1′-4″ | 2-3/4″ | 1-1/8″ | 2-3/4″ | 15.47 |
| 114EFBJ | 7/8″ | 1-1/4-12 | 1-1/4″ | 2′-7 3/8″ | 2′-2 1/8″ | 1′-5 7/8″ | 3-7/8″ | 1-1/4″ | 3-1/4″ | 22.20 |
| 138EFBJ | 1″ | 1-3/8-12 | 1-3/8″ | 2′-10 1/16″ | 2′-4 1/16″ | 1′-7 1/2″ | 4-5/16″ | 1-3/8″ | 4″ | 29.51 |
Increased jaw depths are available. Call for details.
