ILCA | SKU:
ILCA-41525
ILCA Cunningham System PRO
Regular price
$166.10
Unit price
Unavailable
Not available for expedited shipping.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
ILCA Cunningham System PRO
Regular price
$166.10
Unit price
Unavailable

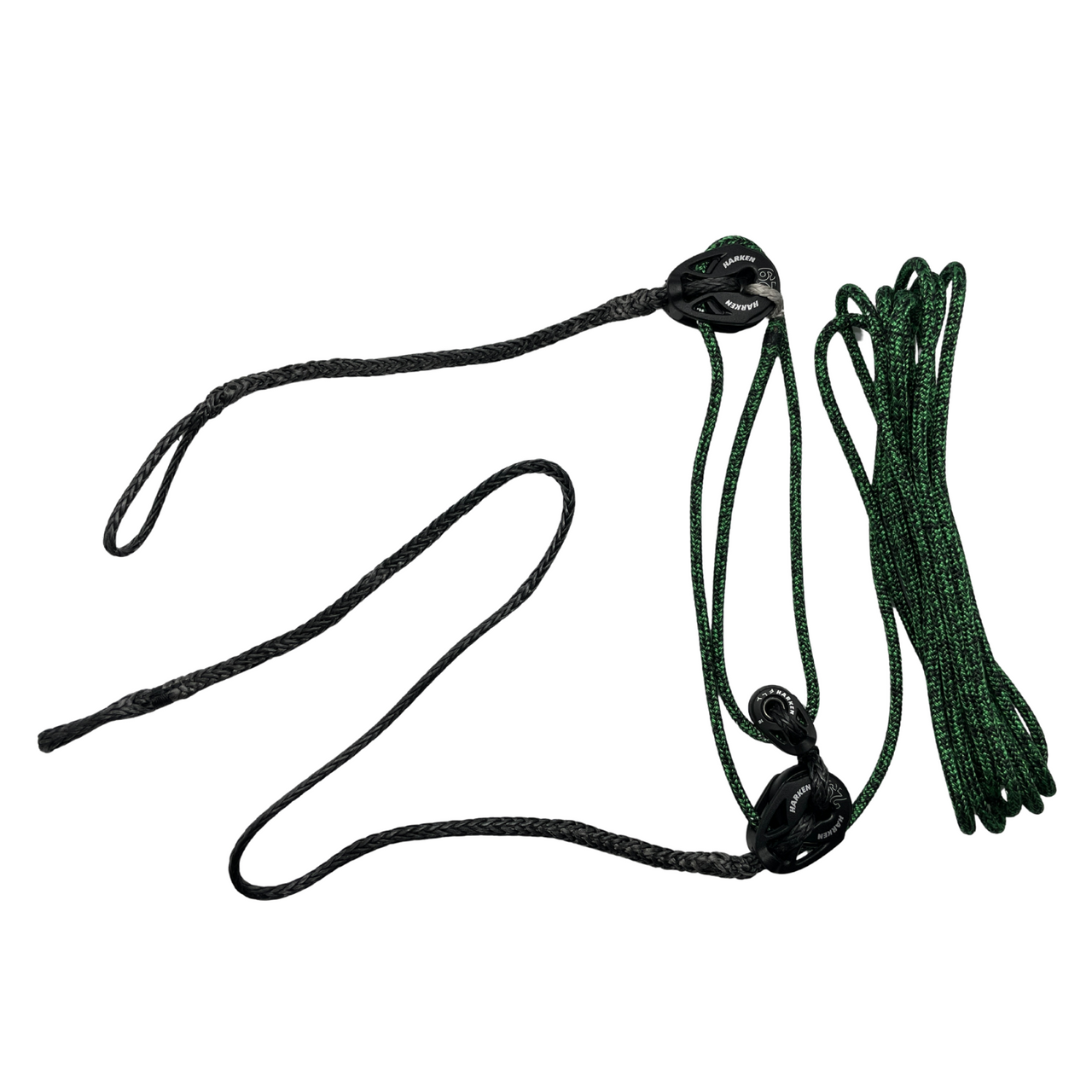

Upgrade your cunningham to a spliced 8:1 solution! Zim Sailing's Pro Cunningham System comes standard on every Zim Pro ILCA, spliced with Harken Carbo blocks to deliver top-of-the-line performnace. Our Pro Cunningham System includes Kingfisher Eveo Race line and Dyneema, spliced to 18mm and 29mm Harken Carbo blocks.

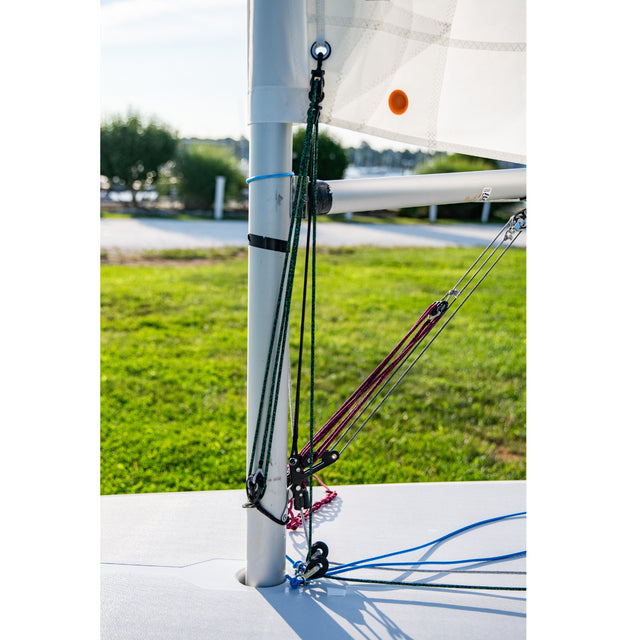

How to Rig:
- Install lower block around mast section by passing integrated control line and block through the spliced eye.
- Set block to port or starboard side, depending on how you prefer to set up your controls.
- With your mast and sail up, take the Dyneema line (with 29mm and 18mm blocks) and pass the loop through the grommet in the tack of the sail.
- Run the loop down to your vang assembly and connect to the pin at the top of the vang - the two spliced blocks should then be hanging from the sail.
- Next, take the control line (at the base of the mast) and run up to the lower of the two spliced blocks - pass from front to back through the lower or the two blocks.
- Run the control line back down to the 18mm block - pass from back to front through this block.
- Run the control line back up to the upper 29mm block, through the block, and down to the deck block.
- Complete the system by running the control line aft through the deck cleat
