Karver Systems | SKU:
KARPF190030

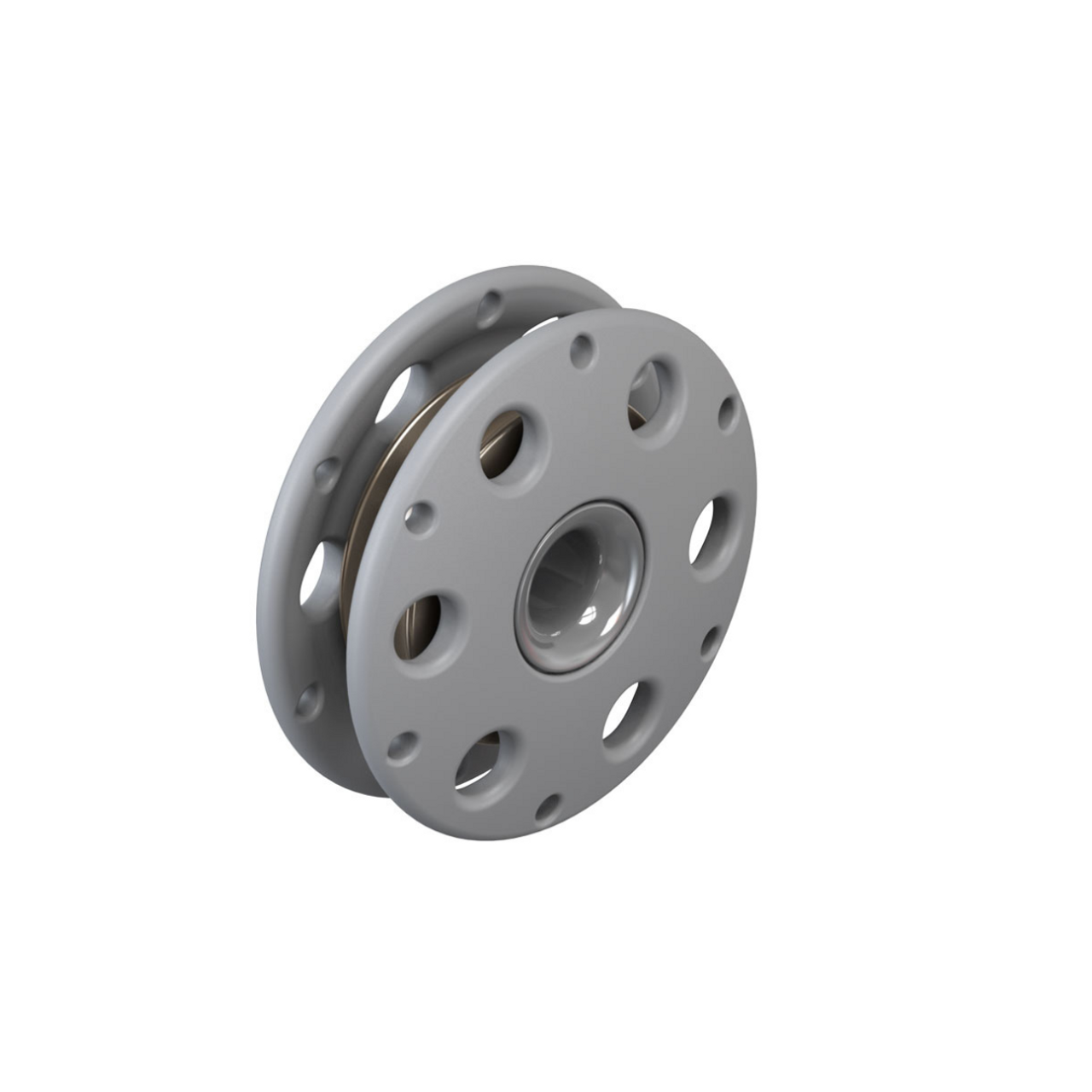

Karver KB6 / 30 mm Sheave Dia. Grey
Regular price
$72.00
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Karver KB6 / 30 mm Sheave Dia. Grey
Regular price
$72.00
Unit price
Unavailable
Manufacturer part #: PF190030
1 3/16 in30 mm
| Features | American | Metric |
|---|---|---|
| Description | KB6 Block | |
| Working Load | 485 lb | 0.22 t |
| Breaking Load | 882 lb | 0.4 t |
| Weight | 0.67 oz | 20 g |
| Max Line Ø | 1/4 in | 6 mm |
| Sheave Ø | 1 3/16 | 30 mm |
| External Ø | 1 25/32 in | 45.20 mm |
| Thickness | 11/16 in | 17.4 mm |
| Center Ø | 5/16 in | 8 mm |
- Unique and iconic design
- The deep groove allows the pulley to rest on the deck without wearing out the rope
- The holes all around the periphery allow you to attach the cord which will prevent the rope from coming out of the pulley and connecting the KB to each other
- 2 versions available. KB = roller bearings. KBC = self-lubricated bearing (recommended for the heaviest loads)
- Dimensions & minimum weight
- The textile attachment through the center of the pulley ensures a weight saving of up to 50% compared to conventional pulleys (loaded of equal work)
- Its round and flat design allows it to be often installed on a flat deck
- Ultra versatile : the KB are coupled to each other thanks to perfectly ergonomic connecting pieces
- The large central space allows many possibilities of cascade assembly
- Common applications : Double backstay, mast foot, flat deck hoist, line return, lazzy bag, … If the sheave breaks, the circulating rope is captive to the transfilage. Although the pulley no longer ensures the circulation of the rope, the rope linkage point of attachment of the pulley remains.
