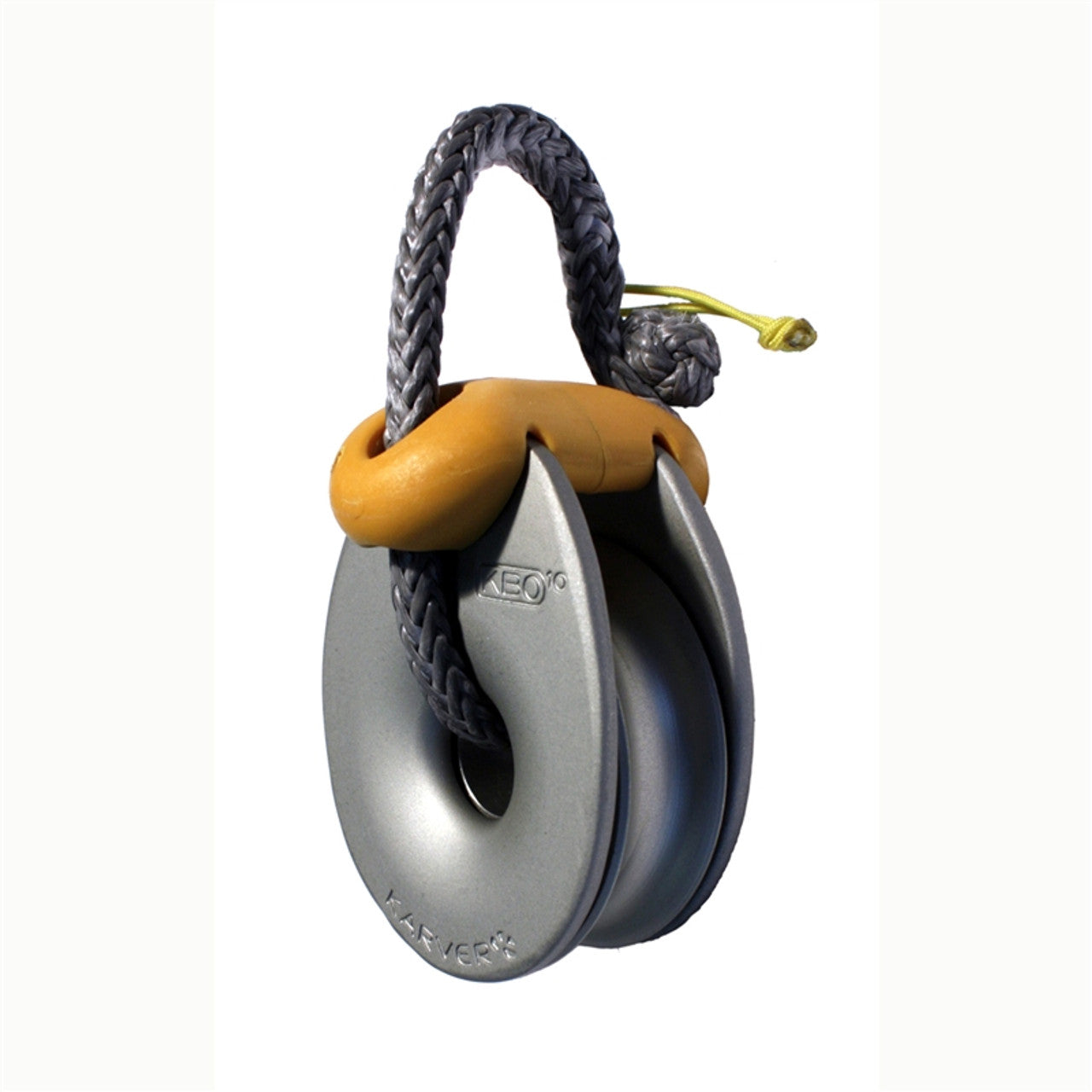

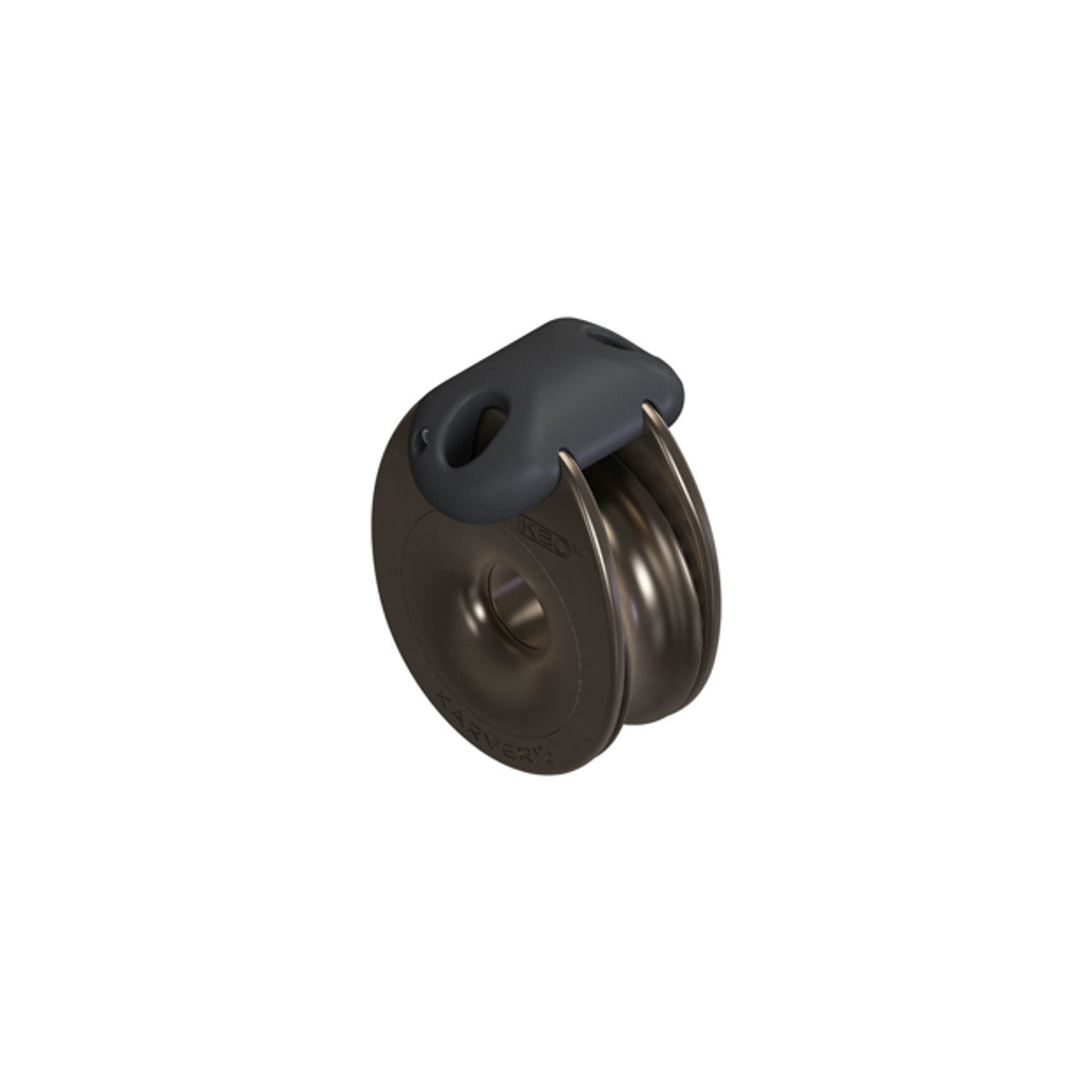

Karver KBO10 / 52 mm Sheave Dia. max line 12 mm / 1/2"
Manufacturer part #: PF660030
| Features | American | Metric |
|---|---|---|
| Description | KBO8 Grey Single Block | |
| Working Load | 2645 lb | 1200 kg |
| Breaking Load | 5291 lb | 2400 kg |
| Weight | 2.80 oz | 83 g |
| Max Line Ø | 15/32 in | 12 mm |
| Sheave Ø | 2 1/16 in | 52 mm |
| Corresponding Rope Shackle | MP551148 | |
| Corresponding Guide | PL662127 | |
Block Safe Working Load: The lashing may hold a higher load.
Manufacturer part #: PF660030
Updated and redeveloped for 2012, the KBO features a sleek design utilizing bearing technology inspired from the KBTi as well as aluminum material from the KBO10 up and composite material from the KBO8 down. The design integrates a lashing guide and allows large line diameters.
Light Weight
The design and material optimization make the block extremely light.
Performance
The KBO block features a two stage bearing system from the KBO8 to enhance low friction.
Fast Attachment
The rope shackle is included with the block for the whole line.
Simplicity
Easy fi tting from the lashing guide and rope shackle attachment simplifi es the use of the KBO block, without bearing away from Karver benefits.
