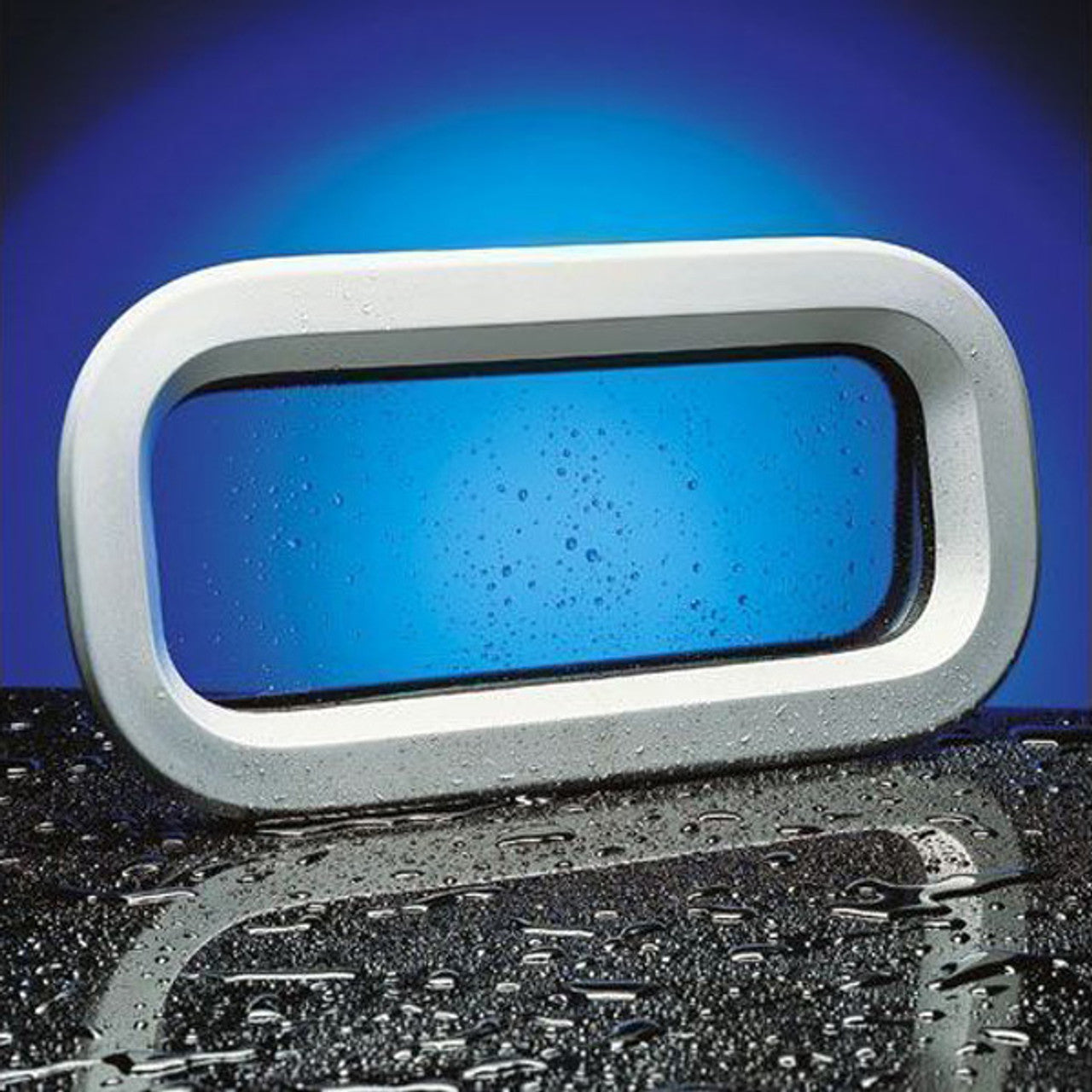

Lewmar Atlantic Portlight Size 10 Thick Valance
Anodised Extruded Alloy Frame
The inner and outer frames of the portlight are made from aluminium extrusion, deep anodised for maximum corrosion resistance. Quick Action Handles Portlight handles apply the correct pressure evenly onto the seal in the closed position. Portlight handles are unable to vibrate open when in the closed position.
Water Drainage
The portlight's outside frame is designed to allow water to drain away even when mounted on an angled coachroof side preventing water entering the boat when opening the portlight.
Friction Hinges
Lewmar's revolutionary hinges provide a choice of open positions with no knobs, stays or straps. Hinges and other moving parts are corrosion free.
Flyscreen
The flyscreen is made from nylon mesh with a moulded frame which clips onto the portlight outer frame. It can be left in position when the window is closed. Supplied as standard.
Mounting Instructions
Portlights and fixed lights should be fitted to a flat surface with maximum tolerance of +/- 1mm. Portlights and fixed lights come complete with fastenings. Portlight opening is restricted on very thick hulls. Opening angle at 21mm hull thickness is 165º. All sizes except 10, 30 & 32 (thin hull valance, opening) and 30 (thick hull valance, opening), are made to order.
CE Approval
Opening sizes 10 to 32 Area 1 & 2 are CE Approved.
Opening sizes 40 to 64 Area 2 are CE Approved.
All Fixed sizes Area 1 & 2 CE Approved
Manufacturer part #: 39110070
