Lewmar | SKU:
LEW6672212110-142
Lewmar V3 Gypsy Only Ff 24V 003 Kit
Sale price
$3,172.00
Regular price
$5,034.95
Unit price
Unavailable
Availability: Please give 24-36 business hours for our team to process your order. Once processed, lead time is 5-7 business days if item is in stock. Please call to check availability. Not available for expedited shipping. Usually Ships Within 20 Days
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Lewmar V3 Gypsy Only Ff 24V 003 Kit
Sale price
$3,172.00
Regular price
$5,034.95
Unit price
Unavailable
Please call us to confirm availability.
Manufacturer part #: 6672212110-142.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
With the Lewmar vertical windlasses anchor rode makes a 180° wrap around the gypsy providing more security. More of the unit is hidden below deck. Suitable for large anchor lockers. Minimum fall of 406mm (18") is recommended in order to have enough gravity to pull the rode down into the locker.
Technical Description
Windlass V3 24V Complete Kit*
003 - 10mm ISO, Campbell 3/8" S3, Lewmar 9.5mm G40
1000 Watts
2248 lb
1020 kg
535 lb
243 kg
98 ft/min
30 m/min
60 Amp
90 Amp
47 lb
21.5 kg
* All kits feature Fastfit™ motor gearboxes.
* Windlass Kit includes Deck unit, gypsy, Motor gearbox, rocker switch, circuit breaker and contactor.

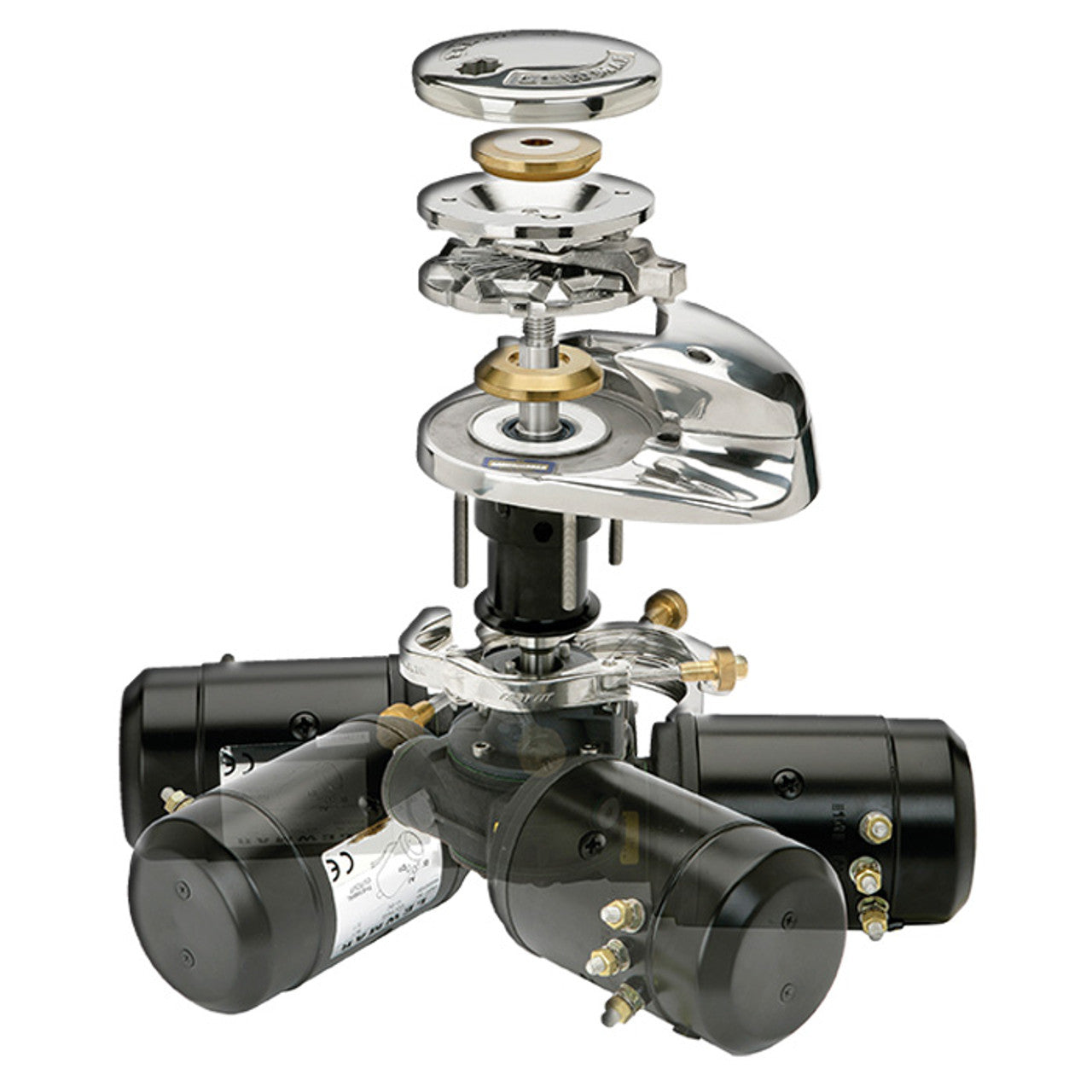

Lewmar V3 Gypsy Only FF 24V 003 Kit
- Rope-chain gypsy.
- Manual chain release Free Fall).
- Highly reliable, light weight, high performance windlass.
- Optional manual override motor gearbox.
- Cone clutch for smooth, easy control.
- Wear and Abrasion Resistant Pattern Drum.
- Fall safe anchor lock.
- Robust/reliable worm gearbox.
- FastFit™ option for quicker installation and less hassle.
- Emergency recovery kit available.
- Water resistant IP68 kits available.
- For boats up to 14m (48ft).
Lewmar V Windlasses Dimensions
