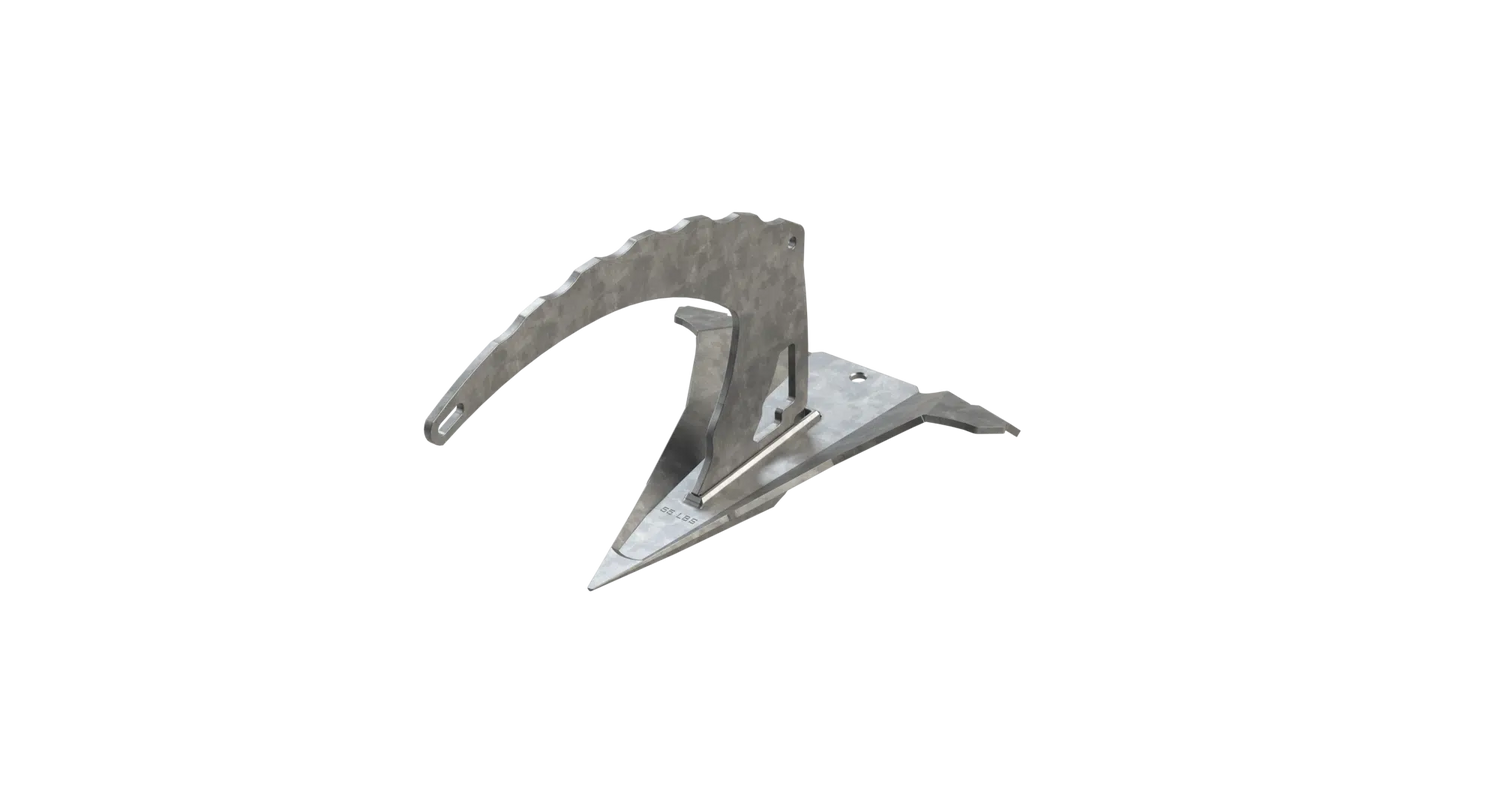

Mantus Marine M2 - Performance Galvanized Anchors

From $201.61
Size

DELIVERY AND RETURN INFO

DIGS LIKE NO OTHER  M2 Mantus Performance Anchor significantly improved soft mud performance of the M2 line. The ears on the anchor act as foils to orient the anchor in the best angle of attack and almost double the anchors soft mud holding.

EASY TO STORE  On a bow roller anchor shank was modified to improve fit and stability. Whether you are a long range cruiser, racing or going out for a day sail. The Mantus anchor breaks down for easy storage, so you can store one or two as spares without taking up much needed boat space. A single bolts is used for the construction to facilitate easy disassembly and storage.

BUILT STRONG

  • Formed from high quality steel plate and high end precision casting.
  • ASTM certified bolts are oversized with a large margin to ensure safety.
  • Although the bolt used in the assembly is load bearing, only a fraction of the load is transmitted to the bolt.
  • Stainless Steel anchors feature a 2205 Duplex shank and 316L stainless steel fluke. The surface is hardened by shot-peening and then electro-polished to provide maximum corrosion resistance.
  • In the carbon steel version every part of the anchor system is hot-dipped galvanized for corrosion protection. (All shanks are HT ASTM 514 Steel and flukes are mild steel A36 equivalent).
  • Nose of the anchor is reinforced to guarantee a lifetime longevity.

DIMENSIONS
(INCHES)

A
B
C
D
E
F
G
H
I
J
K
L
M















8 lbs 19.0 9.9 2.8 3.3 6.6 5.8 6.0 12.4 1.0 0.4 19.0 11.7 10.2
13 lbs 21.7 11.4 3.3 3.8 7.5 6.6 6.9 14.2 1.1 0.4 21.7 13.4 13.0
17 lbs 24.1 12.6 3.6 4.2 8.3 7.3 7.6 15.8 1.3 0.5 24.1 14.9 15.8
25 lbs 26.9 14.1 4.0 4.7 9.3 8.2 8.5 17.6 1.4 0.5 26.9 16.6 17.5
35 lbs 29.6 15.5 4.4 5.2 10.2 9.0 9.4 19.4 1.6 0.6 29.6 18.3 18.9
45 lbs 32.4 17.0 4.9 5.7 11.2 9.8 10.3 21.2 1.7 0.6 32.4 20.0 21.0
55 lbs 34.8 18.2 5.2 6.1 12.0 10.6 11.0 22.8 1.8 0.7 34.8 21.5 23.6
65 lbs 36.5 19.1 5.5 6.4 12.6 11.1 11.6 23.9 1.9 0.7 36.5 22.6 25.3
85 lbs 40.3 21.1 6.0 7.0 13.9 12.2 12.8 26.4 2.1 0.8 40.3 24.9 26.9
105 lbs 42.7 22.4 6.4 7.5 14.8 13.0 13.5 28.0 2.3 0.8 42.7 26.4 28.6
125 lbs 46.5 24.4 7.0 8.1 16.1 14.1 14.7 30.4 2.5 0.9 46.5 28.8 31.0
155 lbs 48.9 25.7 7.3 8.6 16.9 14.9 15.5 32.0 2.6 0.9 48.9 30.2 33.3
175 lbs 51.7 27.1 7.8 9.0 17.9 15.7 16.4 33.8 2.7 1.0 51.7 31.9 35.0



Anchor Size
Day Anchorrecommended for winds < 30 knots
Cruising Anchorrecommended for winds < 50 knots
Storm Anchorrecommended for winds > 50 knots




8 lb 16-20 feet < 3,000 lbs 12-14 feet < 1000 lbs 0-12 feet < 800 lbs
13 lb 20-25 feet < 5,000 lbs 14-20 feet < 3000lbs 12-14 feet <1000 lbs
17 lb 25-30 feet < 11,000 lbs 20-25 feet < 5,000 lbs 14 -20 feet < 3000 lbs
25 lb 30-35 feet < 15,000 lbs 25-30 feet < 11,000 lbs 20-25 feet < 5000 lbs
35 lb 35-39 feet < 20,000 lbs 30-35 feet < 15,000 lbs 25-30 feet < 11,000 lbs
45 lb 39-43 feet < 30,000 lbs 35-39 feet < 20,000 lbs 30-35 feet < 15,000 lbs
55 lb 43-45 feet < 40,000 lbs 39-43 feet < 30,000 35-39 feet < 20,000 lbs
65 lb 45-50 feet < 50,000 lbs 43-45 feet < 40,000 lbs 39-43 feet < 30,000 lbs
85 lb 50-60 feet < 60,000 lbs 45-50 feet < 50,000 lbs 43-45 feet < 40,000 lbs
105 lb 60-70 feet < 70,000 lbs 50-60 feet < 60,000 lbs 45-50 feet < 50,000 lbs
125 lb 70-85 feet < 100,000 lbs 60 -70 feet < 70,000 lbs 50-60 feet < 60,000 lbs
155 lbs 85-90 feet < 130,000 lbs 70 - 85 feet < 100,000 lbs 60-70 feet < 70,000 lbs
175 lb 90 -95 feet < 140,000lbs 85-90 feet < 130,000 lbs 70-85 feet < 100,000 lbs
