New England Ropes Flight Line
Manufacturer part #: Flight Line 6mm
| Diameter | Weight | Tensile | |||
|---|---|---|---|---|---|
| American | Metric | lbs./100 ft. | g/m | American | Metric |
| 1/4" | 6 mm | 1.4 lb | 20.8 g | 2,500 lb | 1,135 kg |
| 5/16" | 8 mm | 2.2 lb | 32.7 g | 4,000 lb | 1,816 kg |
| 3/8" | 10mm | 3.2 lb | 47.6 g | 4,700 lb | 2,130 kg |

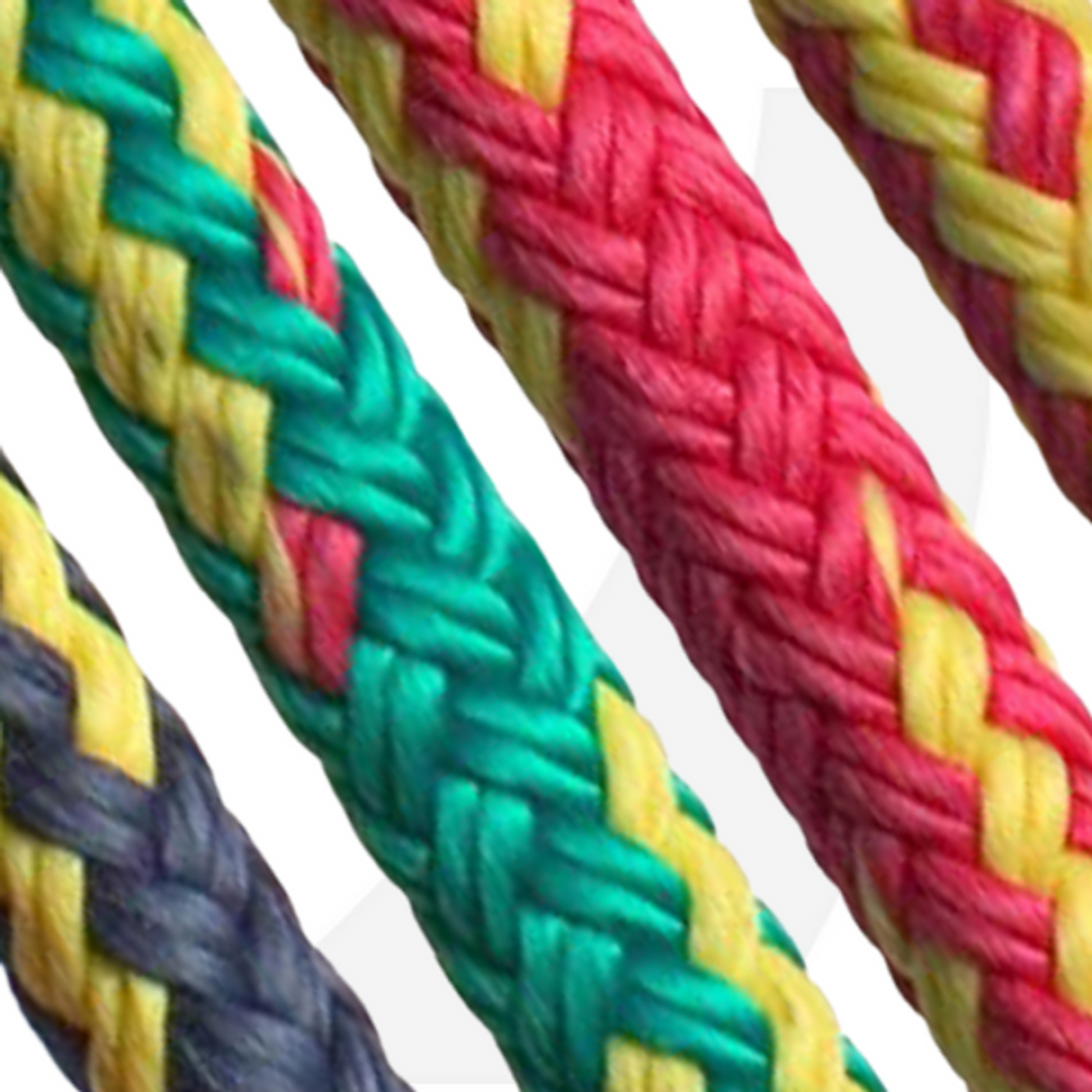

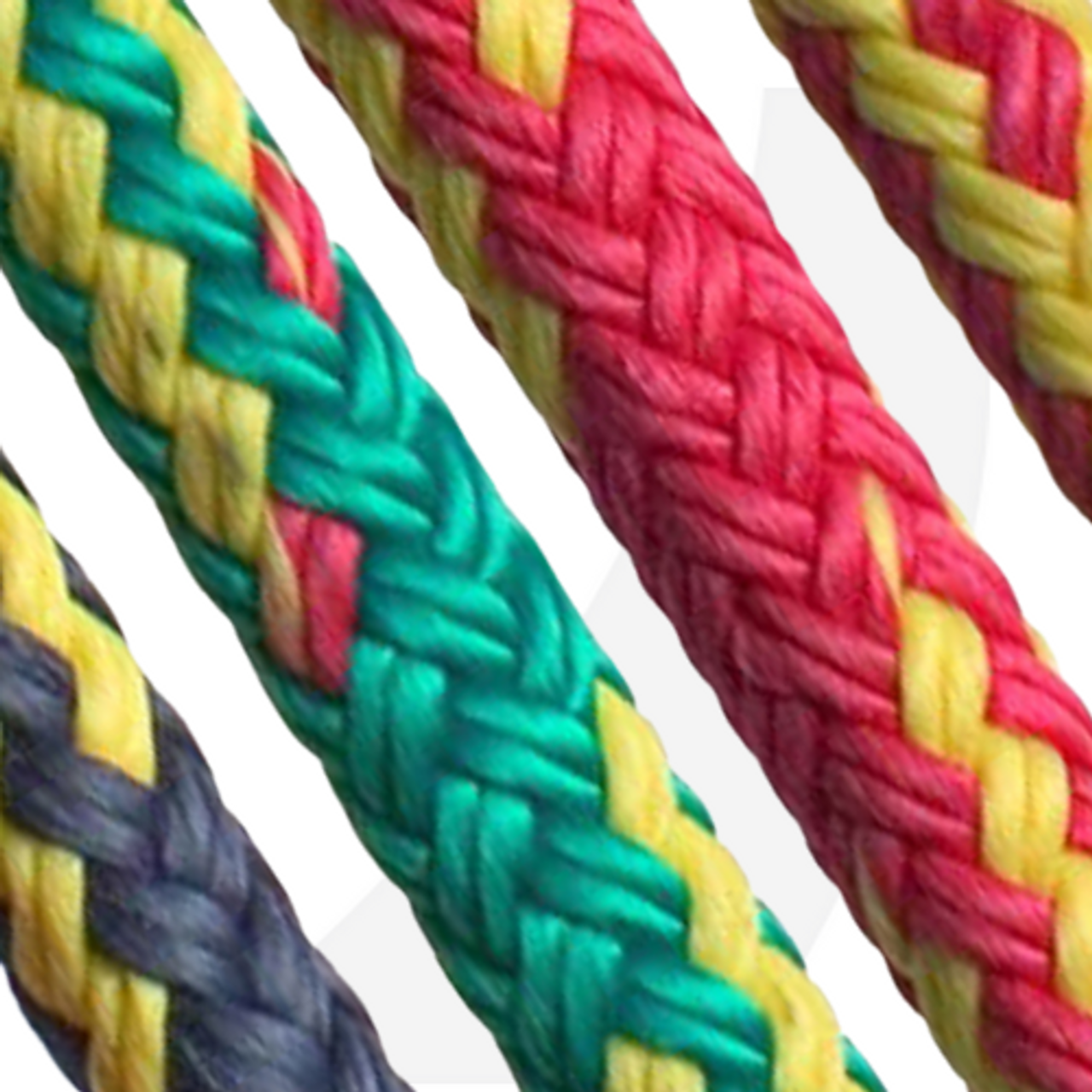

Flight Line™ is a lightweight line perfect for light air spin sheets and mainsheets and control lines in smaller boats. Flight Line has a core of Dyneema® SK 78 fiber surrounded by a 100% polypropylene jacket. The result is a lightweight, kink resistant, flexible line that will not absorb water.
Features
- Lightweight
- Floats
- Does not absorb water
- Strong
- Spliceable
Applications
- Light Air Spin Sheets
- Sheets
- Control Lines
Sunlight/Uv: Polypropylene has very little degradation from UV, and can be used over long term if inspected regularly. Dyneema® Fiber has very little degradation from UV, and can be used over long term if inspected regularly.
Chemicals: Polypropylene has excellent resistance to most acids and alkalis, except chlorosulphonics, concentrated sulfuric acids, and chlorinated hydrocarbons at 160°F. Dyneema® Fiber has good resistance to most minerals, organics, acids, and weak alkalis. Dyneema® Fiber also has excellent resistance to bleaches and other oxidizing agents as well as to most solvents.
Heat: Polypropylene has a melting point of 300°F with progressive strength loss above temperatures of 150°F. Dyneema® SK 78 fiber has a melting point of 300°F with progressive strength loss above temperatures of 150°F.
Dielectrics: Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.
Sheaves: Recommended D/d * ratio is 8:1. (*Sheave diameter to rope diameter)
Working Loads: No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations.
It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks. The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc.
The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor. The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.
