New England Ropes Sta-Set Solid color w/ white flecks
Manufacturer part #: Sta-Set
| Diameter | Weight | Tensile | |||
|---|---|---|---|---|---|
| American | Metric | lbs./100 ft. | g/m | American | Metric |
| 3/16" | 5 mm | 1.2 lb | 17.5 g | 1,400 lb | 635 kg |
| 1/4" | 6 mm | 1.9 lb | 28.5 g | 2,350 lb | 1,060 kg |
| 5/16" | 8 mm | 3.1 lb | 46.1 g | 3,850 lb | 1,750 kg |
| 3/8" | 9 mm | 4.6 lb | 68.4 g | 5,100 lb | 2,310 kg |
| 7/16" | 11 mm | 6.4 lb | 95.2 g | 7,000 lb | 3,175 kg |
| 1/2" | 12 mm | 8.2 lb | 122.0 g | 10,100 lb | 4,580 kg |
| 9/16" | 14 mm | 10.6 lb | 157.7 g | 11,700 lb | 5,300 kg |
| 5/8" | 16 mm | 12.5 lb | 186.0 g | 16,900 lb | 7,668 kg |

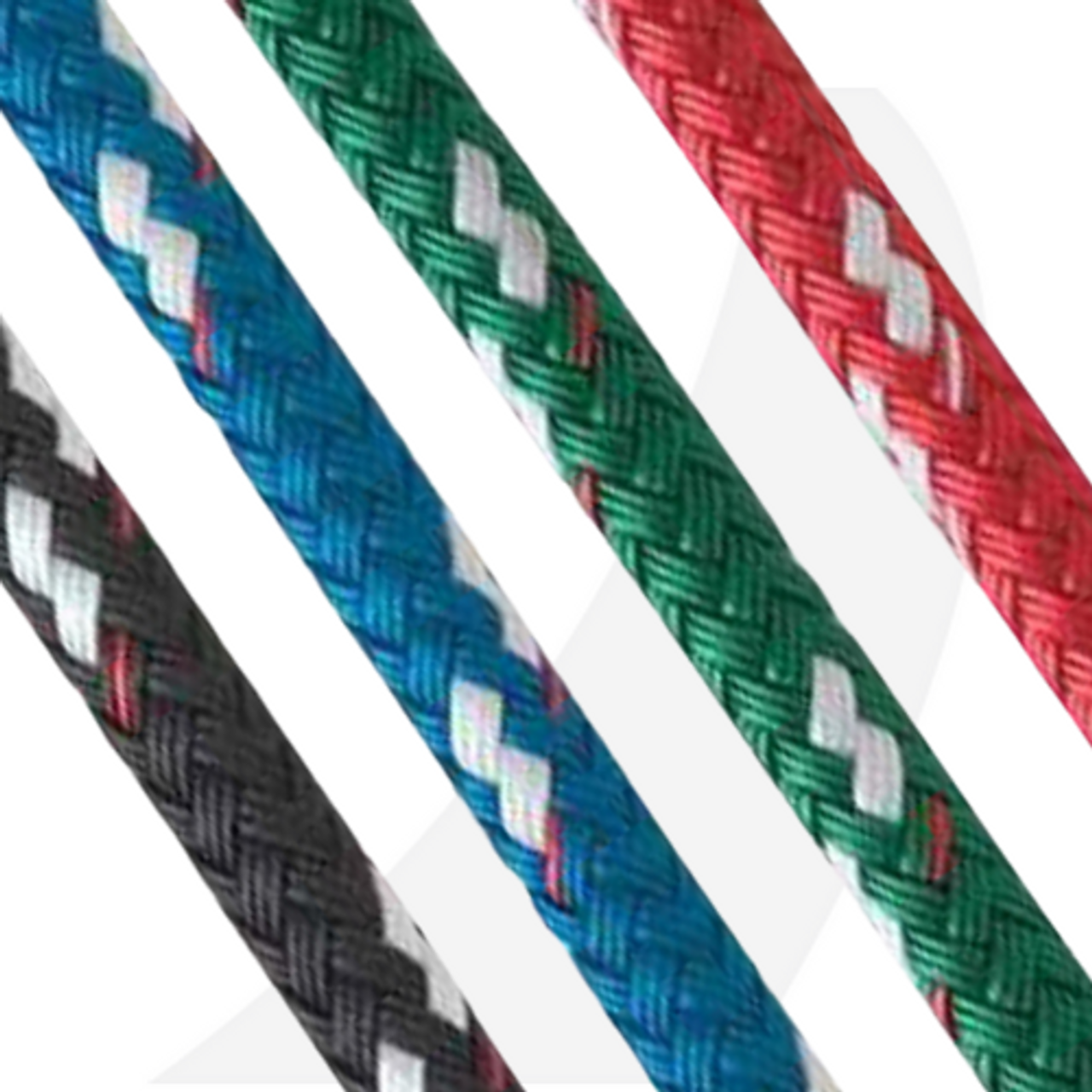

Sta-Set® is a premium grade double braided polyester rope manufactured using only high tenacity polyester for a strong, low stretch, and extremely durable line. Sta-Set® is ideally suited for sheets and control lines on a wide range of cruising boats. Sta-Set® also conforms to the physical requirements of MIL-R-24677.
Features
- Soft
- Supple/Flexible
- Durable
- Easily Spliced
- 8 Colors
Applications
- Mainsheets
- Jib Sheets
- Control Lines
Sunlight/Uv: Polyester has very little degradation from UV, and can be used over long term if inspected regularly.
Chemicals: Polyester has good resistance to most chemicals, except 95% sulfuric acid and strong alkalis at boil.
Heat: Polyester has a melting point of 480°F with progressive strength loss above temperatures of 300°F.
Dielectrics: Good resistance to the passage of electrical current. However, dirt, surface contaminants, water entrapment, and the like can significantly affect dielectric properties. Extreme caution should be exercised any time a rope is in the proximity of live circuits.
Sheaves: Recommended D/d * ratio is 8:1. (*Sheave diameter to rope diameter)
Working Loads: No blanket safe working load (SWL) recommendations can be made for any line because SWL's must be calculated based on application, conditions of use, and potential danger to personnel among other considerations. It is recommended that the end user establish working loads and safety factors based on best practices established by the end user's industry; by professional judgment and personal experience; and after thorough assessment of all risks.
The SWL is a guideline for the use of a rope in good condition for non-critical applications and should be reduced where life, limb, or valuable property is involved, or in cases of exceptional service such as shock loading, sustained loading, severe vibration, etc. The Cordage Institute specifies that the SWL of a rope shall be determined by dividing the Minimum Tensile Strength of the rope by a safety factor.
The safety factor ranges from 5 to 12 for non-critical uses and is typically set at 15 for life lines.
