Nodus | SKU:
NDF20123
Nodus Bowsprit Pulley NUB
Regular price
$84.30
Unit price
Availability: In stock
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Nodus Bowsprit Pulley NUB
Regular price
$84.30
Unit price

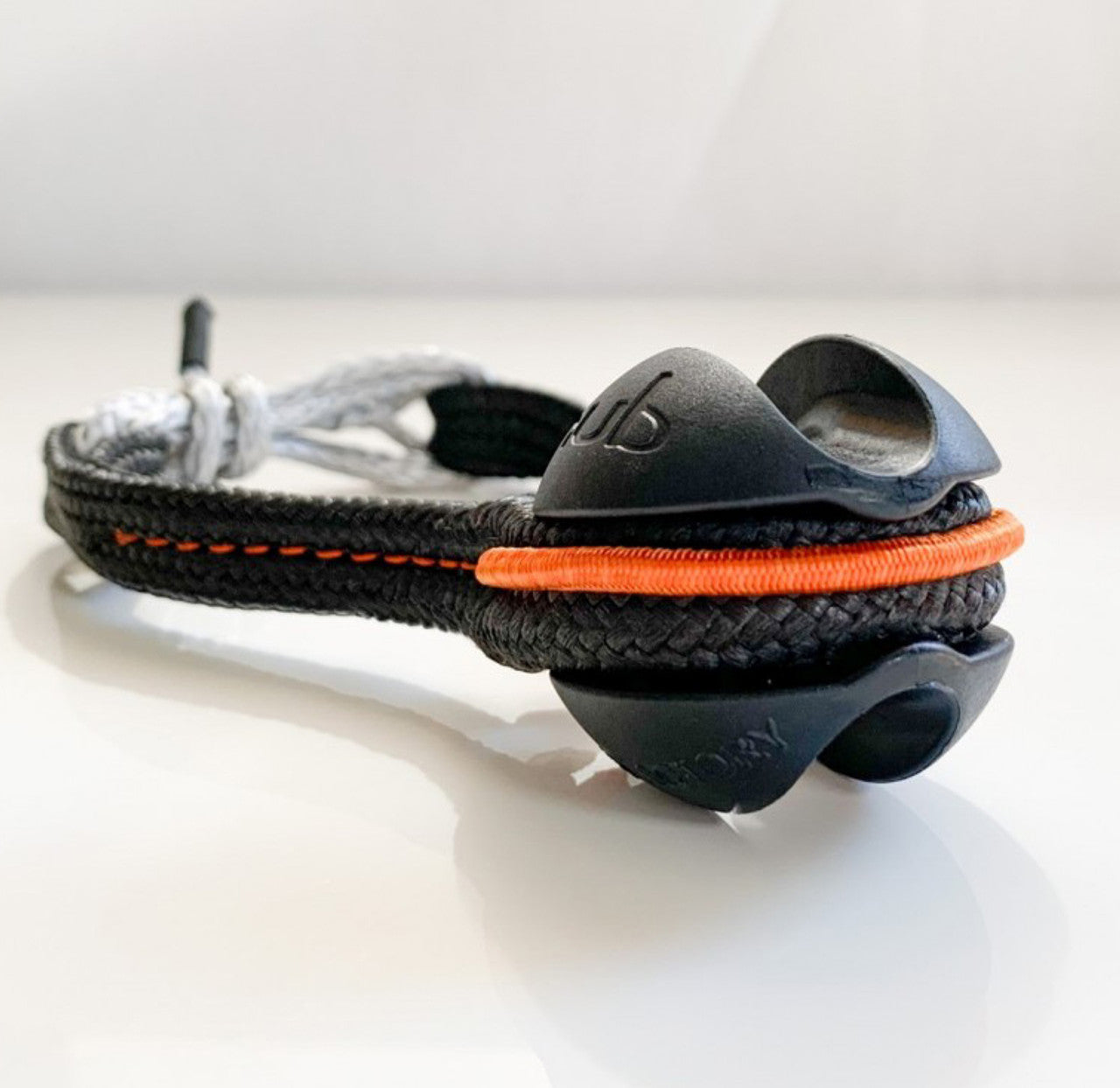

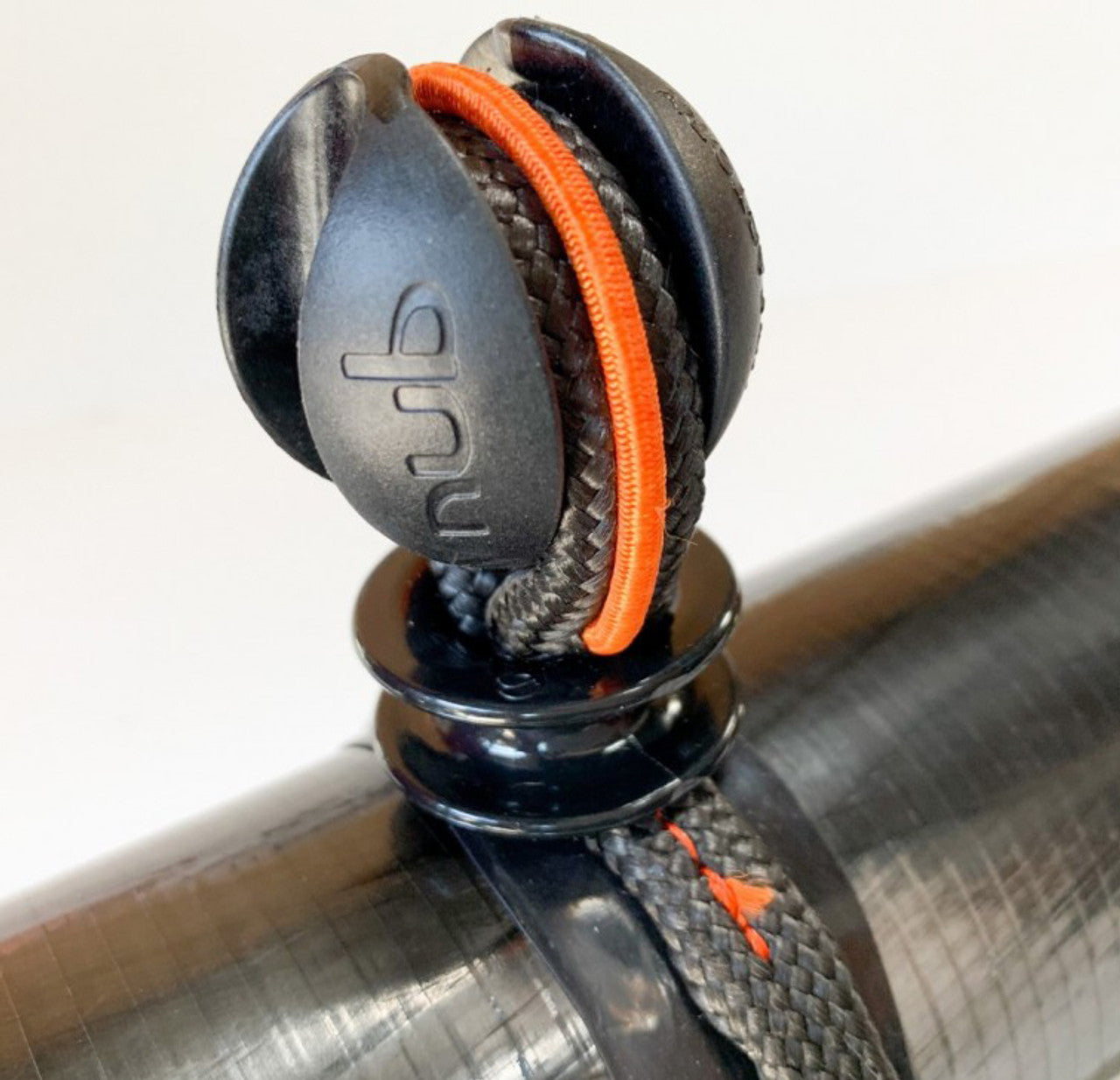

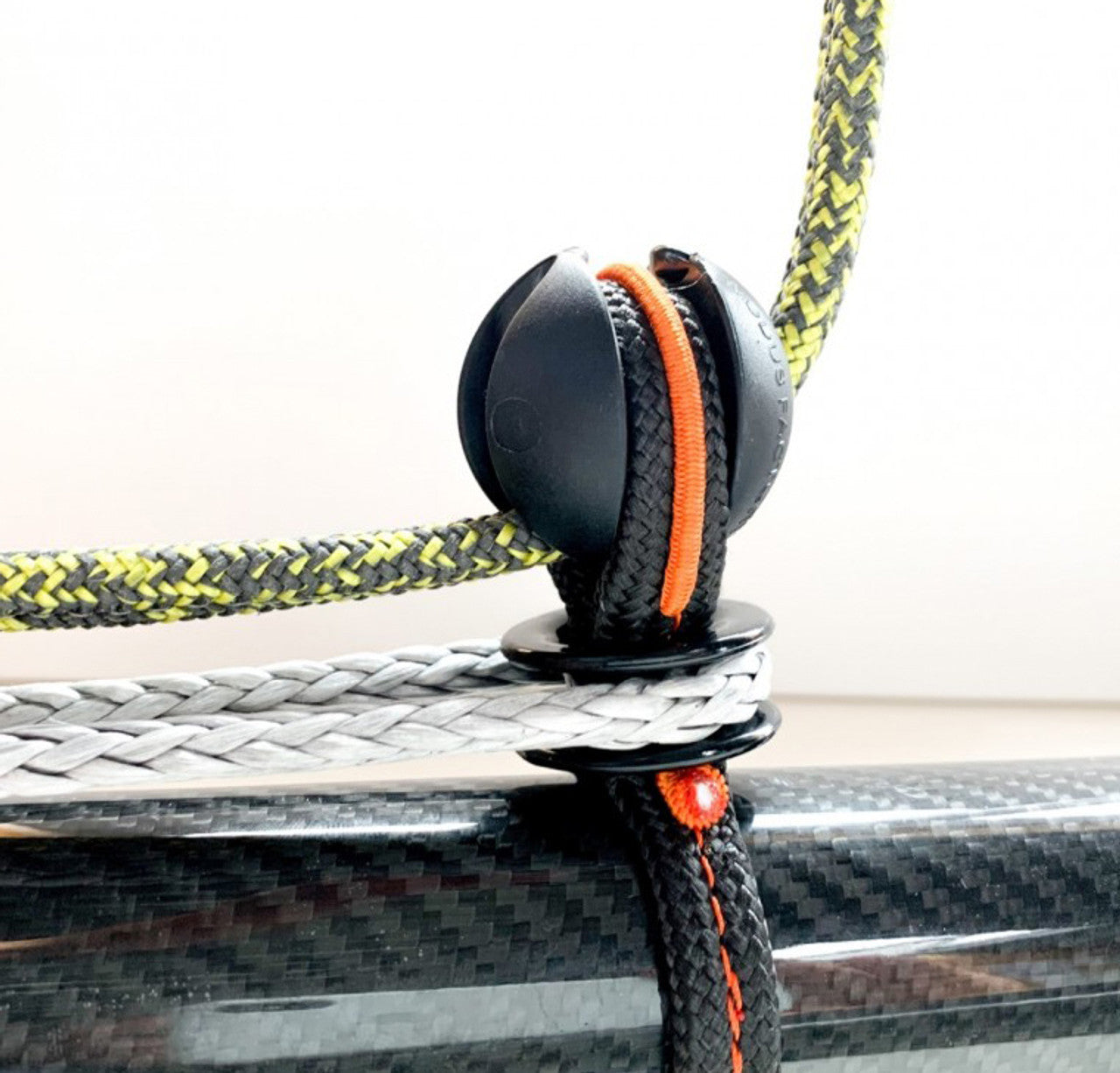

Spi 4®, is a Nub pulley on an adjustable "tie" strap allowing the fixation of the spi stack on the bowsprit.
Adjustable fastening thanks to the Nodex® lashing.
- Spi pulley for bowsprit.
- You can adjust the tack position thanks to the friction ring Nodus FR14.
Advantages
- Easy to install, no need of mechanical fixing thanks to the optional anti-sliding strip
- Secured blocking under and out of load
- Reliable and maintenance free
Specification:
| Product Name | Breaking Load | NUB Pulley | "Lashing" Rope | Sail size |
| R2 Basket | Reference | R2 | 40 nds | |
| KG | Nub 40 | 3 mm | m2 | |
| Spi 4 NUB | 3000 | N 40 | 1 ml | 130 m2 |
To be used for bowsprit
| Bowsprit | Ø 70mm | Ø 80mm | Ø 90mm** | Ø 100mm** |
| Spi | 60 m2 | 80 m2 | 100 m2 | 130 m2 |
| Gennaker | 37 m2 | 50 m2 | 65 m2 | 105 m2 |
| Jif reefing* | 1,5t / 2,5t | 2,5t / 4,5t | 4,5t / 7,0t | 4,5t / 7,0t |
