Nodus | SKU:
NDF20214D
Nodus Dynamics LR 4 Loop and Ring Textile Strop with Ring
Regular price
$47.50
Unit price
Unavailable
Availability: In stock
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Nodus Dynamics LR 4 Loop and Ring Textile Strop with Ring
Regular price
$47.50
Unit price
Unavailable

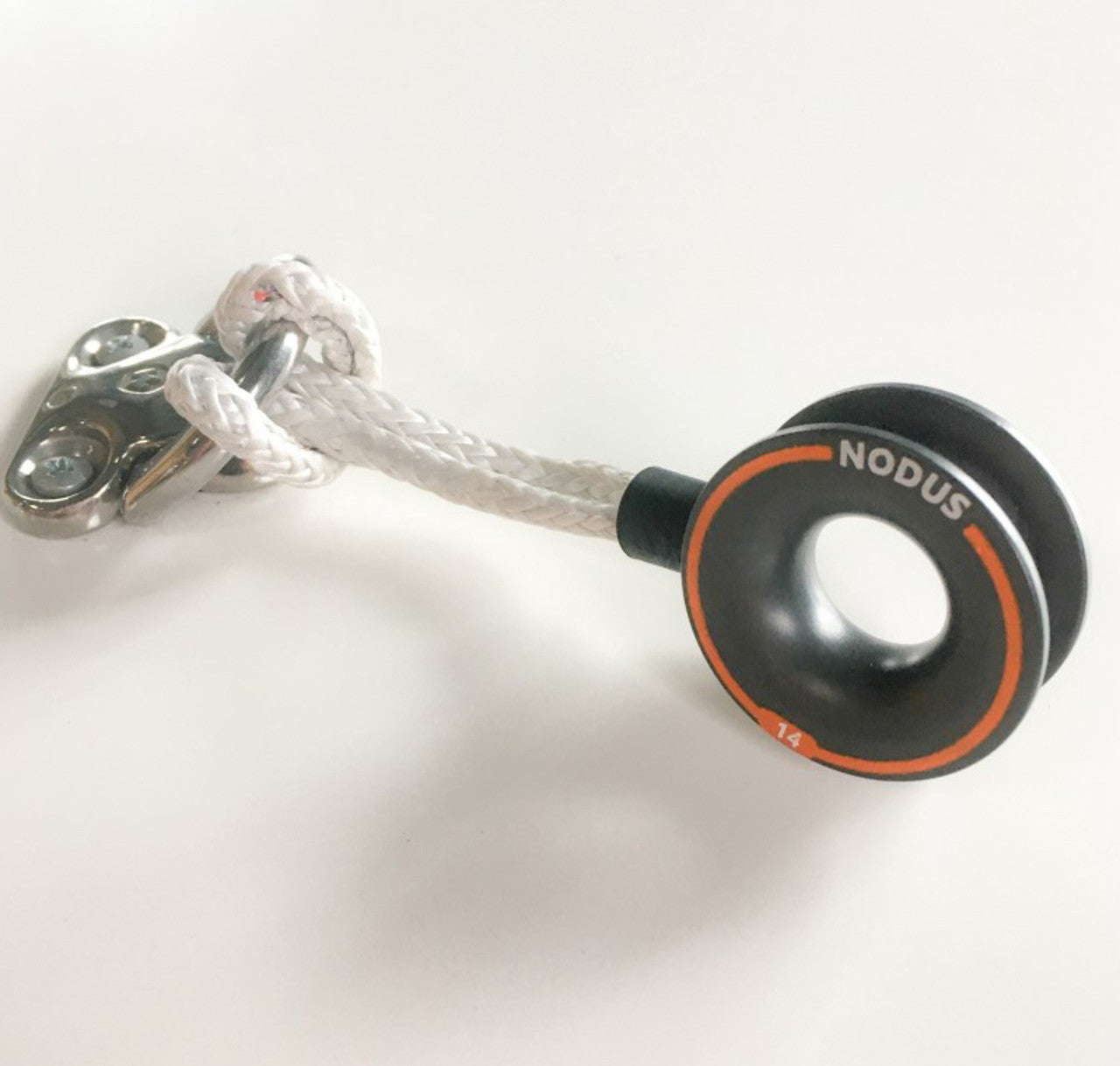

LR is a loop made of Nodex® R2 and is available in 2 models, either with a low friction ring type TH, with a wide opening, or with a duralumin ring FrD

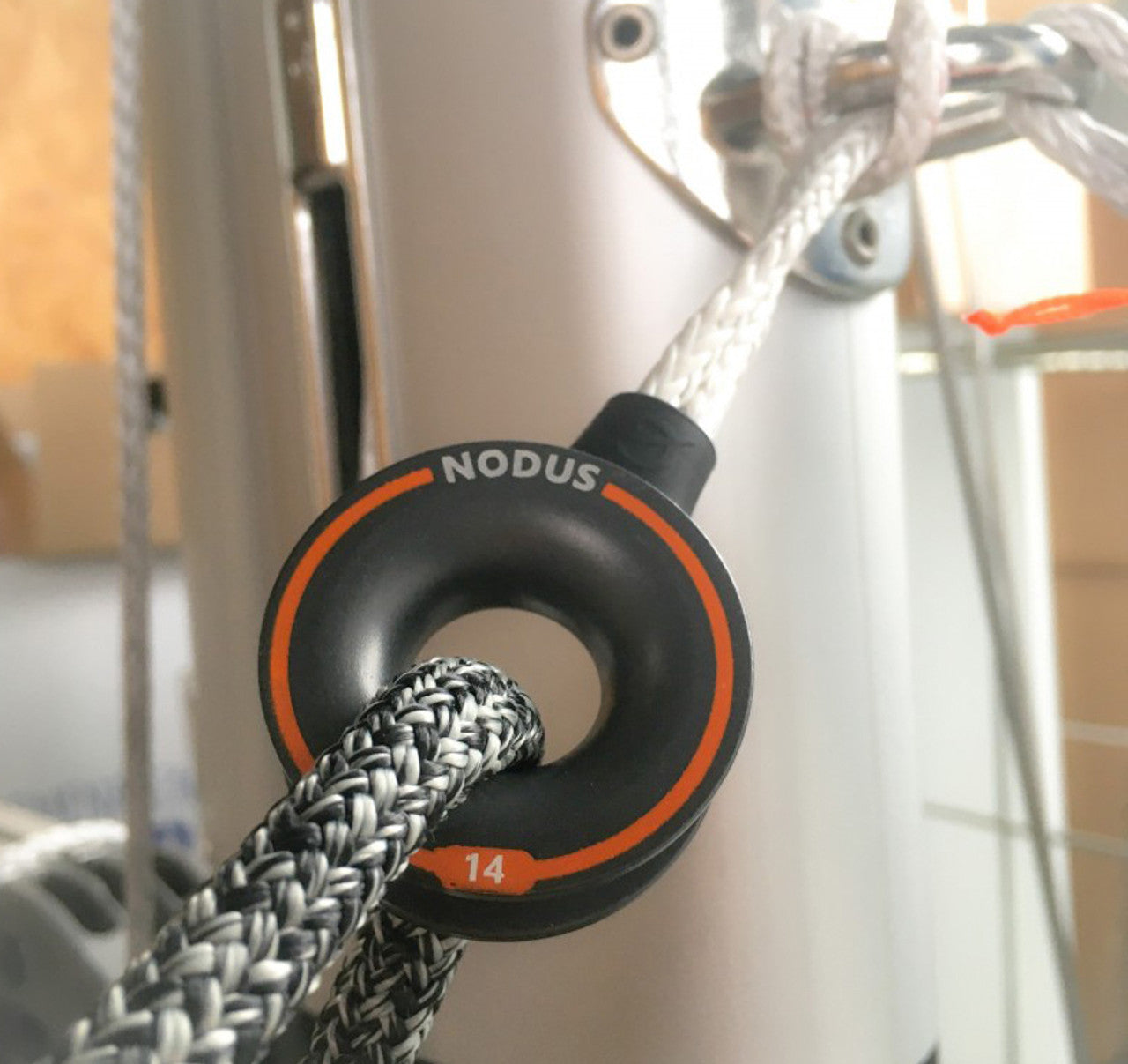

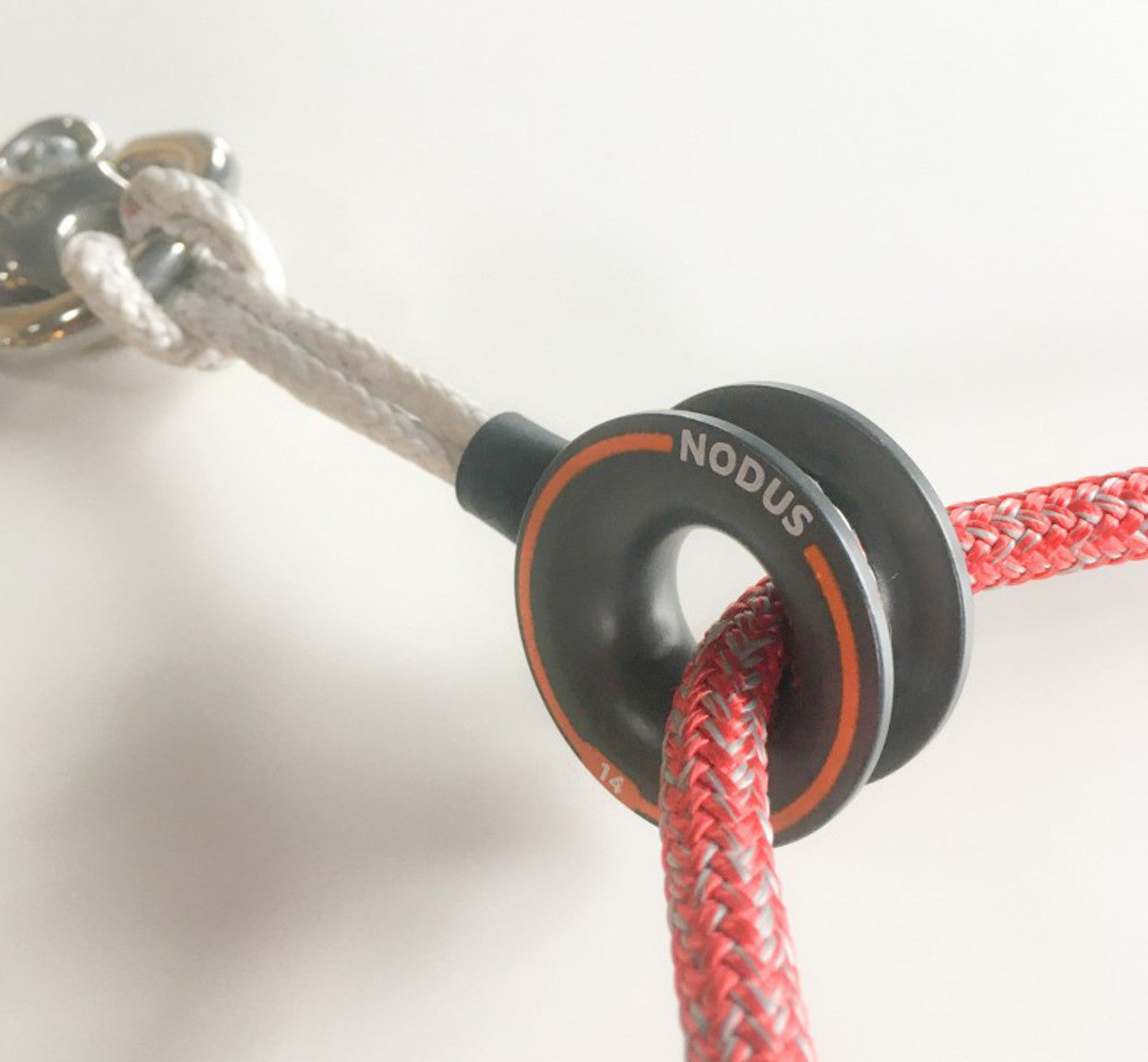

This textile loop is easily fixed on the deck plates and toe rail and, using the Nodus friction ring can haul all adjusting ropes.
- Equipment which easily replaces a pulley and can handle heavy static loads (opening ring) or dynamic loads (duralumin ring).
- For Dyneema® or non-abrasive ropes (opening ring) / all types of ropes (duralumin ring)
- For quick and easy fastening between two elements: mainsail foot, mast foot haulers, barber-hauler, in-hauler, lazy-jack, lazy-bag, hoist 2/1, etc.
Advantages
- The flexibility of textile ensures that the work is in the axis of the forces
- Easy to install Fastening larks head knot
- Rotation over 360°
- Excellent weight/strength ratio
- Reliable and maintenance free
Specification:
- Duralumin friction ring
| PRODUCT NAME | BREAKING LOAD | Ø LINE | LENGHT | Ø INTERNAL | Ø ROPE RECOMMENDED |
|---|---|---|---|---|---|
| CMU | R2 | Straight | Ring | Halyard /Sheet | |
| Kg | mm | cm | mm | mm | |
| LR 4 | 1800 | 4 | 11 | 14 | 8/12 |
| LR 5 | 5000 | 6 | 14 | 20/25 | 12/20 |
- Open friction ring
| PRODUCT NAME | BREAKING LOAD | Ø LINE | LENGHT | Ø INTERNAL | Ø ROPE RECOMMENDED |
|---|---|---|---|---|---|
| TH Ring | R2 | Straight | Ring | Halyard/Sheet | |
| Kg | mm | cm | mm | mm | |
| Angle | 0° - 90° - 180° | TH | |||
| LR 4 | 1800 - 1250 - 900 | 4 | 11 | 14 | 6/8 |
| LR 5 | 3000 - 2150 - 1500 | 5 | 14 | 20 | 8/10 |
