Nodus | SKU:
NDF20347
Nodus Stattic LR 4 Loop and Ring Textile Strop with Ring
Regular price
$41.90
Unit price
Unavailable
Availability: Estimated time of arrival 30 days, Not available for expedited shipping.
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Nodus Stattic LR 4 Loop and Ring Textile Strop with Ring
Regular price
$41.90
Unit price
Unavailable
Nodus Stattic LR 4 Loop and Ring Textile Strop with Ring
| Technical Description | |||||
| Duralumin friction ring | |||||
| Product Name | Breaking Load | Ø Line | Lenght | Ø Interne | Ø Rope Recommended |
| Kg | mm | cm | mm | mm | |
| LR 4 | 1800 | 4 | 11 | 14 | 8/12 |
| LR 5 | 5000 | 6 | 14 | 20/25 | 12/20 |
| Open friction ring | ||||||
| Product Name | Angle | Breaking Load | Ø Line | Leght | Ø Interene | Ø Recommended |
| 0° - 90° - 180° | mm | cm | mm | mm | Halyard/Sheet mm | |
| LR 4 | 1800 - 1250 - 900 | 4 | 11 | 14 | 6/8 | |
| LR 5 | 3000 - 2150 - 1500 | 5 | 14 | 20 | 810 | |

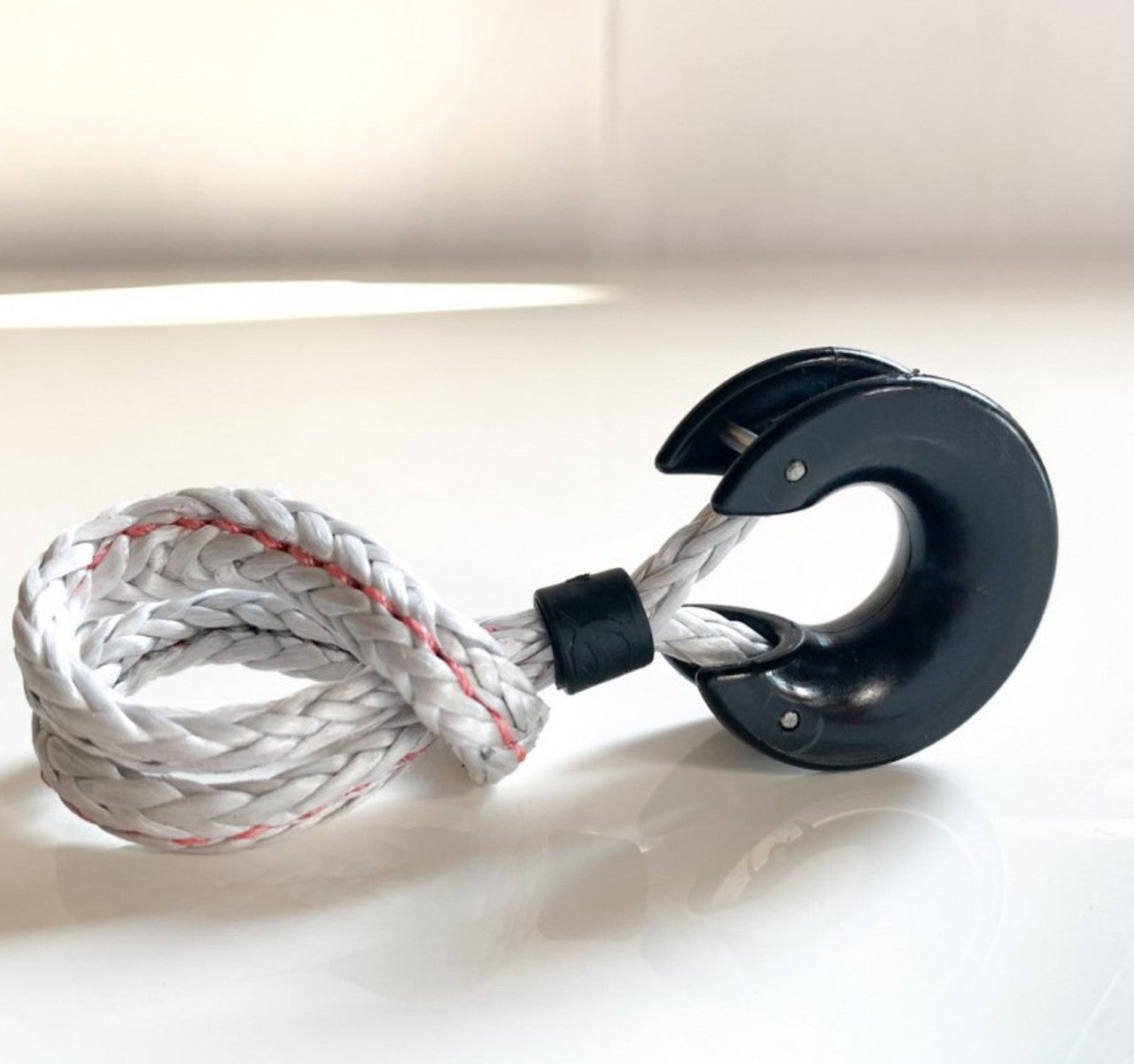

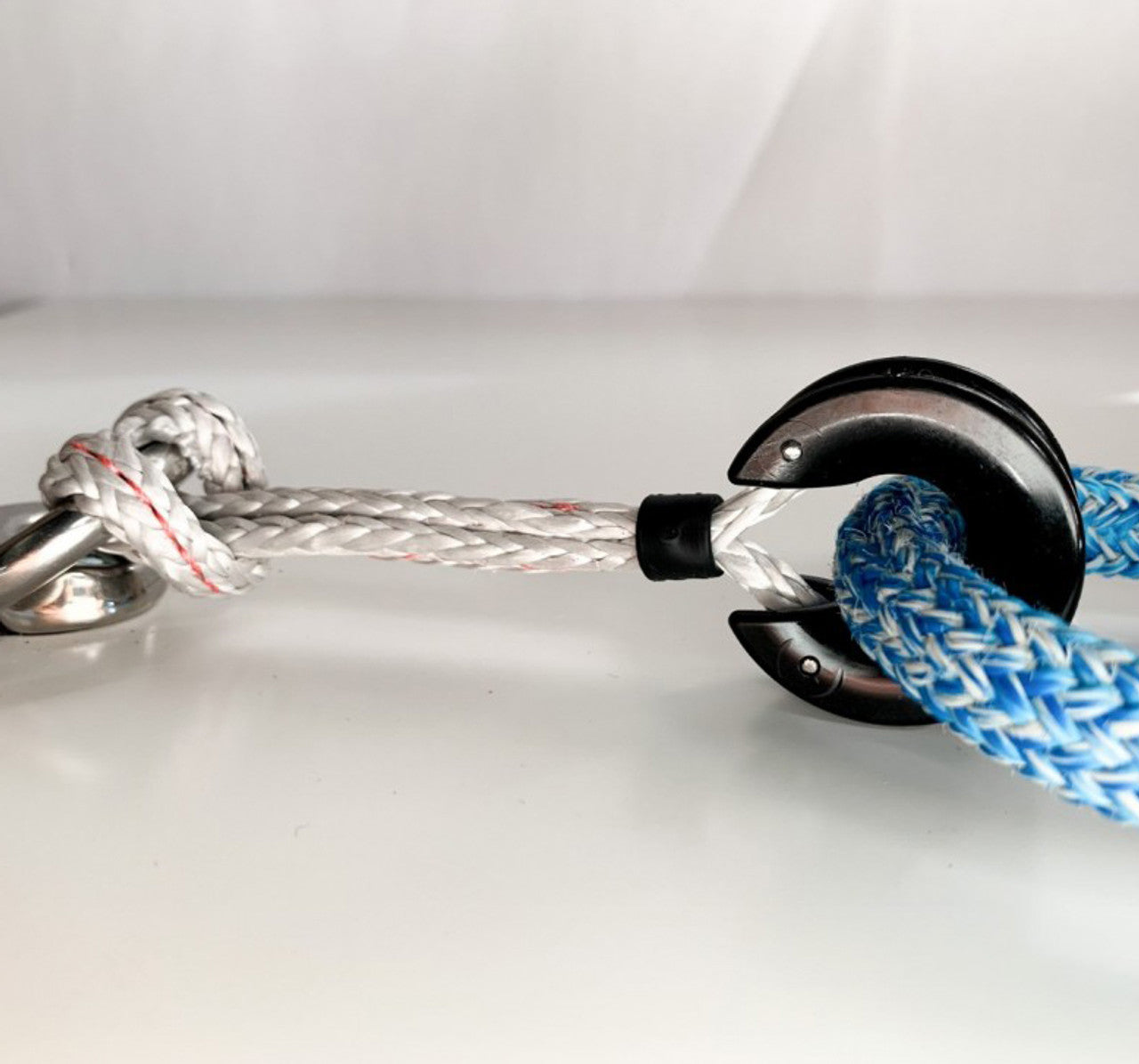

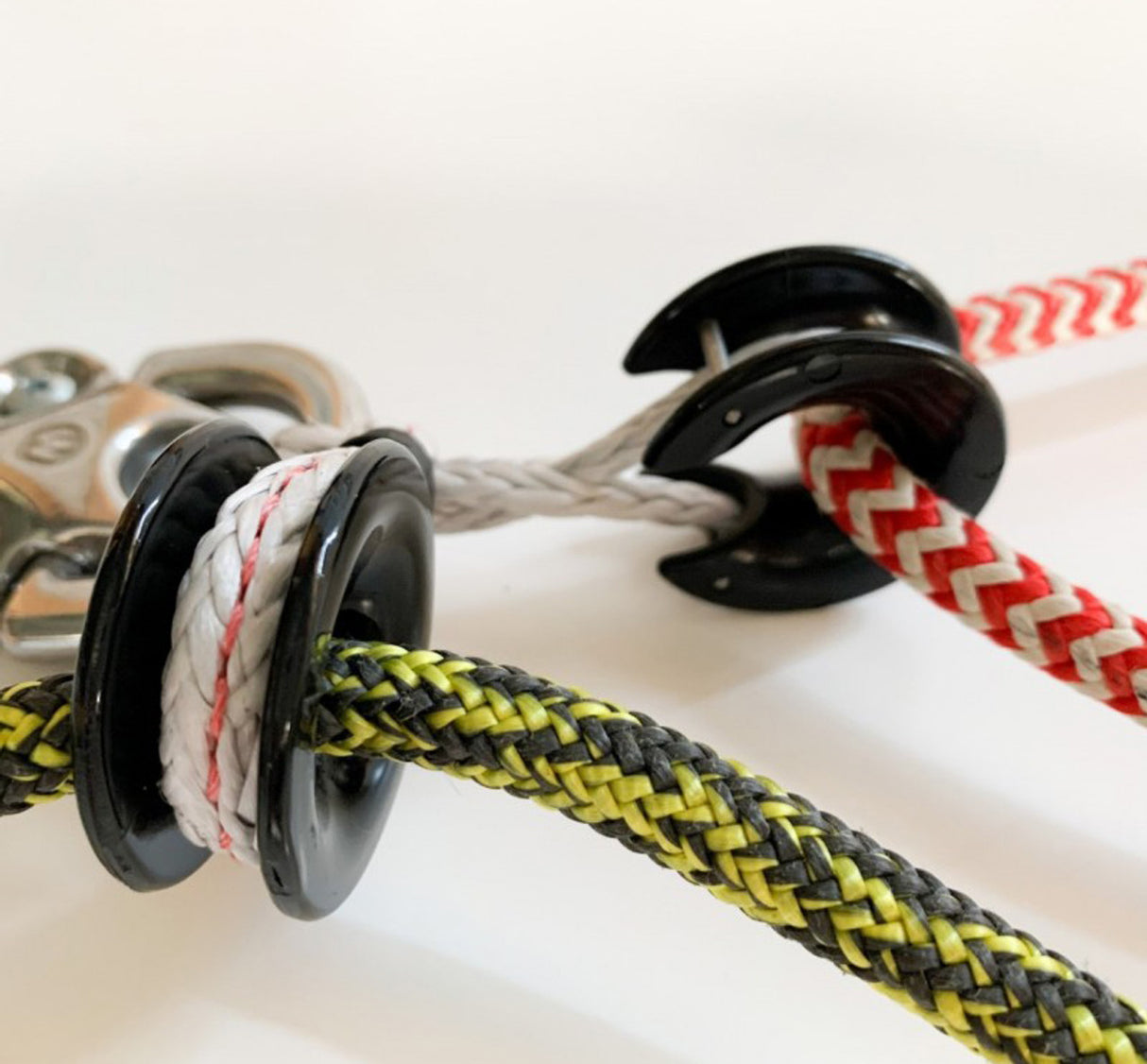

LR is a loop made of Nodex® R2 and is available in 2 models, either with a low friction ring type TH, with a wide opening, or with a duralumin ring FrD
This textile loop is easily fixed on the deck plates and toe rail and, using the Nodus friction ring can haul all adjusting ropes.
- Equipment which easily replaces a pulley and can handle heavy static loads (opening ring) or dynamic loads (duralumin ring).
- For Dyneema® or non-abrasive ropes (opening ring) / all types of ropes (duralumin ring)
- For quick and easy fastening between two elements: mainsail foot, mast foot haulers, barber-hauler, in-hauler, lazy-jack, lazy-bag, hoist 2/1, etc.
Advantages
- The flexibility of textile ensures that the work is in the axis of the forces
- Easy to install Fastening larks head knot
- Rotation over 360°
- Excellent weight/strength ratio
- Reliable and maintenance free
