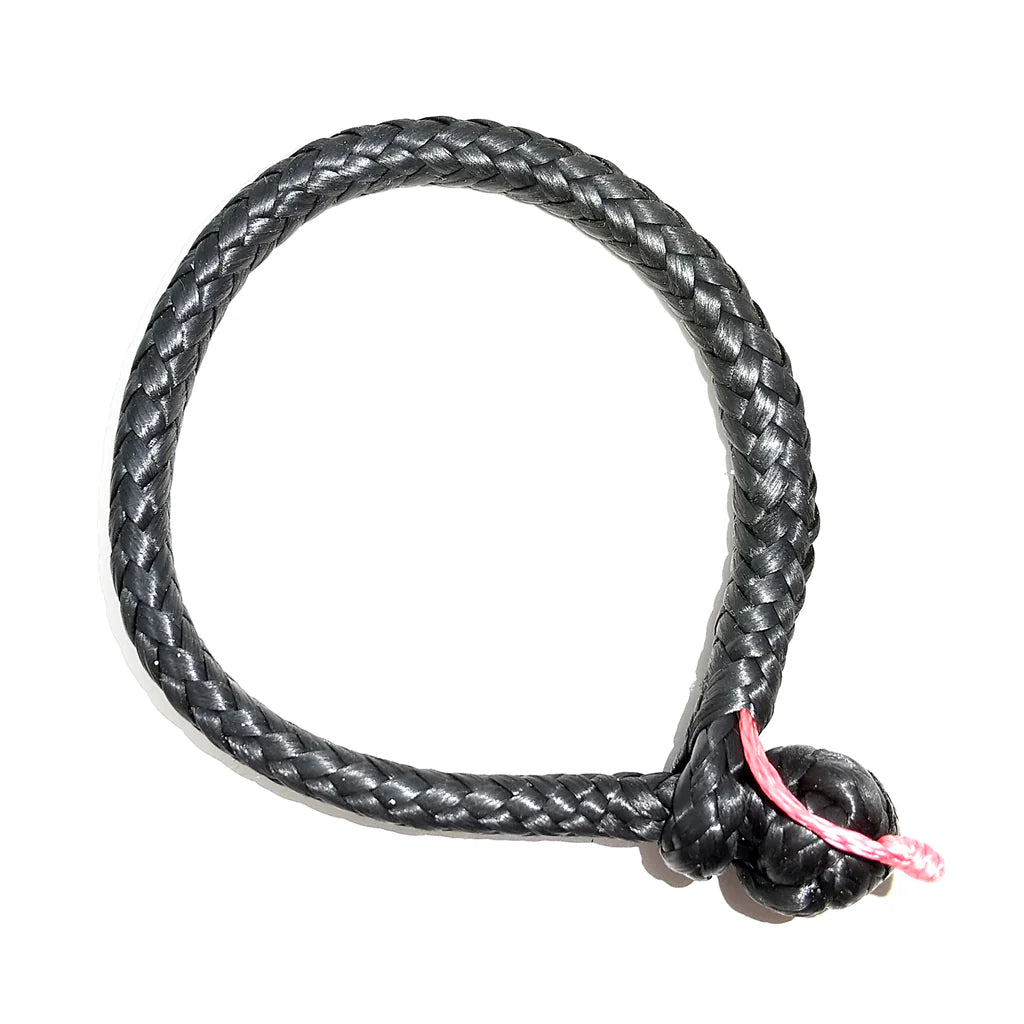

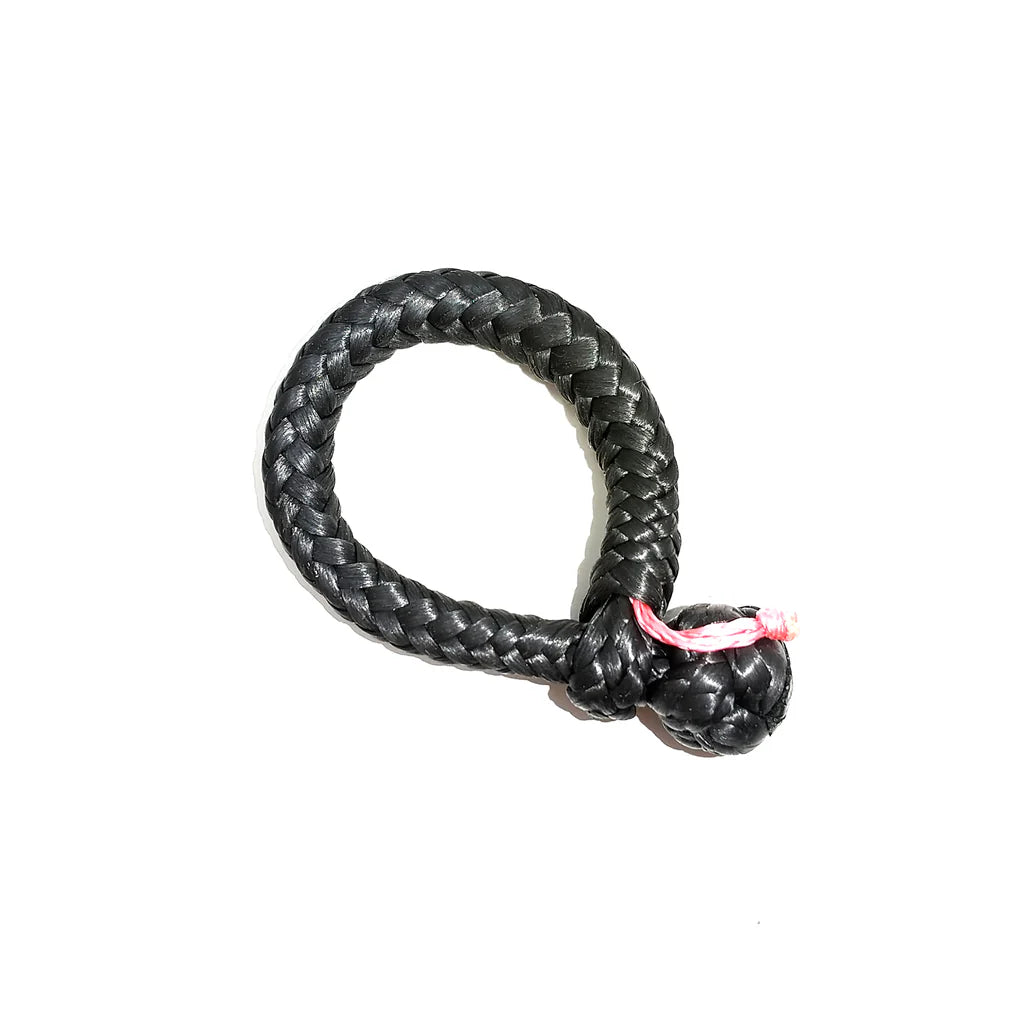

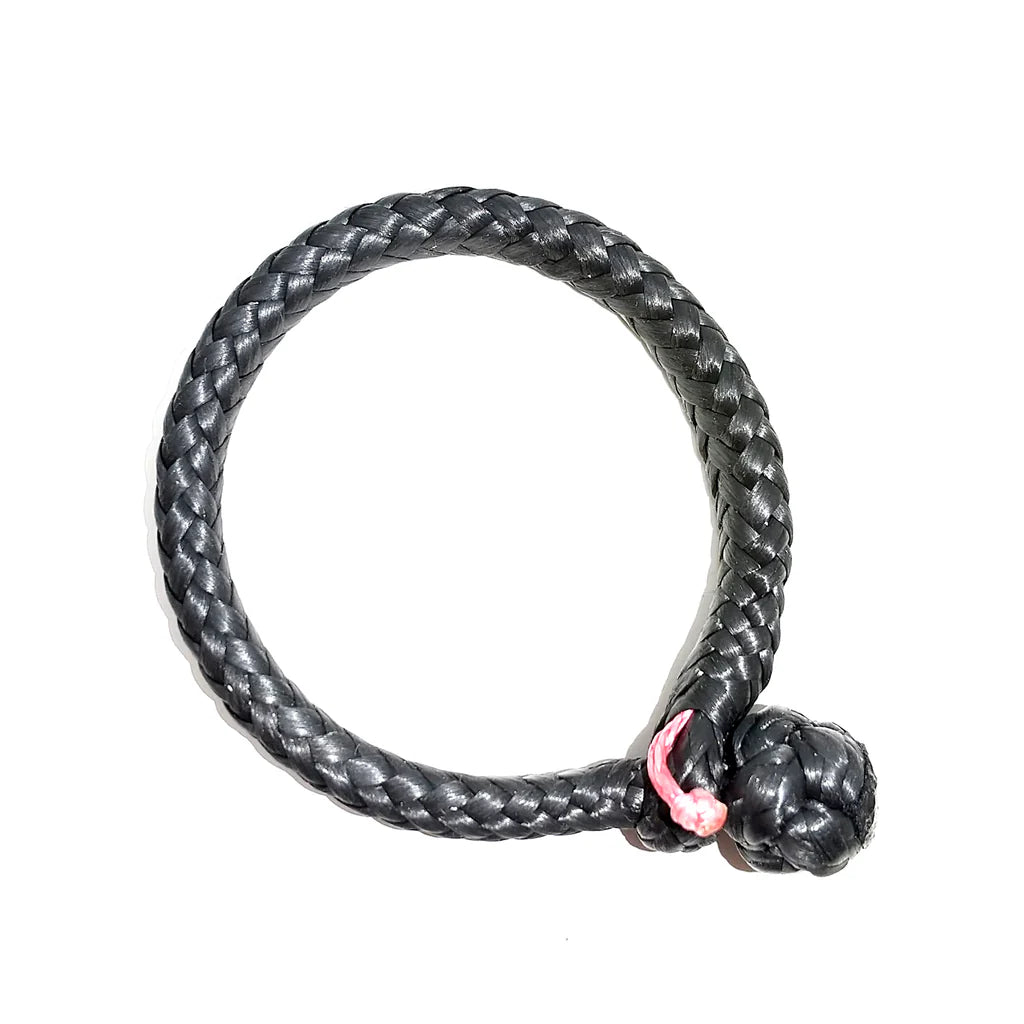

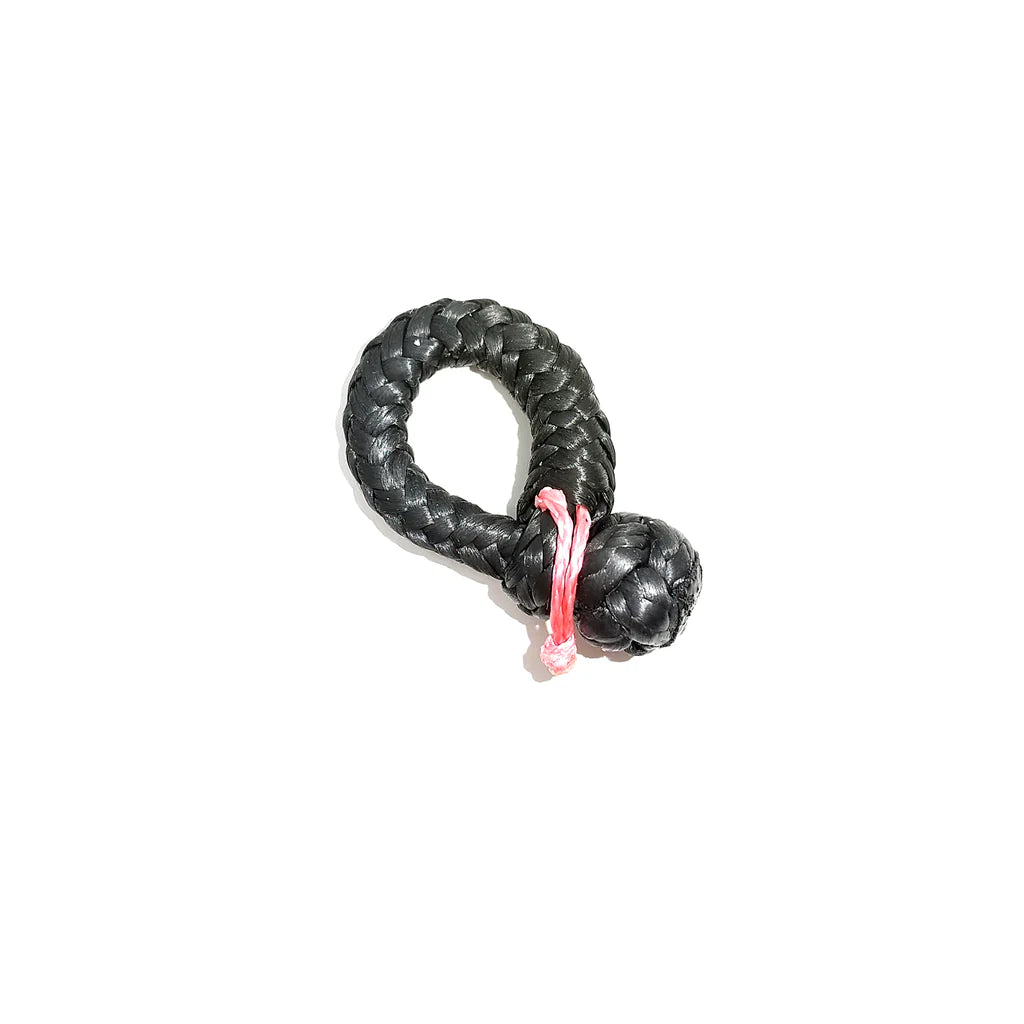

Robship Soft shackle
Regular priceFrom
$3.50
Unit price
Unavailable
Swipe horizontally to view full specifications →
| Size | Breaking Strength | Rope Size | D Diameter | F Thickness | H Diameter | L Loop Size |
|---|---|---|---|---|---|---|
| 2mm | 451 kg / 994 lb | 2mm / 5/64" | 3.5mm / 9/64" | 2.7mm / 7/64" | 8mm / 5/16" | 20 / 40 / 60 / 80 / 100mm 0.79 / 1.57 / 2.36 / 3.15 / 3.94" |
| 2.5mm | 850 kg / 1875 lb | 2.5mm / 3/32" | 4mm / 5/32" | 3mm / 1/8" | 9mm / 23/64" | 20 / 40 / 60 / 80 / 100mm 0.79 / 1.57 / 2.36 / 3.15 / 3.94" |
| 3mm | 1372 kg / 3025 lb | 3mm / 1/8" | 5mm / 3/16" | 4mm / 5/32" | 11mm / 7/16" | 20 / 40 / 60 / 80 / 100mm 0.79 / 1.57 / 2.36 / 3.15 / 3.94" |
| 4mm | 1635 kg / 3605 lb | 4mm / 5/32" | 6.5mm / 1/4" | 5mm / 3/16" | 15mm / 19/32" | 40 / 60 / 80 / 100 / 150mm 1.57 / 2.36 / 3.15 / 3.94 / 5.91" |
| 5mm | 2993 kg / 6598 lb | 5mm / 3/16" | 7.5mm / 19/64" | 5.5mm / 7/32" | 18mm / 23/32" | 40 / 60 / 80 / 100 / 150mm 1.57 / 2.36 / 3.15 / 3.94 / 5.91" |
| 6mm | 4023 kg / 8870 lb | 6mm / 1/4" | 9.5mm / 3/8" | 6.5mm / 1/4" | 22mm / 7/8" | 40 / 60 / 80 / 100 / 150mm 1.57 / 2.36 / 3.15 / 3.94 / 5.91" |
| 8mm | 5900 kg / 13000 lb | 8mm / 5/16" | 11.5mm / 7/16" | 9.5mm / 3/8" | 29mm / 1 3/16" | 60 / 80 / 100 / 150mm 2.36 / 3.15 / 3.94 / 5.91" |
| 10mm | 7000 kg / 15400 lb | 10mm / 3/8" | 15.5mm / 5/8" | 12mm / 15/32" | 37mm / 1 1/2" | 80 / 100 / 150mm 3.15 / 3.94 / 5.91" |
F: Flattened Rope Thickness: The thickness of material rope while being loaded. Flattened soft shackles may be able to go through the narrow slit such as the webbing slot.
L: Internal Flat Length: The internal length of the loop while being tensioned from the both ends. Our product size is shown in this value, NOT diameter.
Recommended Max. Working Load: We recommend to use our soft shackles within 20% to 50% of the breaking strength. The actual max. working load differs depending on the usage.
FEATURES
- UHMWPE Fiber
- Sizes available (please refer to the table)
- No fidding with bits that can fall out
- Extremely strong: UV stabilized and abrasion resistant Dyneema used
