Ronstan Series 100 Triggersnap Shackle with Small Bail
Ronstan Series 100 Triggersnap Shackle with Small Bail
Ronstan’s range of trigger released snap shackles features a latch mechanism for quick and intuitive one-handed operation. Release under load is easily accomplished by using a spike (available as RF1322) to safely actuate the trigger.
Heat treated, investment cast 15-5PH stainless steel components offer high strength and excellent corrosion resistance. Additionally, every Ronstan Triggersnap is individually proof-load tested and stamped with a production code for traceability.
The full Triggersnap offering is suitable for a wide range of applications, available in three sizes and with both large and small swivel bail options.
Features:
- High strength-to-weight ratio.
- Individually proof-load tested.
- Stamped with a production code for traceability.
- Heat treated, investment cast 15.5PH stainless steel for high strength and corrsion resistance.
- Small and large bail options.
- Use the aluminium spike to release easily while under load.
Specifications:
- M.W.L. (lb): 2205
- B.L. (lb): 4410
- Weight (oz): 2.1
Materials:
- Grade 316 stainless steel rivets and spring.
- Heat treated grade 15-5PH investment cast stainless steel body, bail, latch and trigger.
|

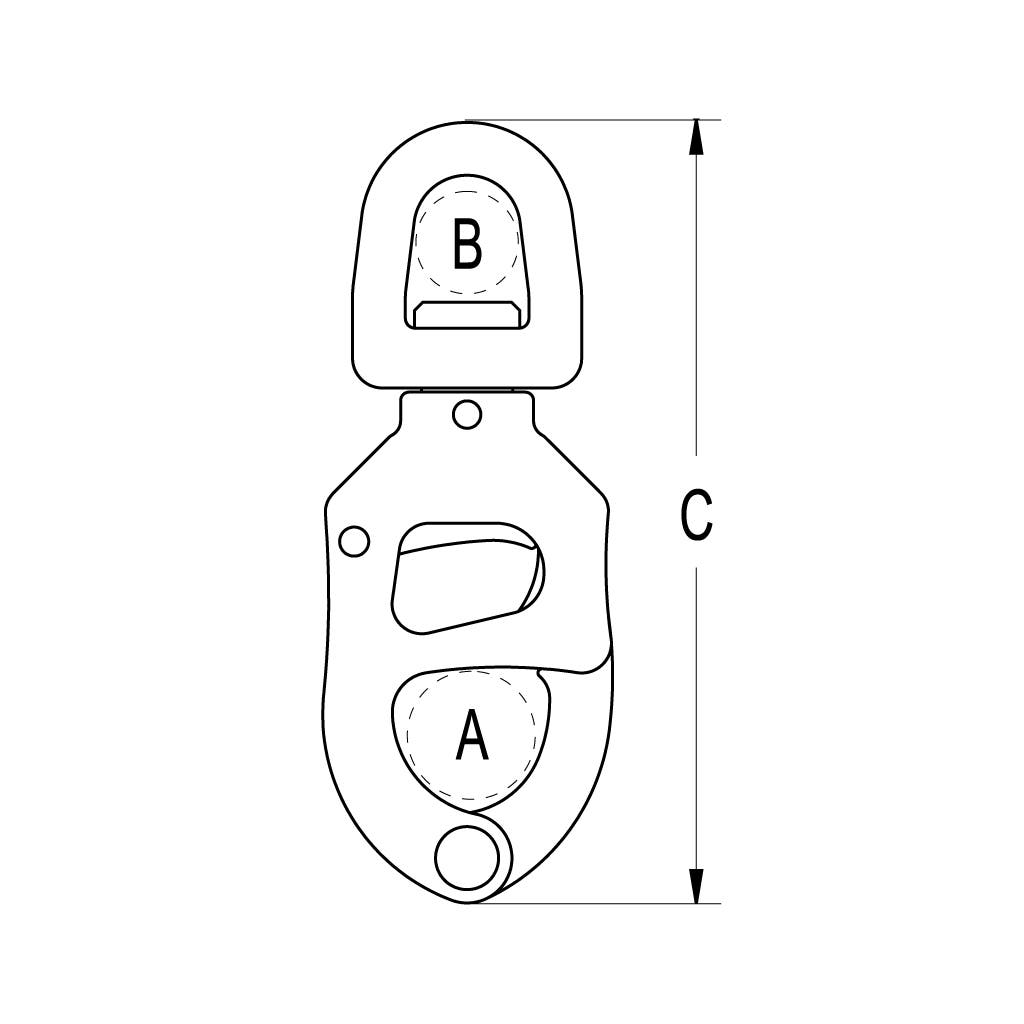

Technical Description |
||
| Features | Metric | Imperial |
| A | 14 mm | 9/16 in |
| B | 9 mm | 11/32 in |
| C | 80 mm | 3 5/32 in |
| M.W.L. | 1000 kg | 2205 lb |
| B. L. | 2000 kg | 4410 lb |
| Weight | 60 g | 2.1 oz |
