Ronstan Sailboat Hardware | SKU:
RONRC6190-1.5

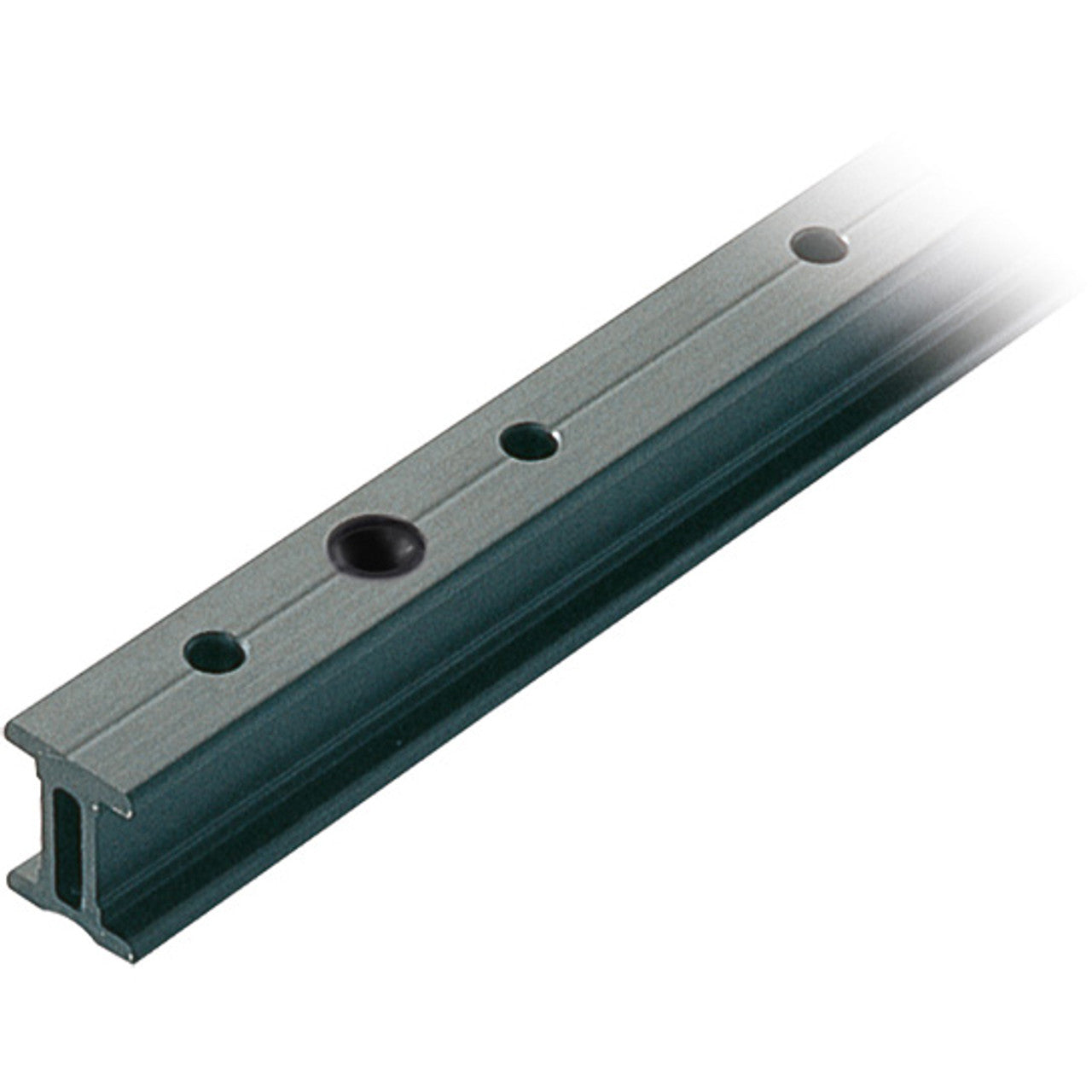

Ronstan Series 19 I-Beam Track, Black, 1496mm
Sale price
$96.10
Regular price
$129.69
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Ronstan Series 19 I-Beam Track, Black, 1496mm
Sale price
$96.10
Regular price
$129.69
Unit price
Unavailable
Ronstan Sailboat Hardware | SKU:
RONRC6190-1.5
Sale price
$96.10
Regular price
$129.69
Unit price
Unavailable
Manufacturer part #: RC6190-1.5
Technical Description
Series 19 I-Beam Black Track
3/8 in
9.8 mm
15/16 in
24 mm
3/4 in
19 mm
1/8 in
3.2 mm
4 ft 10 57/64 in
1496 mm
43.7 oz
1240 g
Manufacturer part #: RC6190-1.5
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners.
Track Fastenings
To suit 5 mm (3/16") countersunk fasteners at 100 mm (3 15/16") centres.
Stop Holes
50 mm (2") Centres.
Minimum Curve Radius
For 51 mm (2") car
Min horizontal 'A' curve radius = 400 mm (15 3/4"). Min horizontal 'B' curve radius = 400 mm (15 3/4").
For 86 mm (3 3/8") car
Min horizontal 'A' curve radius = 1200 mm (47 1/4"). Min horizontal 'B' curve radius = not suitable.
For 105mm (4 3/16") car
Min horizontal 'A' curve radius = 400 mm (15 3/4"). Min horizontal 'B' curve radius = not suitable.
Applications
Mainsheet and self-tacking jib travellers on dinghies and catamarans
Mainsheet systems on boats to 9 m (28 ft)
Material:Anodised aluminium alloy
Track is supplied with RC7250-INS insulating inserts to eliminate corrosion between track and fasteners.
Track Fastenings
To suit 5 mm (3/16") countersunk fasteners at 100 mm (3 15/16") centres.
Stop Holes
50 mm (2") Centres.
Minimum Curve Radius
For 51 mm (2") car
Min horizontal 'A' curve radius = 400 mm (15 3/4"). Min horizontal 'B' curve radius = 400 mm (15 3/4").
For 86 mm (3 3/8") car
Min horizontal 'A' curve radius = 1200 mm (47 1/4"). Min horizontal 'B' curve radius = not suitable.
For 105mm (4 3/16") car
Min horizontal 'A' curve radius = 400 mm (15 3/4"). Min horizontal 'B' curve radius = not suitable.
Applications
