Ronstan Sailboat Hardware | SKU:
RONRF44100

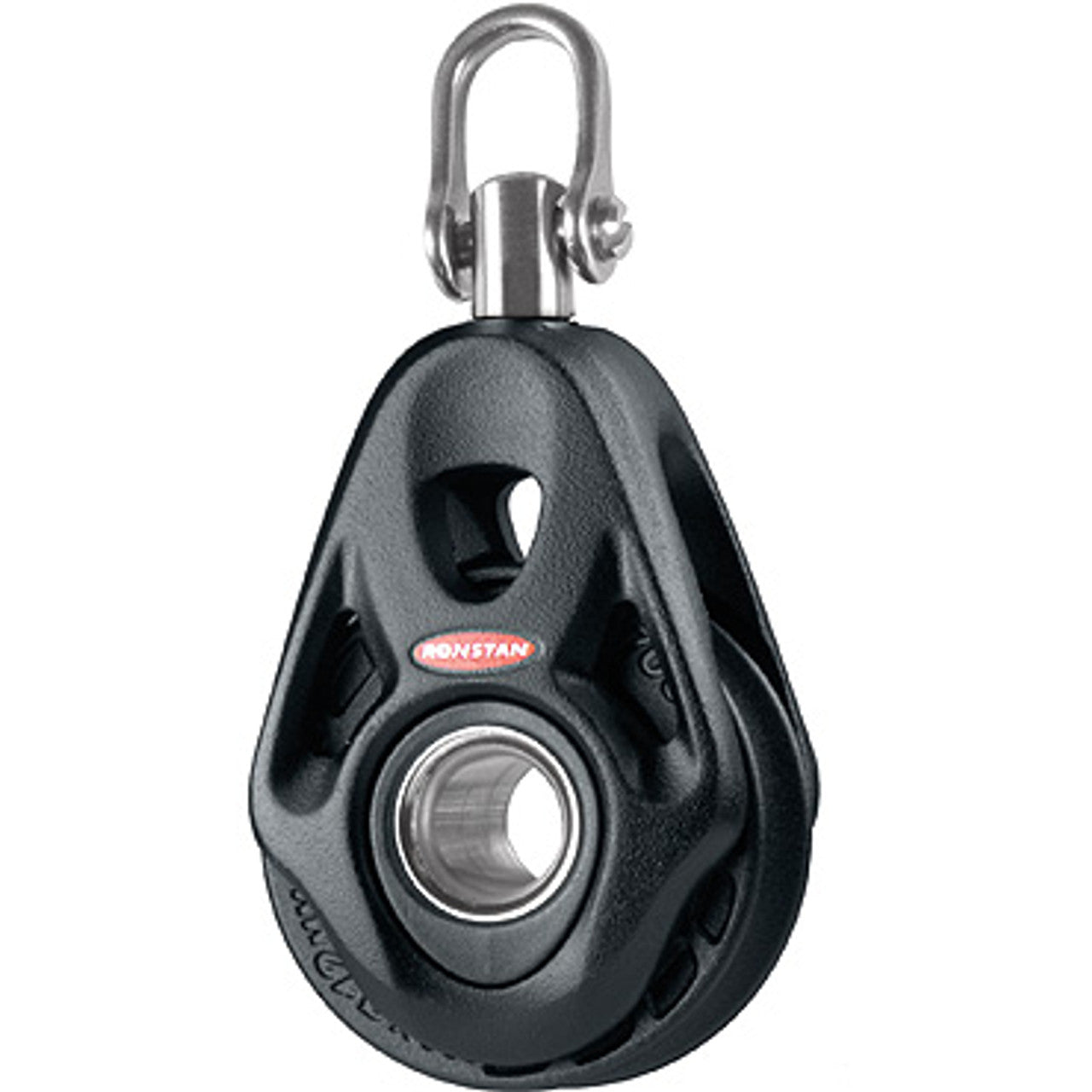

Ronstan Series 45 Core Block, Single
Sale price
$70.23
Regular price
$82.63
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Ronstan Series 45 Core Block, Single
Sale price
$70.23
Regular price
$82.63
Unit price
Unavailable
Ronstan Sailboat Hardware | SKU:
RONRF44100
Sale price
$70.23
Regular price
$82.63
Unit price
Unavailable
Manufacturer part #: RF44100 1
Technical Description
Series 60 Core Single Swivel Shackle Head Block
1 3/4 in
45 mm
1/2 in
12 mm
3/16 in
5 mm
1540 lb
700 kg
3090 lb
1400 kg
3.6 oz
104 g
Manufacturer part #: RF44100
High dynamic and static load capacity
Efficient 2-stage bearing system
Ball bearings to counteract side thrust loads
Class leading performance and sleek, contemporary styling
Durable aluminium alloy cheek plates
Central hub hole can be used as a becket take-off or tie-up point
Core Blocks2„¢ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Universal Bearing
Dynamic and high static load performance
The Ronstan Universal Bearing incorporates our proven 2-stage bearing system
Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.
Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.
Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.
Alloy cheek plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.
Applications
Ideal for mainsheet, halyard and spinnaker sheet applications on boats to 10 m (33 ft)
Various control line applications on larger yachts
Alloy sheave models are available for use with wire
Materials
Sheave: U.V. stabilised Acetal
Cheek body: Aluminium Alloy
Ball Bearings: High compression strength carbon black Acetal
Shackle, head post & hub: Grade 316 stainless steel
Core Blocks2„¢ are a true all round solution. A tuned 2-stage bearing system provides excellent performance across the full working load range with an integrated thrust bearing feature and the resilience to handle high dynamic or static loads. Acetal sheave, alloy cheeks and stainless fixings complete the durable package. For reliability and a long service life, these blocks are the right choice for sheets, halyards and control line applications for cruising and racing.
Universal Bearing
Dynamic and high static load performance
The Ronstan Universal Bearing incorporates our proven 2-stage bearing system
Stage 1 - Under moderate loads, Acetal ball bearings ensure minimum friction.
Stage 2 - Under heavy loads, where deformation of ball bearings alone would result in increased friction, a sliding Acetal bearing on a polished stainless steel race takes over, maintaining low friction performance.
Additionally the ball bearings are configured to act as a thrust bearing between the sheave and cheeks, preventing the sheave from rubbing on the cheeks and causing friction when the line lead in and out of the block isn't perfect. Particularly important for cheek blocks.
Alloy cheek plates
Block cheeks are manufactured from the highest quality alloy for maximum strength. Material optimisation and the cut-away design minimises weight and allows easy fresh water rinsing of salt and debris from the bearings. Cheek design has been further styled with flaring at the block throat and reduced gap between the cheek and sheave, minimising rope wear.
Applications
