Ronstan Sailboat Hardware | SKU:
RONRF51151
Ronstan Series 50 AP Cheek Block, Single
Sale price
$55.11
Regular price
$64.84
Unit price
Unavailable
Pickup available at 1830 East Interstate 30
Usually ready in 24 hours
Shipping and Delivery
Free shipping for orders of $98 or more (US Continental)
- Free shipping for orders of $750 or more (International)
- Add 3 business days to the standard shipping time for USPS deliveries.
- UPS and FedEx Ground usually take 2 to 5 business days for in-stock orders.
- UPS and FedEx deliver on Saturdays only for Friday overnight shipments, which may incur an extra
charge. - Orders that apply for free shipping will be delivered between 8 and 10 business days.
- International customers will be responsible for any applicable import duties,fees, or taxes.
- Oversized items like whisker poles, spinnaker poles, and tracks over 7 feet require freight shipping, with an estimated cost of $500 depending on the destination.These orders must be delivered to a
commercial address, such as a marina, yacht club, or boatyard where your sailboat is located.
A recipient must be present to sign for the delivery upon arrival,For more info, Click Here.
Ronstan Sailboat Hardware | SKU:
RONRF51151
Sale price
$55.11
Regular price
$64.84
Unit price
Unavailable
Manufacturer part #:RF51151
Technical Description

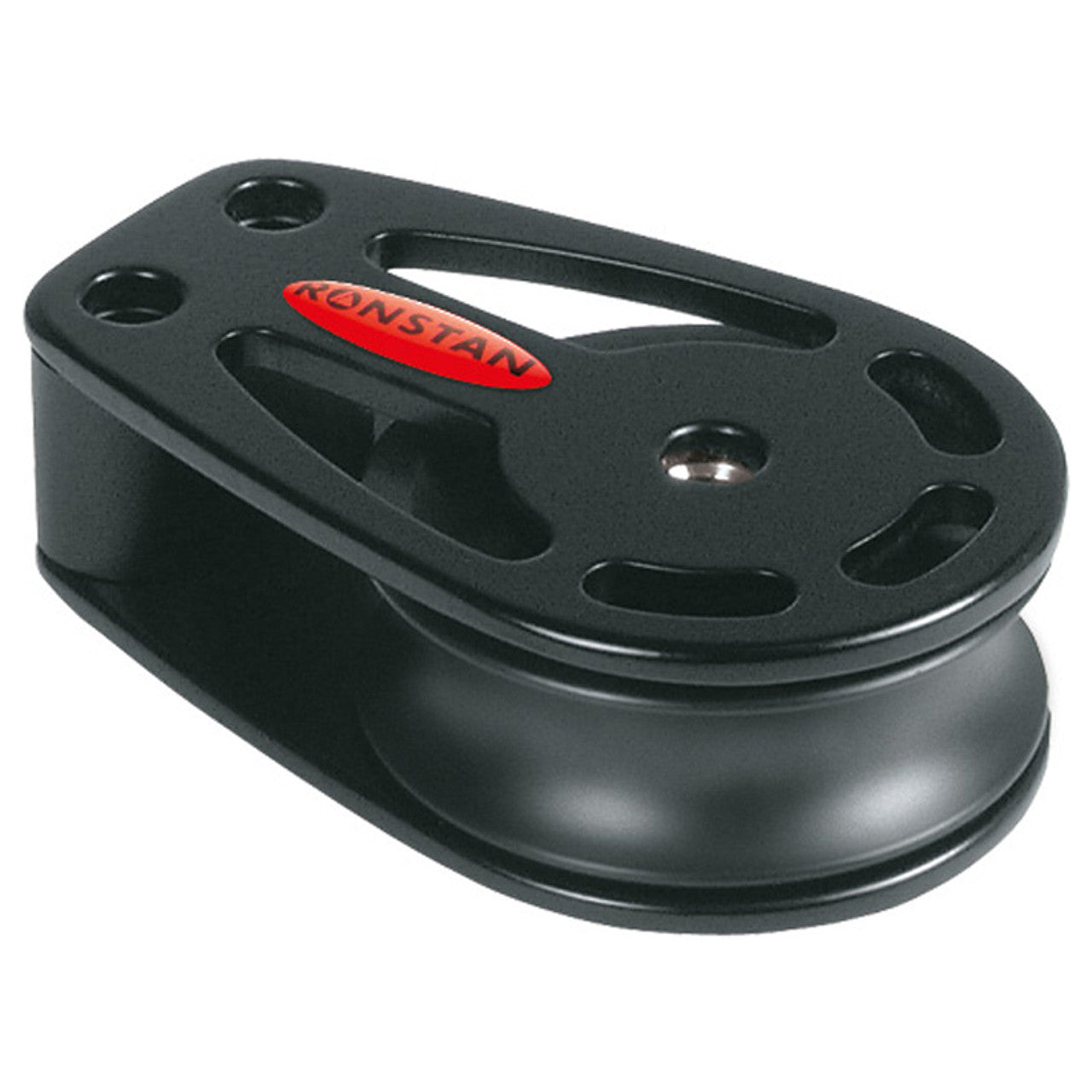

Series 50 AP Single Cheek Block
2 in
50 mm
1/2 in
12 mm
1100 lb
500 kg
2200 lb
1000 kg
3 oz
85 g
Manufacturer part #:RF51151
Lightweight design with cheek cut outs for easy bearing maintenance
Through hub mounting for maximum strength
All-purpose bearing system provides maximum static load capacity
Mount with 5 x 6 mm (1/4") fasteners, not supplied Deck organisers are an effective means of deflecting halyards and other control lines to winches, stoppers and cleats. Sheaves are made from impact resistant Acetal. The deck organisers have alloy cheeks, flared at rope entry and exit points to minimise chafing. All sizes can be stacked to create double versions - MWL of the top sheaves must not exceed 50% of the total block load rating.
ApplicationsLine deflection on larger yachts (depending on load and angle of deflection)
Halyard and control line deflection on boats to 11 m (36 ft)
Materials
Alloy upper and lower cheek plates
U.V. stabilised Acetal sheaves
Grade 316 stainless steel hubs
Applications
